- 7 -

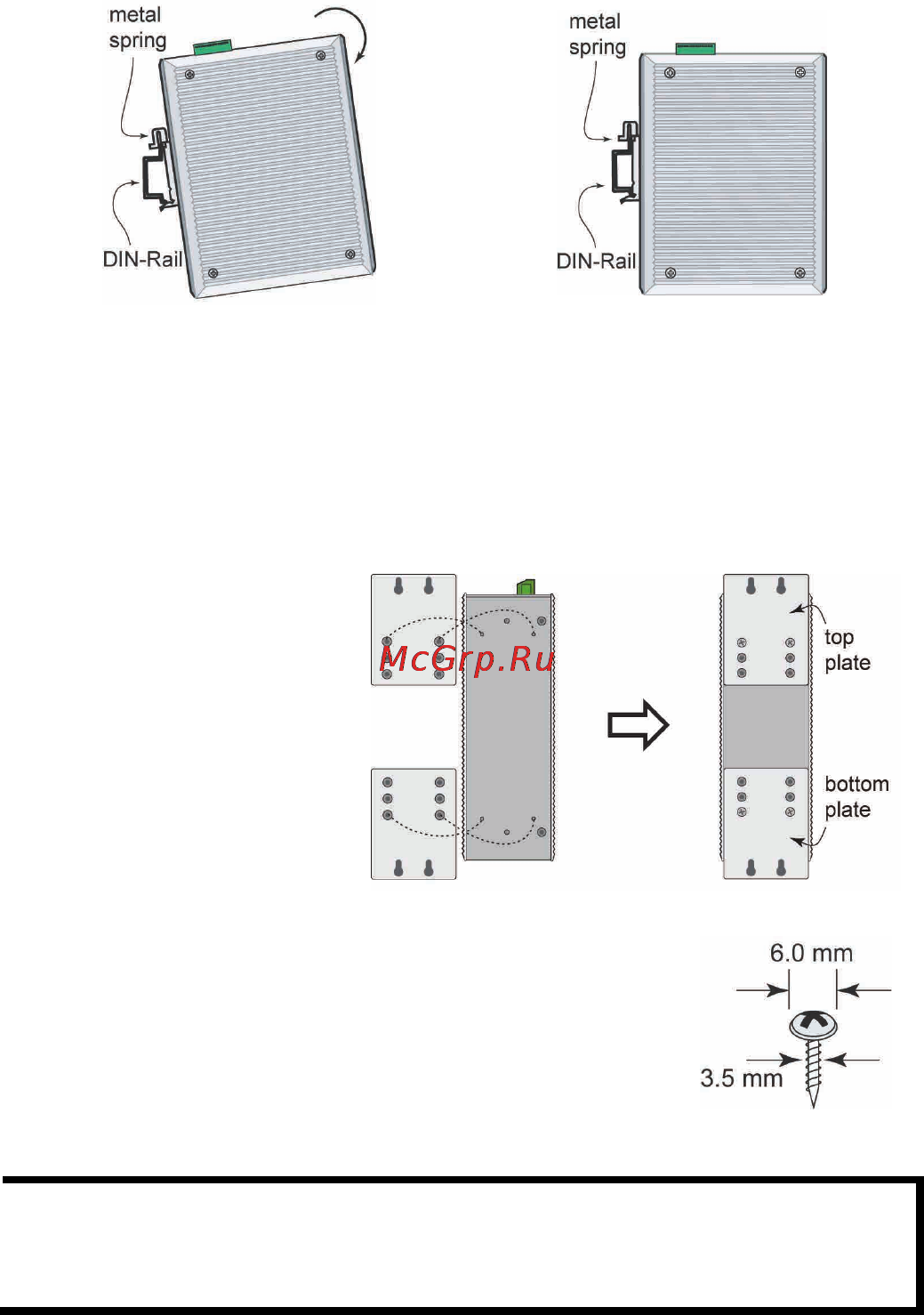

DIN-Rail Mounting
The aluminum DIN-rail attachment plate should already be fixed to the
back panel of the EDS when you take it out of the box. If you need to
reattach the DIN-rail attachment plate, make sure the stiff metal spring is
situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN
-rail into
the slot just
below the stiff metal
spring.
STEP 2:
The DIN
-rail attachment unit will
snap into place as shown below.
To remove the EDS from the DIN-rail, simply reverse Steps 1 and 2
above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the EDS on the
wall, as illustrated below.
STEP 1:
Remove the aluminum
DIN
-rail attachment plate
from the EDS’s rear panel,
and then attach the wall
mount plates, a
s shown in
the diagram below.
STEP 2:
Mounting the EDS on the wall requires 4 screws. Use
the
s
witch, with wall mount plates attached, as a guide
to mark the correct locations of the 4 screws. The
heads of the screws should be less than 6.0 mm
in
diameter, and the shafts should be less than 3.5
mm in
diameter, as shown in the figure at the right.
NOTE
Before tightening screws into the wall, make sure the screw head
and shank size are suitable by inserting the screw into one of the
keyholeshaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
