<DRB1254> 11
B PLAYER
L
R
L
R
CONTROL
AUDIO OUT
BA
ON OFF
MIX OUT
REMOTE CONTROL
BMIX
B PLAYER
DIGITAL OUT
DIGITAL OUT
INPUT
CD
R
L
L
R
MIX OUT
MIX
Stereo
amplifier
Player
Connect audio cable to CD or AUX input jacks. (Do
not connect to PHONO input jacks.)
CMX-5000 audio cable
Read before use (Connections)
CONTROL
AUDIO OUT
A PLAYER
A PLAYER
B PLAYER
L
R
L
R
L
R
CONTROL
AUDIO OUT
BA
ON OFF
MIX OUT
REMOTE CONTROL
A
BMIX
DIGITAL OUT
B PLAYER
DIGITAL OUT
DIGITAL OUT
COAXIALOPTICAL
DIGITAL INPUT
BA
ON OFF
B PLAYER
DIGITAL OUT
DIGITAL OUT
A PLAYER
DIGITAL OUT
CD recorder or other device with
digital input amplifier
Player
Digital signal
cable

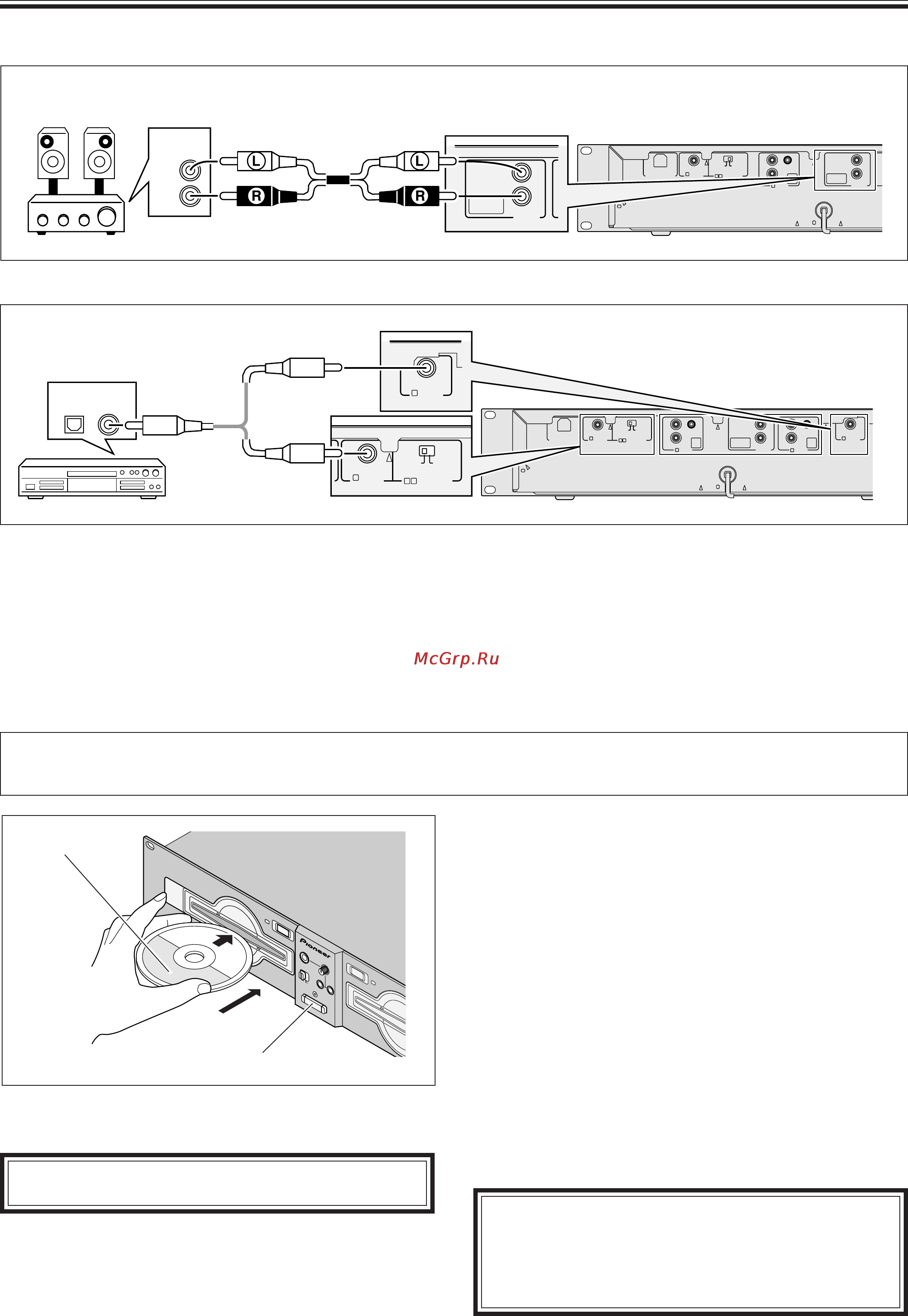

C Connecting the CMX-5000 to devices with digital input jacks
¶ When using the digital output jacks, the digital output switch (DIGITAL OUT) must be set to ‘ON’. Note that it is impossible to use
any of the DJ mixing or playback features (i.e., CUE, LOOP, RELOOP, TEMPO CONTROL, MASTER TEMPO, increase/reduce
speed by the jog dial or AUTO MIX PLAY) when using digital output. Also note that when using digital output pausing results not in
a start playback pause but in a silent pause instead.
4. Connecting the power cord
When all other cables have been connected, insert the plug of the power cord located on the rear panel of the CD player into a wall
power socket or into an amplifier reserve power socket.
B Connecting the CMX-5000 to stereo amplifiers (when not using a DJ mixer)
DISC LOADING/UNLOADING
1. Press power switch on front of player to turn power
on.
Do not force a disc into the unit when the power switch is set
to OFF as this may damage the disc and the unit.
2. Insert a disc.
¶ Hold the disc with label surface upwards, and insert into the
front panel disc insertion slot .
¶ When playing an 3 inch/8 cm disc, place the disc in a
commercially available CD adapter before inserting in the
insertion slot.
¶ Each insertion slot can only accommodate one disc at a time.
Never attempt to load more than one disc at the same time,
or attempt to load a second disc when one disc has already
been loaded.
¶ When loading a disc, do not placing any twisting force on the
disc, or try to force the disc into the slot. Also, do not attempt
to interrupt or defeat the motion of the disc when the player
begins to draw a disc into the slot or to eject a disc, since
damage to the disc or player could occur.
3. During playback, press the PLAY/PAUSE button
(3/8) or if a cue point has been specified press the
CUE button to back-cue before pressing the EJECT
button (0) to eject a disc
¶ When the EJECT button is pressed, disc rotation stops and
the disc is ejected from the loading slot.
¶ If the disc fails to be ejected when the EJECT button is
pressed, the accessory forced eject pin can be inserted into
the front-panel's forced eject hole to eject the disc. (see p. 5)
CAUTION:
Do not attempt to press a disc back into the slot when the EJECT
indicator appears. Pressing a disc back into the slot while the
EJECT indicator appears may cause the player to stop. In this case,
press the EJECT button again and wait until the EJECT indicator
goes out before reinserting the disc.
EJECT
DISC
0
EJECT
DISC
A
PLAYER
'
0
A•B AUDIO-OUT SELECT
M
O
N
I
T
O
R
M
I
N
M
A
X
P
H
O
N
E
S
A
•B A•B/
AUTO
MIX
P
L
A
Y
E
R
S
E
L
E
C
T
A
B
POWER
Label surface up
Insert straight
Power SW
