Tempo control slide:
Moving this dial in the positive (+) direction away from the
center position (normal playback tempo) causes the tempo to
become faster, and moving it in the negative (–) direction
causes the tempo to become slower.
5 Track search button (TRACK SEARCH 4, ¢) (see
p. 13)
6 Search button (SEARCH 1, ¡) (see p. 13)
7 Cue button (CUE) and indicator
Cueing point settings (see p. 13, 16)
Cueing point sampler (see p. 16)
Back cueing (see p. 16)
Cueing point adjust (see p. 16)
8 Play/Pause button (PLAY 3/PAUSE 8) and indica-
tor (see p. 12)
9 Display
0 Jog dial (+ FWD/– REV) (see p. 14)
- Auto mix play button (AUTO MIX PLAY) and indica-
tor (see p. 17)
Pressing this button causes auto mixing to be turned on or off
each time it is pressed.
= Play mode select button (PLAY MODE SELECT) (see
p. 17)
This button is used to select the auto mixing play mode and
to specify program settings.
~ Player select button (PLAYER SELECT) and indica-
tor (see p. 17)
This button is used to select discs when using auto mixing.
! BPM indicator (see p. 17)
@ NEXT indicator (see p. 17, 18)
# BPM/NEXT button (see p. 17, 18)
$ Instant change button (INSTANT CHANGE) and in-
dicator (see p. 18)
% Short time change button (SHORT TIME) and indi-
cator (see p. 18)
Pressing this button causes short time changing to be turned
on or off each time it is pressed.
^ BPM/TRACK display (BPM/TRACK) (see p. 17)
This display is used to display the track number and BPM
when using auto mixing or preprogrammed program
settings.
& BPM/TRACK dial (BPM/TRACK, PUSH ENTER)
(see p. 17, 18)
This dial is used to switch between different BPM values
when using BPM synchro playback and to select and confirm
track numbers when playing in program mode.
* Press down on the dial after making a selection to confirm
your choice. (Note that this does not include the switching
of BPM settings.)
* BPM synchro button (BPM SYNC) (see p. 17)
When BPM SYNC is turned on (i.e., when the BPM SYNC
button is lit), the tempo will be automatically changed so that
the number of beats per minute matches between tracks
mixing into each other. Pressing this button causes the BPM
synchro count feature to be turned on or off each time it is
pressed.
( Mix time control dial (MIX TIME) (see p. 18)
This dial is used to specify the mixing time when using the
mix button to perform cross fade mixing.
) Mix mode selection button (MIX MODE SELECT)
and indicator (see p. 18)
This button is used to select cut-in, zip, echo or cross fade
mixing as the type of mixing to be used when segueing
between tracks.
Read before use (Panel facilities)
TRACK
LOOP
TEMPO
BPM
1765432
131211109
17 18 19 201615
148
REMAIN
MS F
16
10
6
A.CUE
RELOOP
9 0
3
3
3
4
3
7
1 2
6 8
5

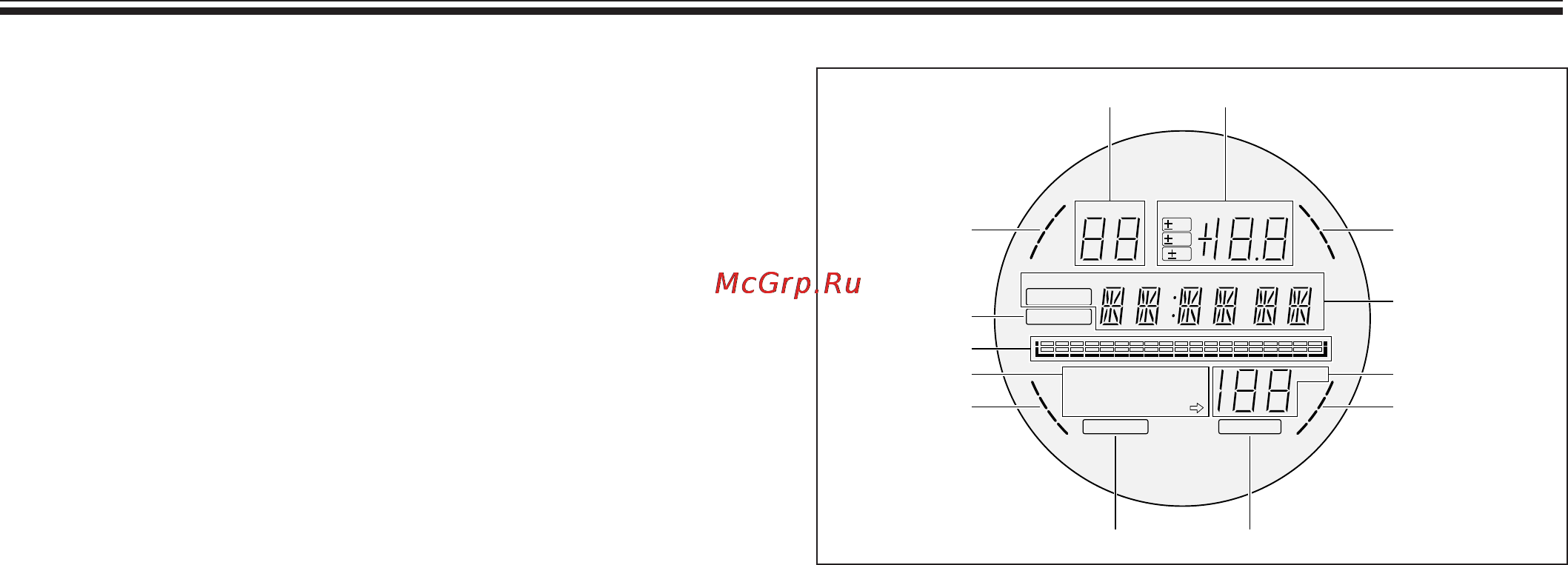

Display
1 Track number display
Displays the track number of the track currently being played.
2 Playback speed display
Tempo control range display (±6, ±10, ±16)
Displays the variable range mode specified using the tempo
control slide.
Tempo change rate display
Displays the rate of change of the tempo as specified using
the tempo control slide.
3 Auto mixing playback player display
The display on the side of the player currently in operation will
flash.
4 Auto cueing indicator (A. CUE)
Lights up when auto cueing is turned on.
5 Playback position display
Used to display a full-scale bar graph for the track being
played to make it possible to get an intuitive feel of the
elapsed and remaining play time.
÷ Display as it appears when displaying elapsed time:
All indicators unlit and then indicators light up in
sequence from left
÷ Display as it appears when displaying remaining time:
All indicators lit and then indicators are turned off in
sequence from left
÷ Display as it appears when there are less than 30 seconds
remaining in a track:
Slow flashing
÷ Display as it appears when there are less than 15 seconds
remaining in a track:
Rapid flashing
6 Track number calendar display
The number corresponding to the track currently being
played is lit. The right-facing arrow is lit for tracks with a track
number of 21 or higher.
Programmed track numbers are lit, and the light for each
number for tracks which have already been played are turned
off once the tracks are played.
7 Time display
Used to display the elapsed playback time (when the remain
indicator is unlit) or the remaining playback time (when the
remain indicator is lit) of the current track in minutes (M),
seconds (S), and frames (F). Note that the amount of time
remaining is displayed by default when the power is first
turned on.
8 BPM display
Used to display the number of BPM for the current track.
Note that depending on the track there may be times when
the BPM counter is unable to count the number of BPM.
9 Looping indicator (LOOP)
Lights up when playing back in loop mode.
0 Relooping indicator (RELOOP)
Lights up when recording a loop.
