100Base-FX or 1000Base-X Fiber Port
The Fiber ports on the EDS-210A series are SFP type slots, which support
both 100Base-FX and 1000Base-X speed fiber transceiver to work
properly. Moxa provides complete transceiver models for various distance
requirements.
Multi-mode:
1000BaseSX
0 to 550 m, 850 nm (50/125μm, 400MHz*km)
0 to 275 m, 850 nm (62.5/125μm, 200MHz*km)
1000BaseLX
0 to 1100 m, 1310 nm (50/125μm, 800MHz*km)
0 to 550 m, 1310 nm (62.5/125μm, 500MHz*km)
Single-mode:
1000BaseLX
0 to 10 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))
1000BaseLHX
0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))
1000BaseZX
0 to 80 km, 1550 nm (9/125μm, 19 PS/(nm*km))
Multi-mode:
100BaseFx
0 to 5 km, 1300 nm (50/125μm, 800MHz*km)
0 to 4 m, 1300 nm (62.5/125μm, 500MHz*km)
Single-mode:
100BaseFx
0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))
The concept behind the LC port and cable is quite straightforward.
Suppose you are connecting devices I and II. Unlike electrical signals,
optical signals do not require a circuit in order to transmit data.
Consequently, one of the optical lines is used to transmit data from device
I to device II, and the other optical line is used to transmit data from
device II to device I, for full-duplex transmission.
Remember to connect the Tx (transmit) port of device I to the Rx (receive)
port of device II, and the Rx (receive) port of device I to the Tx (transmit)
port of device II. If you make your own cable, we suggest labeling the two
sides of the same line with the same letter (A-to-A and B-to-B, as shown
below, or A1-to-A2 and B1-to-B2).

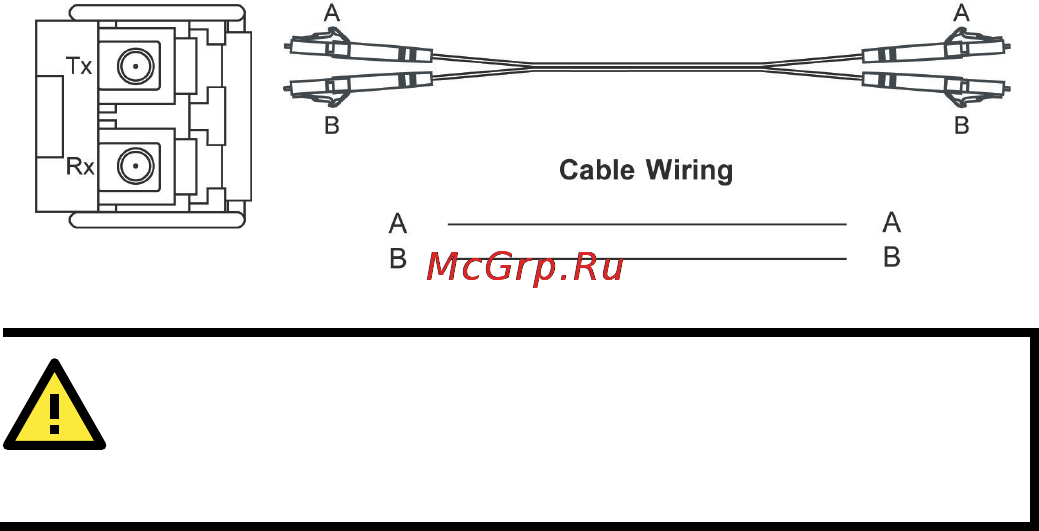

LC-Port Pinouts
LC-Port to LC-Port Cable Wiring
ATTENTION
This is a Class 1 Laser/LED product. To avoid
causing serious
damage to your eyes, do not stare directly into the Laser Beam.
Redundant Power Inputs
Both power inputs can be connected simultaneously to live DC power
sources. If one power source fails, the other live source acts as a backup,
and automatically supplies all of the EDS’s power needs.
