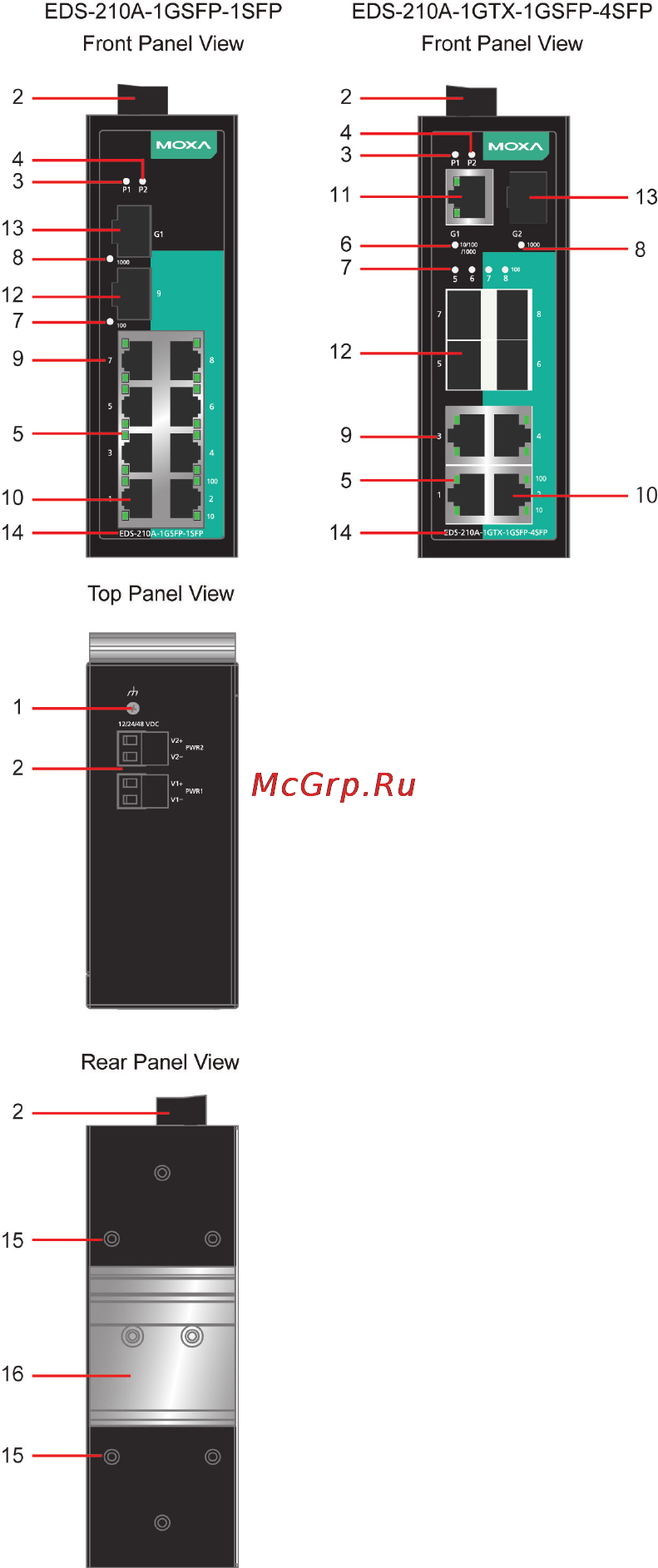

Panel Layout of EDS-210A-1GSFP-1SFP/

EDS-210A-1GTX-1GSF-4SFP

1. Grounding screw

2. Terminal block for power input

(PWR1, PWR2) and relay output

3. Power input PWR1 LED

4. Power input PWR2 LED

5. TP port’s 10/100 Mbps LED

TP port’s 10/100/1000 Mbps LED

7. SFP port's 100Mbps LED

8. SFP port's 1000Mbps LED

9. Port number

10.

10/100 BaseT(X) Port

11.

10/100/1000 BaseT(X) Port

12.

100Base SFP slot

13.

1000Base SFP slot

14.

Model Name

15.

Screw hole for wall mounting kit

16.

DIN rail kit
