- 5 -

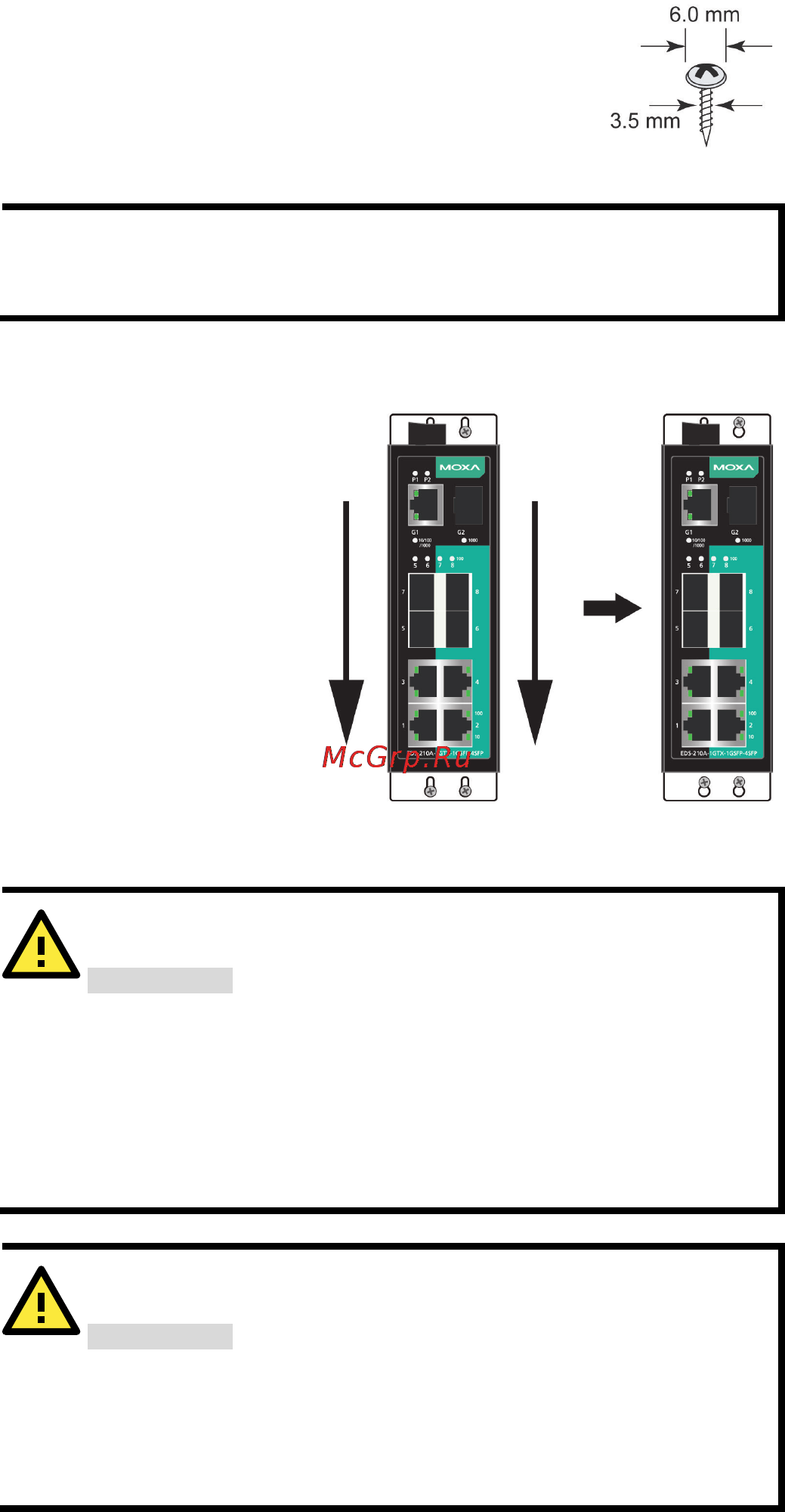

STEP 2:
Mounting
the
EDS on the wall requires 4 screws. Use the
s
witch, with wall mount plates attached, as a guide to
mark the correct locations of the 4 screws. The heads of
the screws should be less than 6.0 mm in diameter, and
the shafts should be less than 3.5
mm in diameter, as
shown in the figure at the right.
NOTE
Before tightening screws into the wall, make sure the screw head
and shank size are suitable by inserting the screw into one of the
keyhole-shaped apertures of the wall mounting plates.
Do not tighten the screws all the way in — leave about 2 mm to allow
room for sliding the wall mount panel between the wall and the screws
STEP 3:
Once the screws are fixed in
the wall, insert the four
screw heads through the
large parts of the
keyhole
-shaped apertures,
and then slide the EDS
downwards, as indicated.
Tighten the four screws for
added
stability.
Wiring Requirements
WARNING
Safety First!
Turn
the power off before disconnecting modules or wires. The
proper
power supply voltage is listed on the product label. Check
the voltage of your power source to make sure you are using the
correct voltage. Do NOT use a voltage greater than
what is
specified on the product label.
These devices must be supplied by a
n AELV
source as defined in
the Low Voltage Directive 2006/95/EC and 2004/108/EC.
WARNING
Safety First!
Calculate the maximum possible current in each power wire and
common wire. Observe all electrical codes dictating the
maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could
overheat, causing serious damage to your equipment.
