- 11 -

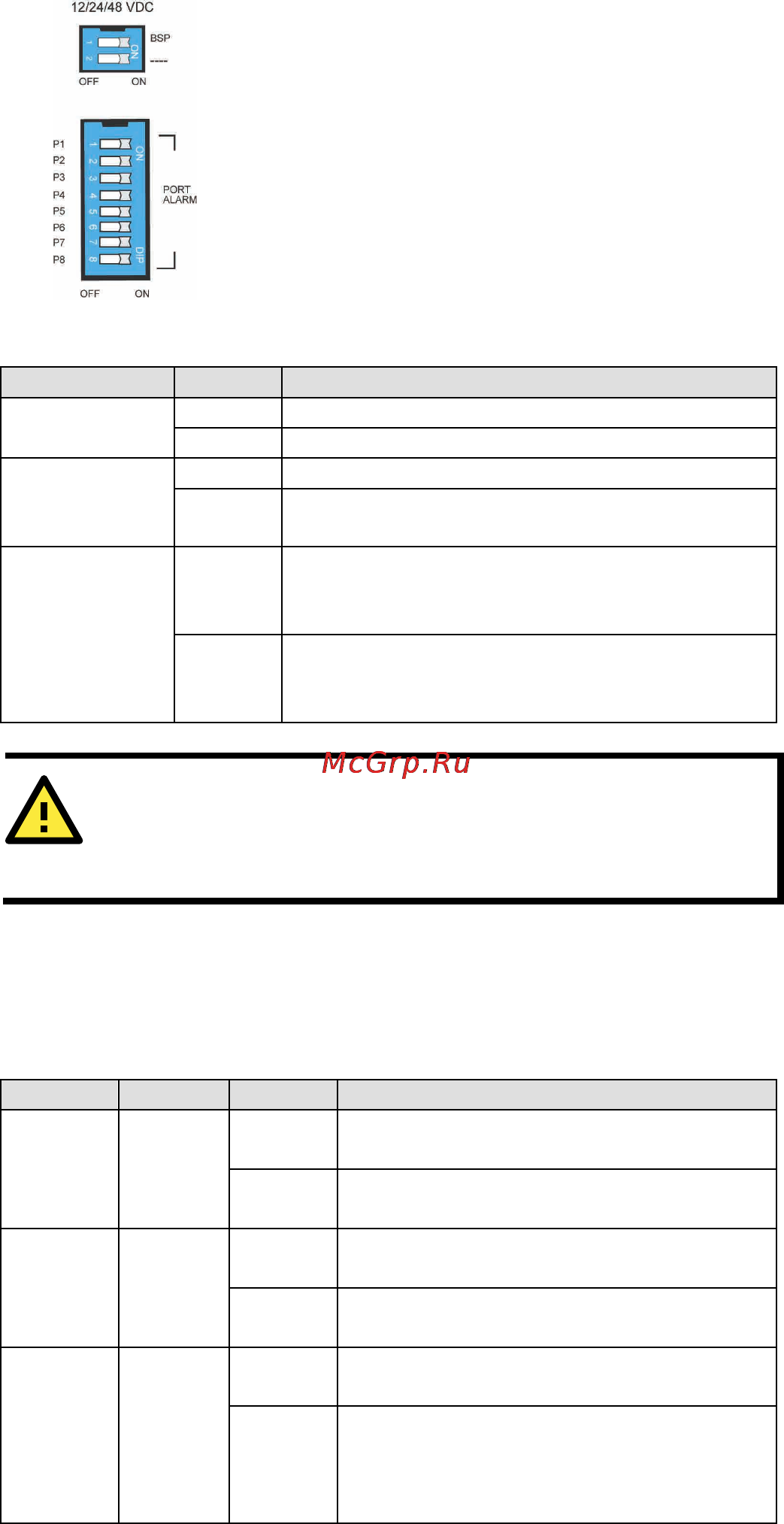

DIP Switch Settings
The default setting for each DIP switch is OFF. The
following table explains the effect of setting the
DIP switches to the ON positions.
DIP Switch
Setting
Description
BSP
ON
Enables broadcast storm protection
OFF
Disables broadcast storm protection
----
refers to Jumbo
Frame
ON
Enables jumbo frame function
OFF Disables jumbo frame function
PORT Alarm
ON
Enables the corresponding PORT Alarm. If the
port’s link fails, the relay will form an open
circuit and the fault LED will light up.
OFF
Disables the corresponding PORT Alarm. The
relay will form a closed circuit and the Fault
LED will never light up.
ATTENTION
To actively update DIP switch settings, power off and then power
on the EDS.
LED Indicators
The front panel of the Moxa EtherDevice Switch contains several LED
indicators. The function of each LED is described in the table below.
LED
State
Description
PWR1 AMBER
On
Power is being supplied to power input
PWR1
Off
Power is not being supplied to power
input PWR1
PWR2 AMBER
On
Power is being supplied to power input
PWR2
Off
Power is not being supplied to power
input PWR2
FAULT RED
On
When the corresponding PORT alarm is
enabled, and the port’s link is inactive.
Off
When the corresponding PORT alarm is
enabled and the port’s link is active, or
when the corresponding PORT alarm is
disabled.
