www.moxa.com
info@moxa.com
Industrial Ethernet Solutions

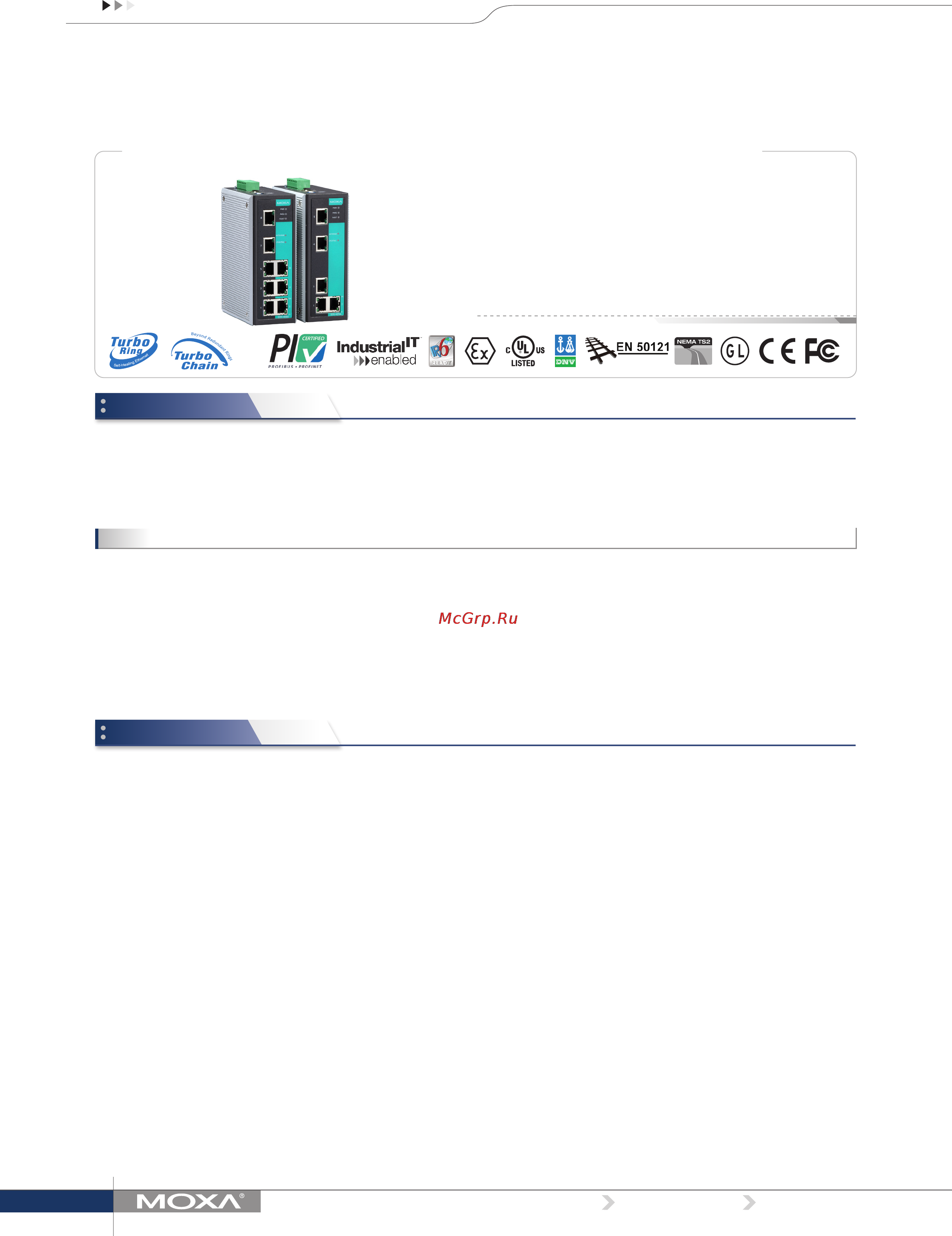

EDS-405A/408A-PN Series
Introduction
The EDS-405A/408A-PN are 5 and 8-port managed Ethernet switches
with PROFINET enabled. With embedded PROFINET, the PN switches
can be easily integrated into the Simatic Step 7 engineering tool. It
is more convenient for automation engineers to configure through
Step 7 and monitor with automation HMIs. The EDS-405A/408A-PN
• Command Line Interface (CLI) for quickly configuring major
managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device
management and monitoring
• PROFINET v2 conformance class B, GSD (General Station
Description) v2, and SIMATIC STEP 7 device icons are available
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), and RSTP/STP for network redundancy
Specifications
5 and 8-port managed Ethernet switches with PROFINET enabled
switches with fast booting, Turbo Ring and Turbo Chain fast-recovery
technology, can optimize PROFINET network performance. Moxa’s
PROFINET switches also support a variety of useful management
functions, such as IGMP snooping, IEEE 802.1Q VLAN, QoS, port
mirroring, SNMP, bandwidth management, and warning by email or
relay.
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management
security
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
Features and Benefits
› PROFINET enabled by default
› PROFINET I/O parameters, I/O cyclic data, DCP, DHCP, fully
compatible with PROFINET Real-Time
› PROFINET GSD file, SIMATIC STEP 7 device icons are included
› Port mirroring, QoS, IEEE 802.1Q VLAN, and port-based VLAN
supported
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP
Option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP,
IPv6, NTP Server/Client
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP
MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
MAC Table Size: 2 K (EDS-405A-PN), 8 K (EDS-408A-PN)
Packet Buffer Size: 1 Mbit
Interface
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
Console Port: RS-232 (RJ45 connector)
DIP Switches: Turbo Ring, Master, Coupler, Reserve
LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL,
10/100M
Alarm Contact: 1 relay output with current carrying capacity of 1 A @
24 VDC
Power Requirements
Input Voltage: 24 VDC (12 to 45 VDC), redundant dual inputs
Input Current:
EDS-405A-PN: 0.24 A @ 24 V
EDS-408A-PN: 0.26 A @ 24 V
Overload Current Protection: Present
Connection: 1 removable 6-contact terminal block
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Packing Size: 19.2 x 16.8 x 9.3 cm
Weight: 650 g
Packing Weight:
EDS-405A-PN series: 1140 g
EDS-408A-PN series: 1220 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
