Ordering Information
Available Models Port Interface
Standard Temperature
(0 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100BaseT(X)
100BaseFX
Multi-mode,
SC Connector
Multi-mode,
ST Connector
Single-mode,
SC Connector
EDS-405A/408A EDS-405A/408A-T
5/8 – – –
EDS-405A/408A-MM-SC EDS-405A/408A-MM-SC-T
3/6 2 – –
EDS-405A/408A-MM-ST EDS-405A/408A-MM-ST-T
3/6 – 2 –
EDS-405A/408A-SS-SC EDS-405A/408A-SS-SC-T
3/6 – – 2
EDS-408A-3M-SC EDS-408A-3M-SC-T
5 3 – –
EDS-408A-3M-ST EDS-408A-3M-ST-T
5 – 3 –
EDS-408A-3S-SC EDS-408A-3S-SC-T
5 – – 3
EDS-408A-2M1S-SC EDS-408A-2M1S-SC-T
5 2 – 1
EDS-408A-1M2S-SC EDS-408A-1M2S-SC-T
5 1 – 2
EDS-405A/408A-EIP/PN EDS-405A/408A-EIP/PN-T
5/8 – – –

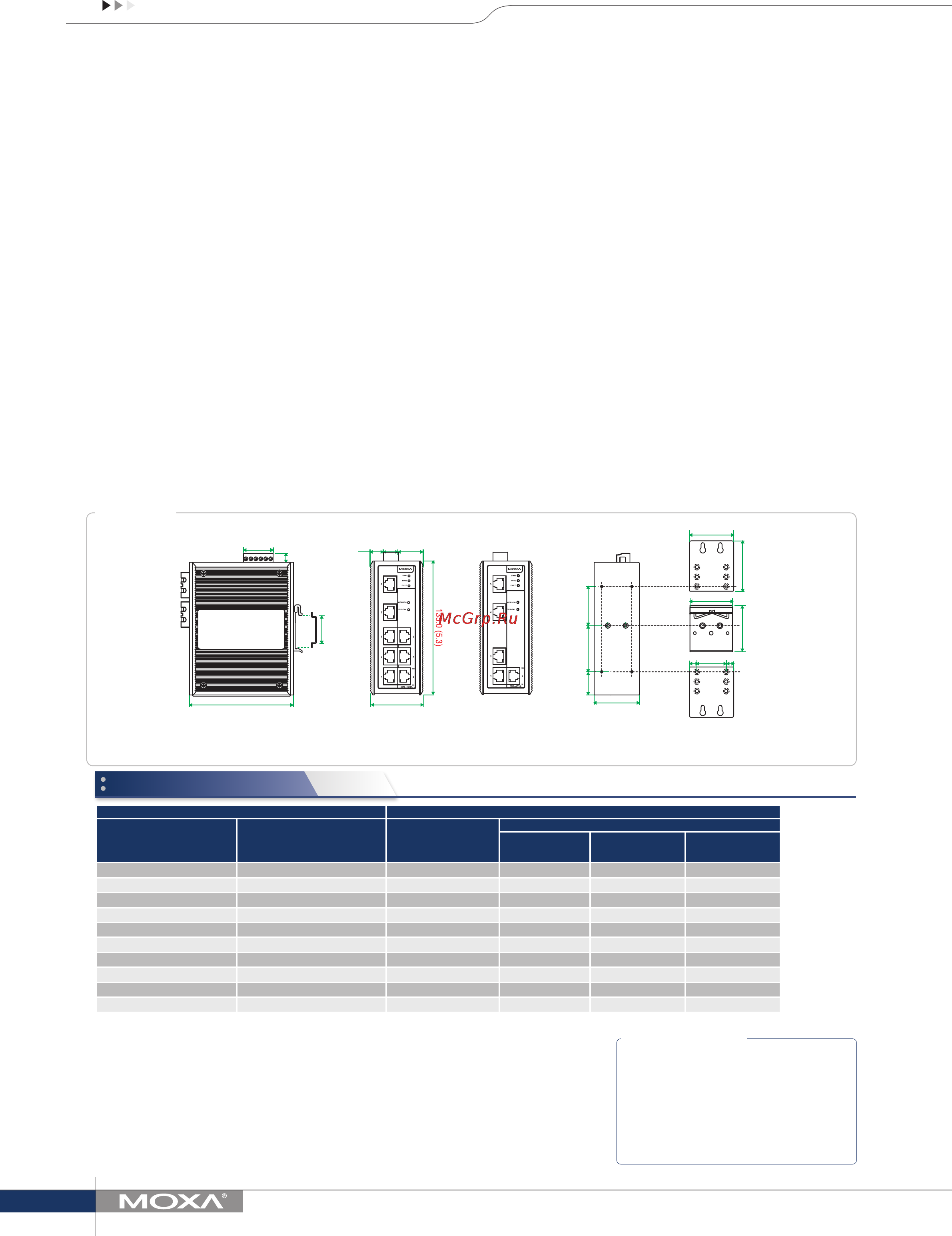

Side View
Front View
Rear View DIN rail/Panel
Mounting Kit
Dimensions
Unit: mm (inch)
30.0 (1.2)
13.1
(0.5)
15.1
(0.6)
25.4
(1.0)
9.0 (0.4)
105.0 (4.1)
53.6 (2.1)
45.8 (1.8)
46.0 (1.8)
44.0 (1.7)
30.5 (1.2)
66.8 (2.6) 48.3 (1.9)
7.8
(0.3)
7.8
(0.3)
35.0 (1.4)
39.5 (1.6) 46.6 (1.8) 23.6 (0.9)
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000
nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C
operating temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
RK-4U: 4U-high 19” rack mounting kit
WK-46: Wall mounting kit
Package Checklist
• EDS-405A or EDS-408A switch
• RJ45 to DB9 console port cable
• Protective caps for unused ports
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
Power Requirements
Input Voltage: 24 VDC (12 to 45 VDC), redundant dual inputs
Input Current:
EDS-405A, EDS-405A-EIP/PN: 0.24 A @ 24 V
EDS-405A-MM/SS: 0.32 A @ 24 V
EDS-408A, EDS-408A-EIP/PN: 0.26 A @ 24 V
EDS-408A-MM/SS: 0.35 A @ 24 V
EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V
Overload Current Protection: Present
Connection: 1 removable 6-contact terminal block
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight:
EDS-405A/408A series: 650 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: EDS-405A/408A series: UL 508, UL 60950-1*
EDS-408A series: CSA C22.2 No. 60950-1, EN 60950-1
Hazardous Location: EDS-405A/408A series: UL/cUL Class 1 Division
2 Groups A/B/C/D*
EDS-405A series: ATEX Zone 2 Ex nA nC IIC T4 Gc
EDS-408A series: ATEX Zone 2 Ex nA nC op is IIC T4 Gc, IECEx*
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA TS2
Rail Traffic: EDS-408A series: EN 50121-4
Marine:
EDS-405A/408A series: DNV, GL
EDS-408A-3M/3S/2M1S/1M2S series: DNV, GL, LR, ABS, NK
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
*Does not apply to the EDS-408A-3M/3S/2M1S/1M2S series.
MTBF (mean time between failures)
Time:
EDS-405A Series: 392,000 hrs
EDS-408A Series: 1,102,845 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
