EDS-505A/508A Series

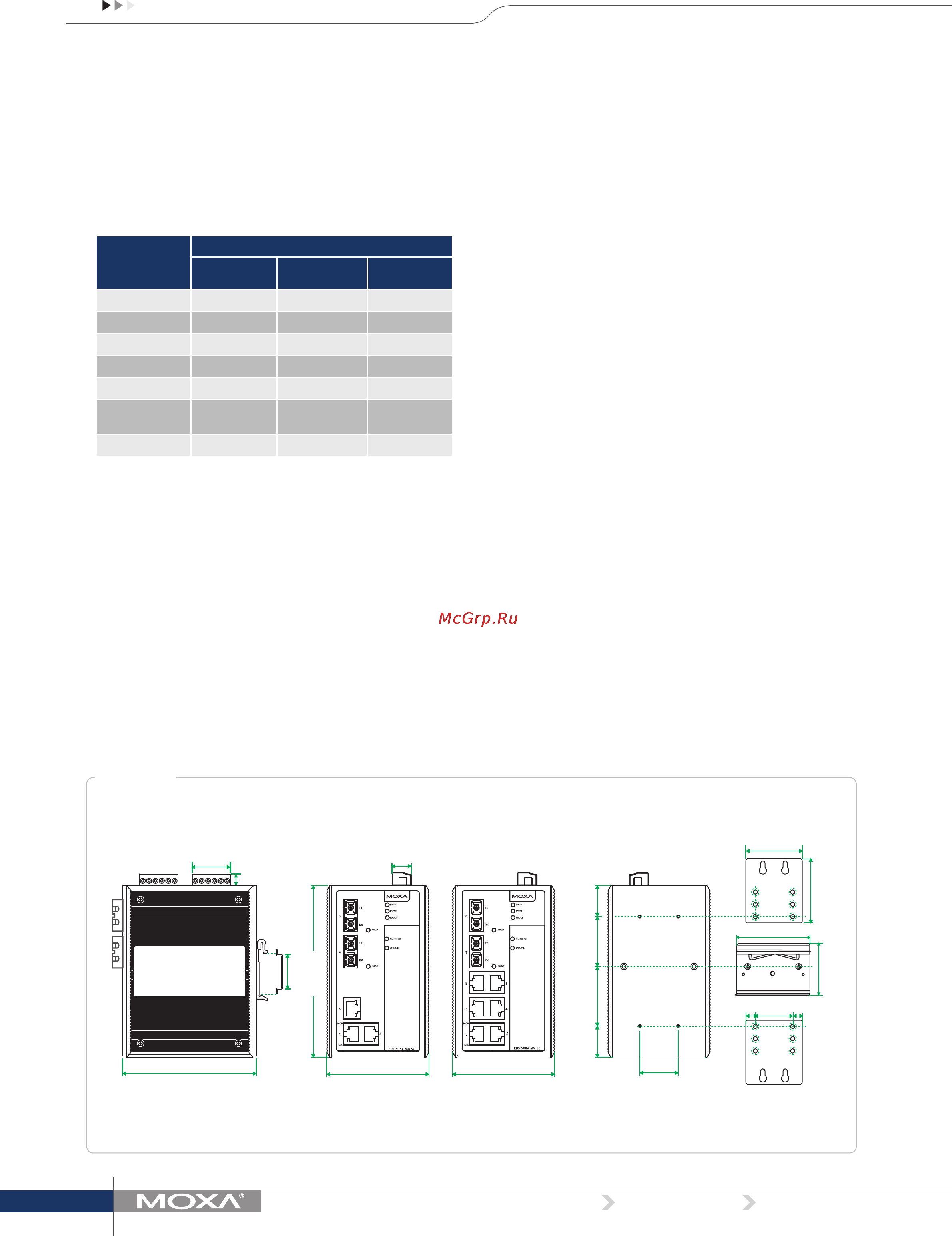

Side View Front View Rear View DIN-Rail/Panel
Mounting Kit
30.0 (1.2)
30.0 (1.2)
15.0 (0.6)
46.0 (1.8)
70.0 (2.8)
30.5 (1.2)
7.8
(0.3)
7.8
(0.3)
105.0 (4.1) 80.2 (3.2)80.2 (3.2)
35.0 (1.4)
135.0 (5.3)
24.3
(1.0)
9.0 (0.4)
66.8 (2.6)
48.3 (1.9)
24.6
(1.0)
39.4 (1.6) 46.8 (1.8)
LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL,
10/100M
Alarm Contact: 2 relay outputs with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 2 inputs with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Optical Fiber
100BaseFX
Multi-mode Single-mode
Single-mode,
80 km
Wavelength 1300 nm 1310 nm 1550 nm
Max. TX -10 dBm 0 dBm 0 dBm
Min. TX -20 dBm -5 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm -34 dBm
Link Budget 12 dB 29 dB 29 dB
Typical Distance
5 km
a
4 km
b
40 km
c
80 km
d
Saturation -6 dBm -3 dBm -3 dBm
a. 50/125 μm, 800 MHz*km fiber optic cable
b. 62.5/125 μm, 500 MHz*km fiber optic cable
c. 9/125 μm single-mode fiber optic cable
d. 9/125 μm single-mode fiber optic cable (80 km)
Power Requirements
Input Voltage: 24 VDC (12 to 45 VDC), redundant dual inputs
Input Current:
EDS-505A:0.24A@24V
EDS-505A-MM/SS:0.35A@24V
EDS-508A:0.26A@24V
EDS-508A-MM/SS:0.36A@24V
EDS-516A:0.41A@24V
EDS-516A-MM:0.51A@24V
Overload Current Protection: Present
Connection: 2 removable 6-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions:
EDS-505A/508ASeries:80.2x135x105mm
(3.16 x 5.31 x 4.13 in)
EDS-516ASeries:94x135x142.7mm(3.7x5.31x5.62in)
Weight:
EDS-505A/508ASeries:1040g
EDS-516ASeries:1586g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
StandardModels:0to60°C(32to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
Hazardous Location:
UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN61000-4-2(ESD)(EDS-505A/508A:Level3;EDS-516A:Level2),
EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,
EN 61000-4-8
Marine: DNV, GL
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time:
EDS-505ASeries:352,000hrs
EDS-508ASeries:339,000hrs
EDS-516ASeries:247,000hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Dimensions
Unit:mm(inch)
