- 14 -
Reset Button
The Reset Button supports two functions. One is to reset the Ethernet
switch to factory default settings by pressing and holding the Reset
button for 5 seconds. Use a pointed object, such as a straightened paper
clip or toothpick, to depress the Reset button. This will cause the STATE
LED to blink once a second. After depressing the button for 5 continuous
seconds, the STATE LED will start to blink rapidly, indicating that factory
default settings have been loaded and you can release the reset button.
When the ABC-02-USB is connected to the EDS-518E Ethernet switch, the
reset button allows quick configuration and backs up log files to the
ABC-02-USB. Press the Reset button on top of the EDS-518E; the
Ethernet switch will start backing up the current system configuration
files and event logs to the ABC-02-USB.
NOTE
Do NOT power off the Ethernet switch when loading default
settings.
Turbo Ring DIP Switch Settings
The EDS-518E switches are plug-and-play managed redundant Ethernet
switches. The proprietary Turbo Ring protocol was developed by Moxa to
provide better network reliability and faster recovery time. Moxa Turbo
Ring’s recovery time is less than 300 ms (Turbo Ring) or 20 ms (Turbo
Ring V2)—compared to a 3- to 5-minute recovery time for commercial
switches—decreasing the possible loss caused by network failures in an
industrial setting.
The 4 Hardware DIP Switches located on the top panel of the EDS-518E
can be used to easily configure Turbo Ring in only a few seconds. If you do
not want to use a hardware DIP switch to configure Turbo Ring, you can
use a web browser, Telnet, or serial console to disable the DIP switches.
NOTE
R
efer to the
Turbo Ring
section in the
Communication
Redunda
ncy User’s Manual for detailed information about the
settings and usage of Turbo Ring and Turbo Ring V2.

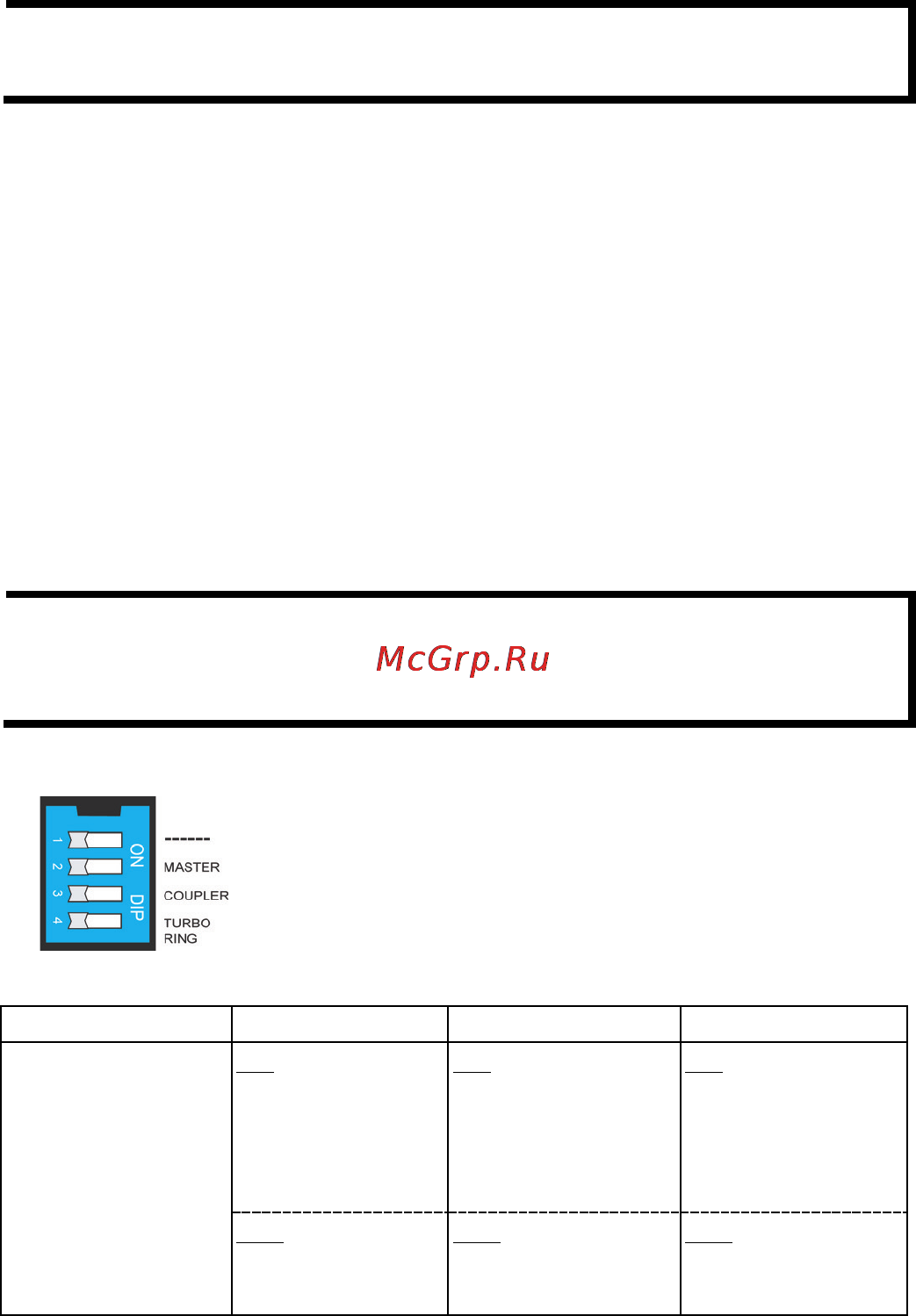

EDS-518E Series DIP Switches
The default setting for each DIP Switch is OFF. The
following table explains the effect of setting the DIP
Switch to
the ON position.
“Turbo Ring” DIP Switch Settings
DIP 1
DIP 2
DIP 3
Reserved for
future use.
ON: Enables this
EDS as
the Ring
Master.
ON: Enables the
default “Ring
Coupling” and
“Ring Coupling
Control” ports.
DIP switch 2 and
3 to configure
“Turbo Ring”
OFF: This EDS
will not be the
Ring Master.
OFF: Do not use
this EDS as the
ring coupler.
OFF: DIP switch
1, 2, and
