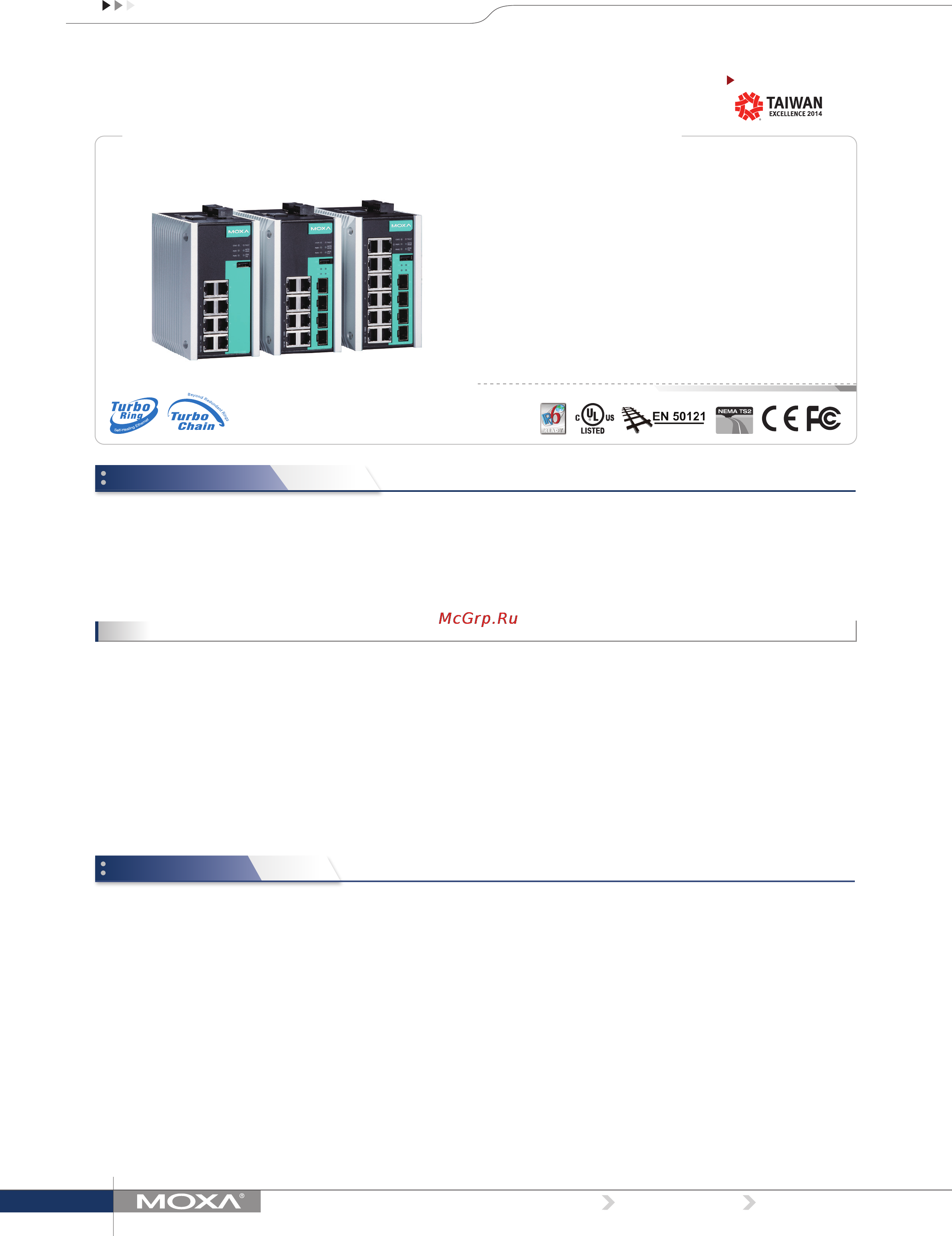

1
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
The EDS-G500E series is equipped with 8/12/16 Gigabit Ethernet ports
and up to 4 fiber optic ports, making it ideal for upgrading an existing
network to Gigabit speed or building a new full Gigabit backbone.
Gigabit transmission increases bandwidth for higher performance
and transfers large amounts of triple-play services across a network
quickly. Redundant Ethernet Turbo Ring, Turbo Chain, RSTP/STP,
• Command Line Interface (CLI) for quickly configuring major
managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for
precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP, PROFINET, and Modbus/TCP protocols for
device management and monitoring
• Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port function for blocking unauthorized access based on MAC
address
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• ABC-02-USB (Automatic Backup Configurator) for system
configuration backup/restore and firmware upgrade.
8G/12G/16G-port full Gigabit managed Ethernet switches
and MSTP increase system reliability and the availability of your
network backbone. The EDS-G500E series is designed especially for
communication demanding applications, such as video and process
monitoring, ITS, and DCS systems, all of which can benefit from a
scalable backbone construction.
Features and Benefits
Introduction
Specifications
› Up to 12 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports
(EDS-G516E)
› Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
› RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to
enhance network security
› Easy network management by web browser, CLI, USB serial
console, ABC-02-USB, MXconfig, and Windows utility
› EtherNet/IP, PROFINET, and Modbus/TCP protocols supported for
device management and monitoring
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3, DHCP
Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP,
RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP,
PROFINET, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTPv2,
IPv6, NTP Server/Client
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 256
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbit
Interface
Fiber Ports: 100/1000BaseSFP slot
RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed
Console Port: USB-serial console (Type B connector)
Storage Port: USB storage (Type A connector for ABC-02-USB)
EDS-G508E/G512E/G516E Series
Award-winning Product
