Moxa EDS-G516E-4GSFP-T [2/6] Ordering information
![Moxa EDS-G516E-4GSFP-T [2/6] Ordering information](/views2/1195693/page2/bg2.png)
2
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
EDS-G508E/ G512E/ G516E Series
Available Models Gigabit Ethernet Port Interface
Standard Temperature
(-10 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100/1000BaseT(X) 100/1000BaseSFP*
EDS-G508E EDS-G508E-T
8 –
EDS-G512E-4GSFP EDS-G512E-4GSFP-T
8 4
EDS-G516E-4GSFP EDS-G516E-4GSFP-T
12 4
*The EDS-G500E series supports up to 4 100/1000BaseSFP slots. See the SFP-1G, SFP-1G Copper, and SFP-1FE
datasheets for Gigabit/Fast Ethernet SFP module product information.
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-02-USB: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C
operating temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
WK-51-01: Wall mounting kit
RK-4U: 4U-high 19” rack mounting kit
DIP Switches: Turbo Ring, Master, Coupler, Reserve
LED Indicators: PWR1, PWR2, FAULT, STATE, 10/100/1000M, MSTR/
HEAD, CPLR/TAIL
Alarm Contact: 1 relay output with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 1 input with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Button: Reset button
Power Requirements
Input Voltage: 12/24/48/-48 VDC, redundant dual inputs
Input Current:
EDS-G516E:24VDC/0.46A
EDS-G512E:24VDC/0.4A
EDS-G508E:24VDC/0.33A
Overload Current Protection: Present
Connection: 2 removable 2-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions: 79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)
Weight: 1440 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
StandardModels:-10to60°C(14to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508
Hazardous Location: UL/cUL Class 1 Division 2 (pending),
ATEX Zone 2 (pending)
EMI: FCC Part 15 Subpart B Class A, EN 61000-6-4 (Industrial)
EMS:
EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
IEEE 1613
Traffic Control: NEMA TS2
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time:
EDS-G508ESeries:808,970hrs
EDS-G512E-4GSFPSeries:816,823hrs
EDS-G516E-4GSFPSeries:805,491hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

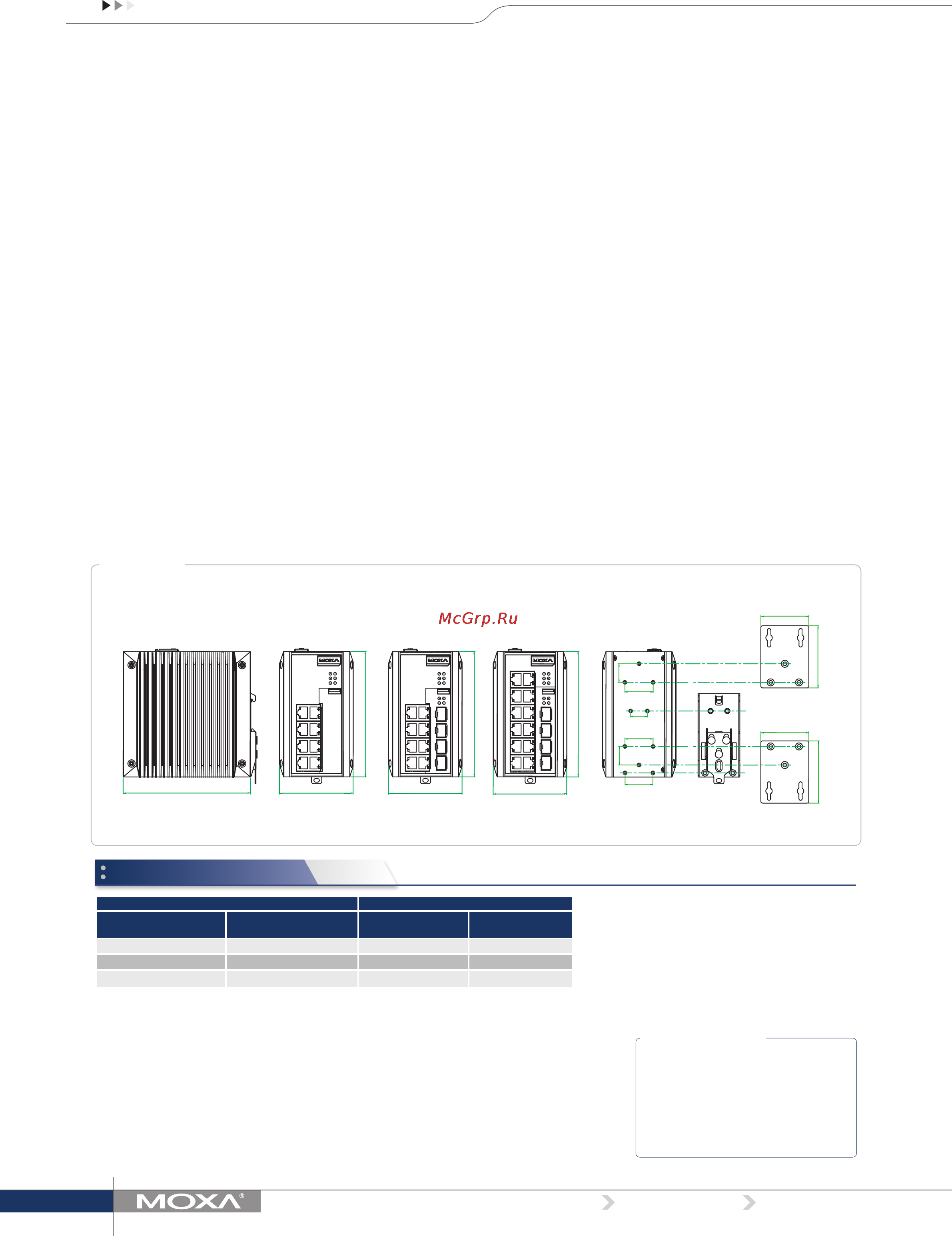

Dimensions
Unit:mm(inch)
Package Checklist
• EDS-G500E switch
• USB-IF certified cable
• Protective caps for unused ports
• Documentation and software CD
• Warranty card
• Hardware installation guide (printed)
Side View
Front View
Rear View DIN-Rail/Panel Mount Kit
135 (5.3)
135 (5.3)
135 (5.3)
20 (0.8)20 (0.8)
67 (2.6)67 (2.6)
79.2 (3.1) 79.2 (3.1) 79.2 (3.1)137 (5.4)
30.5 (1.2)
30 (1.2)
51.6 (2)
51.6 (2)
30.5 (1.2)
18 (0.7)
STATE
PWR1
PWR2
8
6
4
2
EDS-G508E
7
5
3
100010/100
1
FAULT
MSTR/
HEAD
CPLR/
TAIL
STATE
PWR1
PWR2
USB
11
9
USB
8
12
11
10
9
16
15
14
13
6
4
2
EDS-G512E-4GSFP
7
5
3
100010/100
1
8
6
4
2
EDS-G516E-4GSFP
7
109
12
11
5
3
100010/100
1
FAULT
MSTR/
HEAD
CPLR/
TAIL
STATE
PWR1
PWR2
FAULT
MSTR/
HEAD
CPLR/
TAIL
12
10
15
13
16
14
USB
Ordering Information
EDS-G508E EDS-G512E-4GSFP EDS-G516E-4GSFP
