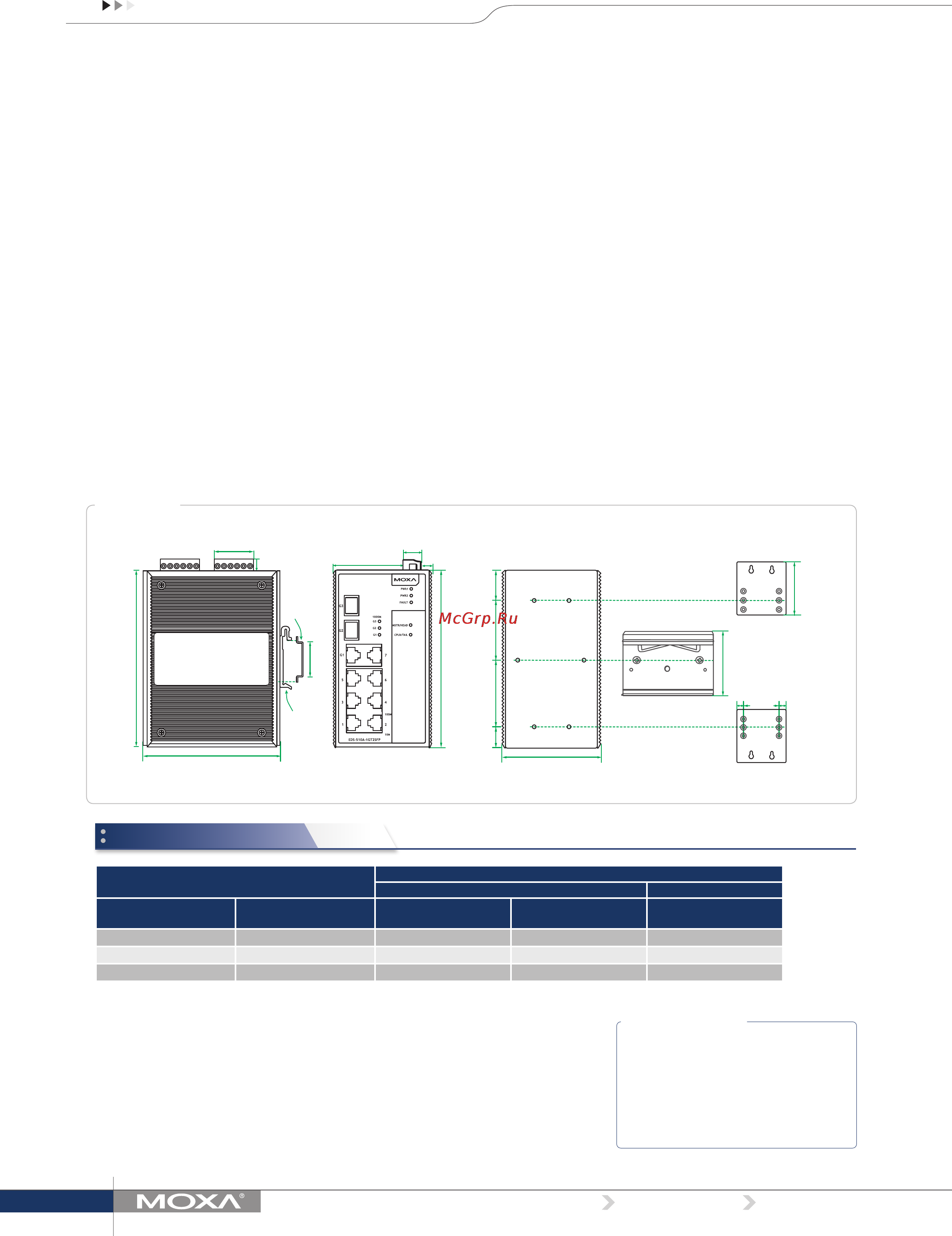

Moxa EDS-510A-1GT2SFP [2/4] Ordering information

www.moxa.com

info@moxa.com

Industrial Ethernet Solutions

Available Models

Port Interface

Gigabit Ethernet Fast Ethernet

Standard Temperature

(0 to 60˚C)

Wide Temperature

(-40 to 75˚C)

10/100/1000BaseT(X) 1000BaseSFP* 10/100BaseT(X)

EDS-510A-3GT EDS-510A-3GT-T

3 – 7

EDS-510A-1GT2SFP EDS-510A-1GT2SFP-T

1 2 7

EDS-510A-3SFP EDS-510A-3SFP-T

– 3 7

*The EDS-510A series supports up to 3 1000BaseSFP slots. See the SFP-1G series datasheet for Gigabit Ethernet SFP module product information.

DlN-Rail Kit

DlN-Rail

Rear View

Side View Front View

Wall Mounting Kit

DlN-Rail Kit

30.0 (1.2)

105.0 (4.1)

135.0 (5.3)

24.3 (1.0) 39.4 (1.6)

66.8 (2.6)

48.3 (1.9)

7.8

(0.3)

7.8

(0.3)

30.5

(1.2)

46.8 (1.8) 24.6

(1.0)

35.0 (1.4)

9.0 (0.4)

51.3 (2.0)

15.0 (0.6)

13.9 (0.5)

80.2 (3.2)

Ordering Information

Alarm Contact: 2 relay outputs with current carrying capacity of 1 A @

24 VDC

Digital Inputs: 2 inputs with the same ground, but electrically isolated

from the electronics.

•+13to+30Vforstate“1”

•-30to+3Vforstate“0”

•Max.inputcurrent:8mA

Power Requirements

Input Voltage: 24 VDC (12 to 45 VDC), redundant dual inputs

Input Current:

EDS-510A-3GT:0.65A@24V

EDS-510A-1GT2SFP:0.44A@24V

EDS-510A-3SFP:0.46A@24V

Overload Current Protection: Present

Connection: 2 removable 6-contact terminal blocks

Reverse Polarity Protection: Present

Physical Characteristics

Housing: Metal, IP30 protection

Dimensions: 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

Weight: 1170 g

Installation: DIN-Rail mounting, wall mounting (with optional kit)

Environmental Limits

Operating Temperature:

StandardModels:0to60°C(32to140°F)

WideTemp.Models:-40to75°C(-40to167°F)

Storage Temperature:-40to85°C(-40to185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certiﬁcations

Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1

Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX

Zone 2 Ex nC IIC

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,

EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,

EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Marine: DNV, GL

Trafﬁc Control: NEMA TS2

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.

MTBF (mean time between failures)

Time: 204,000 hrs

Database:MIL-HDBK-217J,GB25°C

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

Dimensions

Unit:mm(inch)

Optional Accessories (can be purchased separately)

MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes

EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices

ABC-01:CongurationbackupandrestorationtoolformanagedEthernetswitches,0to60°C

operating temperature

DR-4524/75-24/120-24: 45/75/120 W DIN-Rail 24 VDC power supplies

MDR-40-24/60-24:40/60WDIN-Rail24VDCpowersupplies,-20to70°Coperatingtemperature

WK-46: Wall mounting kit

RK-4U:4U-high19”rackmountingkit

Package Checklist

• EDS-510A switch

• RJ45 to DB9 console port cable

• Protective caps for unused ports

• Documentation and software CD

• Hardware installation guide (printed)

• Warranty card
