Moxa PT-508-MM-SC-24 [6/15] Warning warning

- 6 -

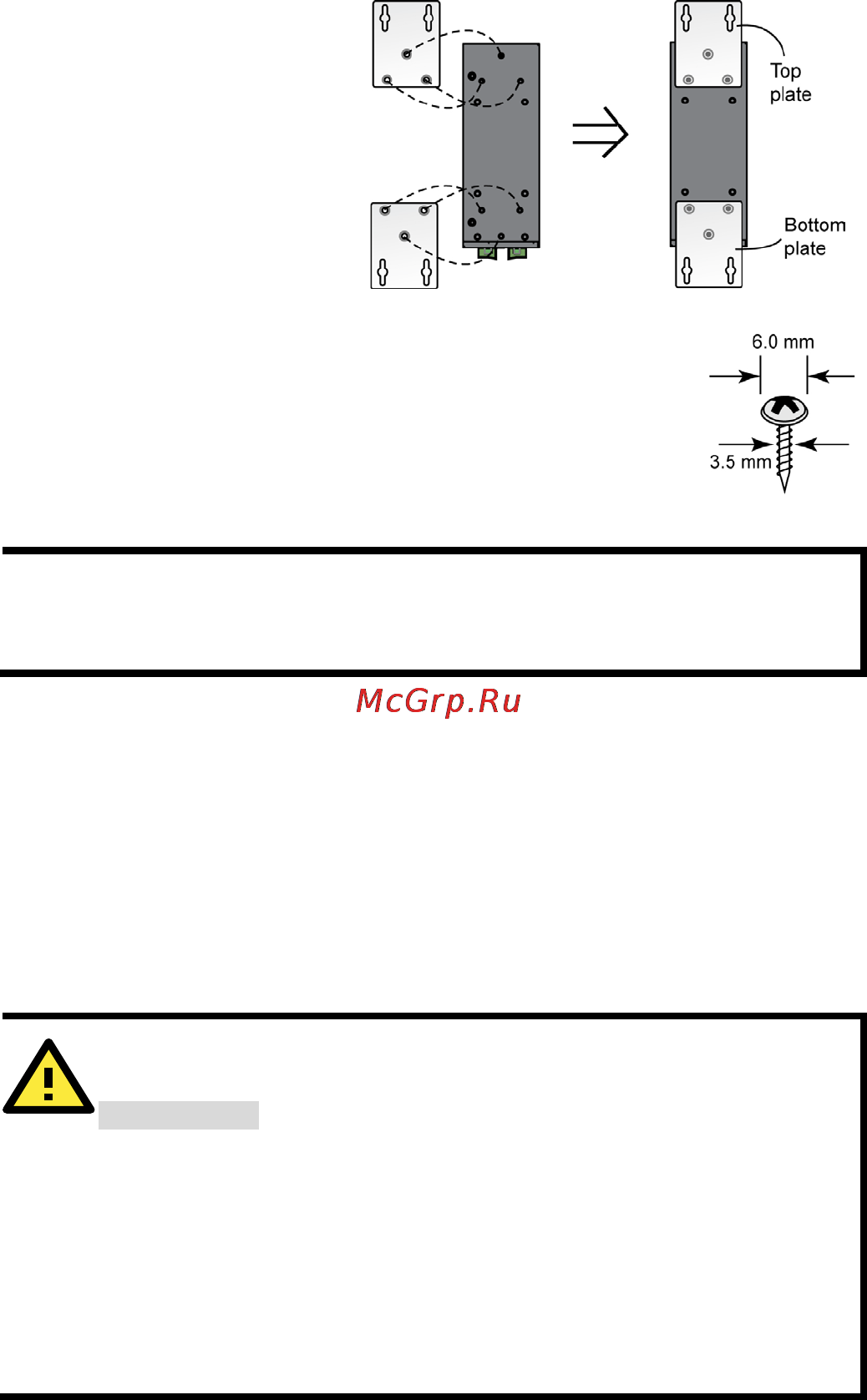

Wall Mounting (optional)

For added convenience, the PT-508 can be wall mounted as illustrated

below.

STEP 1: Remove the

aluminum DIN

-Rail

attachment plate from

the

-508

’s rear panel, and then

attach the wall mount plates

with

6 M3 screws, as shown

the right.

STEP 2: Mounting the PT-508 to a wall requires 4

screws. Use the

PT-508, with wall mount plates attached,

as a guide to mark the correct locations for the

screws.

The heads of the screws should be less than 6.0 mm in

diameter, and the shafts should be less than 3.5 mm in

diameter, as shown on the righ

NOTE

Test the screw’s head and shank size by inserting the screw into

one of the keyhole

-shaped apertures of the wall mounting plates

before screwing it into the wall.

DO NOT screw the screws all the way in—leave a space of about 2 mm to

allow room for sliding the wall mount panel between the wall and the

screws.

STEP 3: After the screws are fixed into the wall, insert the four screw

heads through the large opening of the keyhole-shaped apertures, and

then slide the PT-508 downwards. Tighten the 4 screws for added

stability.

Wiring Requirements

WARNING

Safety First!

Be sure the power cord is disconnected before installing and/or

wiring your

PT-508.

Calculate the maximum possible current in each power

wire and

common wire. Observe all electrical codes dictating the

maximum current allowed for each wire size. If the current goes

above the maximum rating, the wiring could overheat, causing

serious damage to your equipment.
