Industrial Secure Router User's Manual Getting Started
2-4
the form 192.168.xxx.xxx. On the other hand, if your PC host’s subnet mask is 255.255.255.0, then its IP
address must have the form, 192.168.127.xxx.
NOTE
To use the
Industrial Secure Router
’s management and monitoring functions from a PC host connected to the
same LAN as the
Industrial Secure Router, you must make sure that the PC host and the
Industrial Secure
R
outer are connected to the same logical subnet.
NOTE
Before accessing the console utility via Telnet, first connect the
Industrial Secure Router
’s RJ45 Ethernet LAN
ports to your Ethernet L
AN, or directly to your PC’s Ethernet card (NIC). You can use either a straight-
through
or cross
-over Ethernet cable.
NOTE
The
Industrial Secure Router’s default LAN IP address is 192.168.127.254.
Perform the following steps to access the console utility via Telnet.

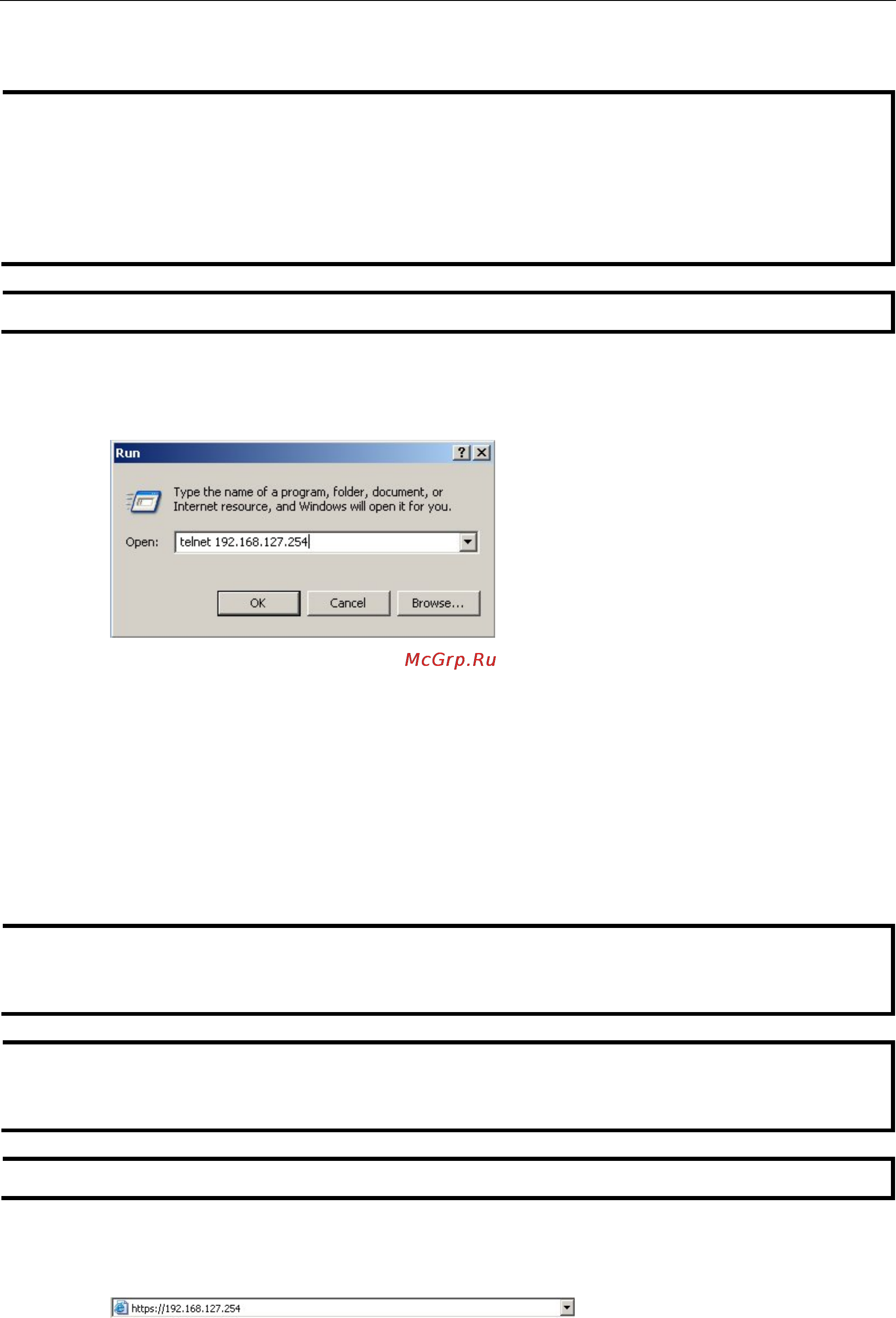

1. Click Start Run, and then telnet to the Industrial Secure Router’s IP address from the Windows Run
window. (You may also issue the Telnet command from the MS-DOS prompt.)
2. Refer to instructions 6 and 7 in the RS-232 Console Configuration (115200, None, 8, 1, VT100)
section on page 2-2.
Using a Web Browser to Configure the Industrial
Secure Router
The Industrial Secure Router’s web browser interface provides a convenient way to modify the router’s
configuration and access the built-in monitoring and network administration functions. The recommended web
browser is Microsoft Internet Explorer 6.0 with JVM (Java Virtual Machine) installed.
NOTE
To use the
Industrial Secure Router
’s management and monitoring functions from a PC host connected to the
same LAN as the
Industrial Secure Router, you must make sure that the PC host and the
Industrial Secure
R
outer are connected to the same logical subnet.
NOTE
Before accessing the
Industrial Secure Router’s web browser, first connect the Industrial Secure Router’s
RJ45 Ethernet LAN ports to your Ethernet LAN, or directly to your PC’s Ethernet card (NIC). You can use either
a straight
-through or cross-over Ethernet cable.
NOTE
The
Industrial Secure Router’s default LAN IP address is 192.168.127.254.
Perform the following steps to access the Industrial Secure Router’s web browser interface.
1. Start Internet Explorer and type the Industrial Secure Router’s LAN IP address in the Address field. Press
Enter to establish the connection.
