- 5 -

power cord with an IEC C13 connector, which is compatible with the AC

power inlet.

DC Power Terminal Blocks

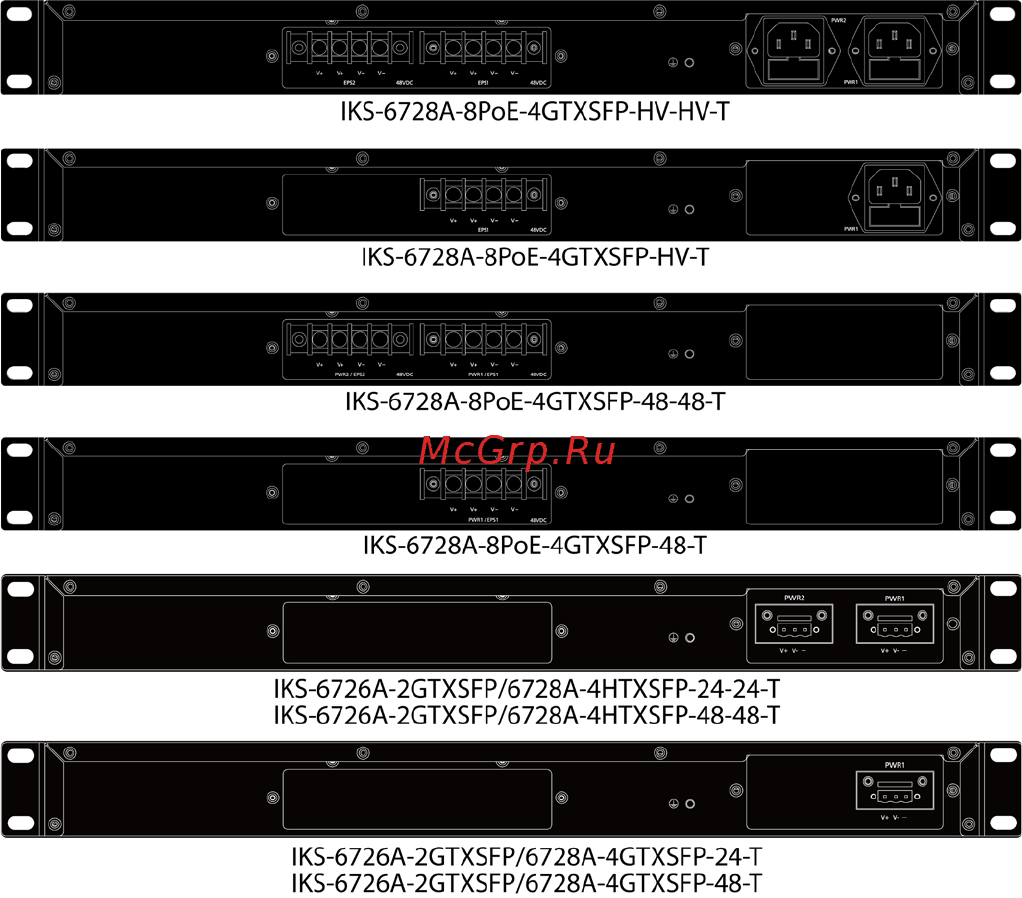

The connection for EPS1 (external power supply 1) / PWR1 (power supply

1) and EPS2 (external power supply 2) / PWR2 (power supply 2) are

located on the rear panel (shown below).

STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals,

respectively.

STEP 2: To keep the DC wires from pulling loose, use a screwdriver to

tighten the wire-clamp screws.

Wiring the Relay Contact

Each switch has one relay output.

FAULT:

The relay contact of the 2-pin terminal block connector is used to detect

user-configured events. The two wires attached to the fault contacts form

an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the fault circuit remains closed.

USB Connection

The switch has two USB ports, one type B USB-serial console port and one

type A USB host port, located on the front panel. Use a USB cable (type A

male to type B male) to connect the USB-serial console port to your PC's

COM port, and install the USB driver (available in the software CD) on the

PC. You may then use a console terminal program, such as Moxa’s

PComm Terminal Emulator, to access the console configuration utility of

the switch.
