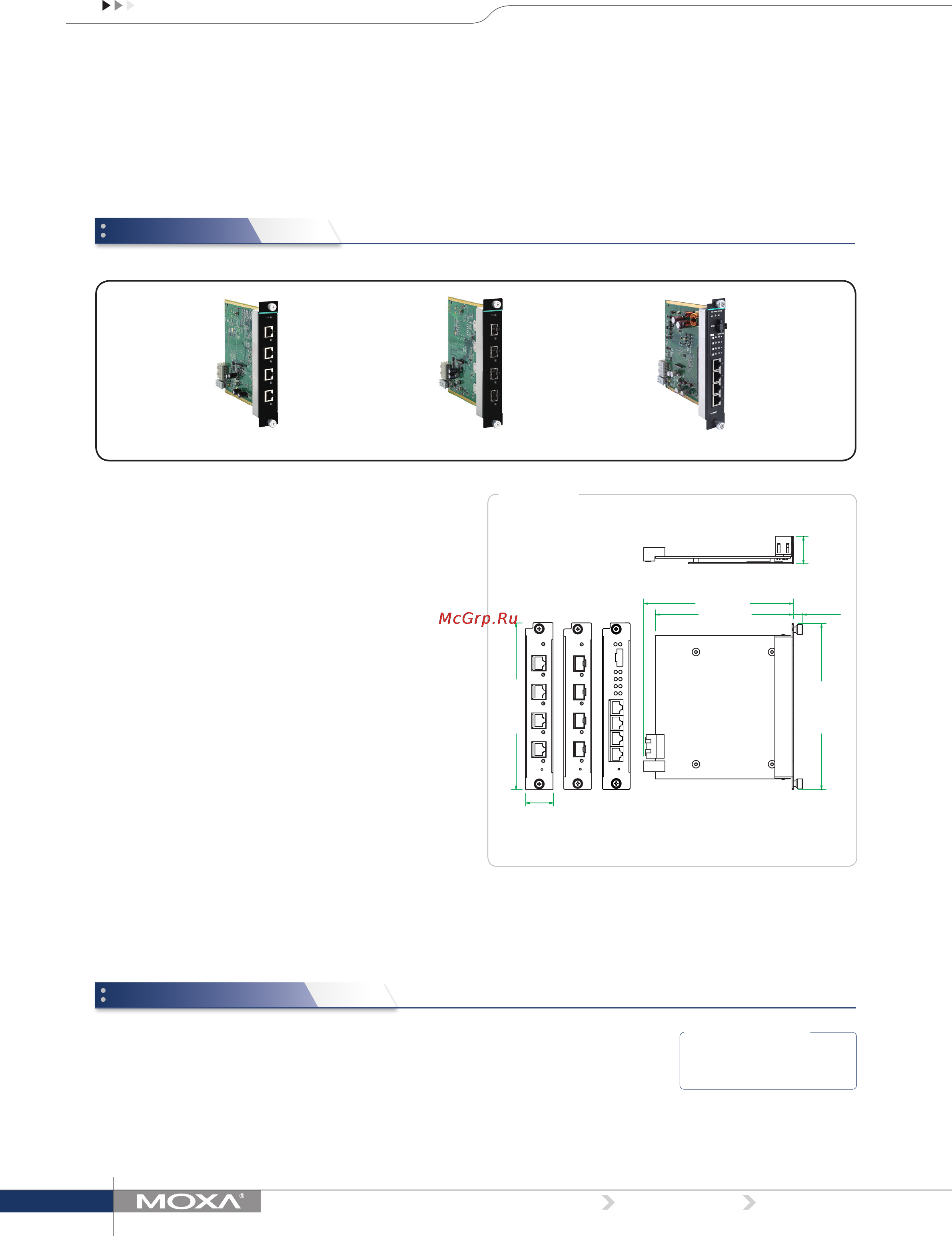

IM-G7000A Series
Gigabit Ethernet Interface Modules, IM-G7000A Series
4G-port Gigabit Ethernet interface modules for ICS-G7748A/G7750A/G7752A/
G7848A/G7850A/G7852A series modular managed Ethernet switches
Front View
Top View
Side View
Dimensions
Specifications
Ordering Information
IM-G7000A-4GTX
Unit: mm (inch)
IM-G7000A-4GSFP
IM-G7000A-4PoE
174.7 (6.88)
28.8 (1.13)
144.9 (5.70)
157.1 (6.19)
10 (0.39)
174.7 (6.88)
28.8 (1.13)
Available Models
IM-G7000A-4GTX: Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C operating
temperature
IM-G7000A-4GSFP: Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating
temperature
IM-G7000A-4PoE: Gigabit Ethernet PoE+ interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C
operating temperature
Note: See the SFP-1G, SFP-1G Copper, and SFP-1FE datasheets for SFP module product information.
Package Checklist
• IM-G7000A interface module
• Warranty card
Interface
Fiber Ports: 100/1000BaseSFP slot
RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed, Full/Half
duplex mode, and auto MDI/MDI-X connection
PoE+ Ports: 10/100/1000BaseT(X) auto negotiation speed, compliant
with IEEE 802.3af/at high power mode up to 36 W
LED Indicators: STAT, 10/100/1000 for TP port, 100/1000 for fiber
port
Hot Swap Button: Push this button prior to swapping IM-G7000A
modules
Power Requirements
Power Consumption:
IM-G7000A-4GTX: 4.1 W
IM-G7000A-4GSFP: 3.3 W
IM-G7000A-4PoE: 6.07 W (without PD power consumption)
NOTE: The IM-G7000A-4PoE must be connected to a 48 VDC external power
supply to provide power to PoE devices.
Physical Characteristics
Housing: IP30 protection
Dimensions: 28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in)
Weight: 220 g
MTBF (mean time between failures)
Time:
IM-G7000A-4GTX: 1,569,520 hrs
IM-G7000A-4GSFP: 1,544,084 hrs
IM-G7000A-4PoE: 394,348 hrs
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
