www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
› Up to 19 optical fiber connections in a compact switch (EDS-619)
› Modular design with 4-port copper/fiber combinations
› Hot swap media modules for continuous operation
› Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
› TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
› Easy network management by web browser, CLI, Telnet/serial
console, Windows utility, and ABC-01
› -40 to 75°C operating temperature range (T models)

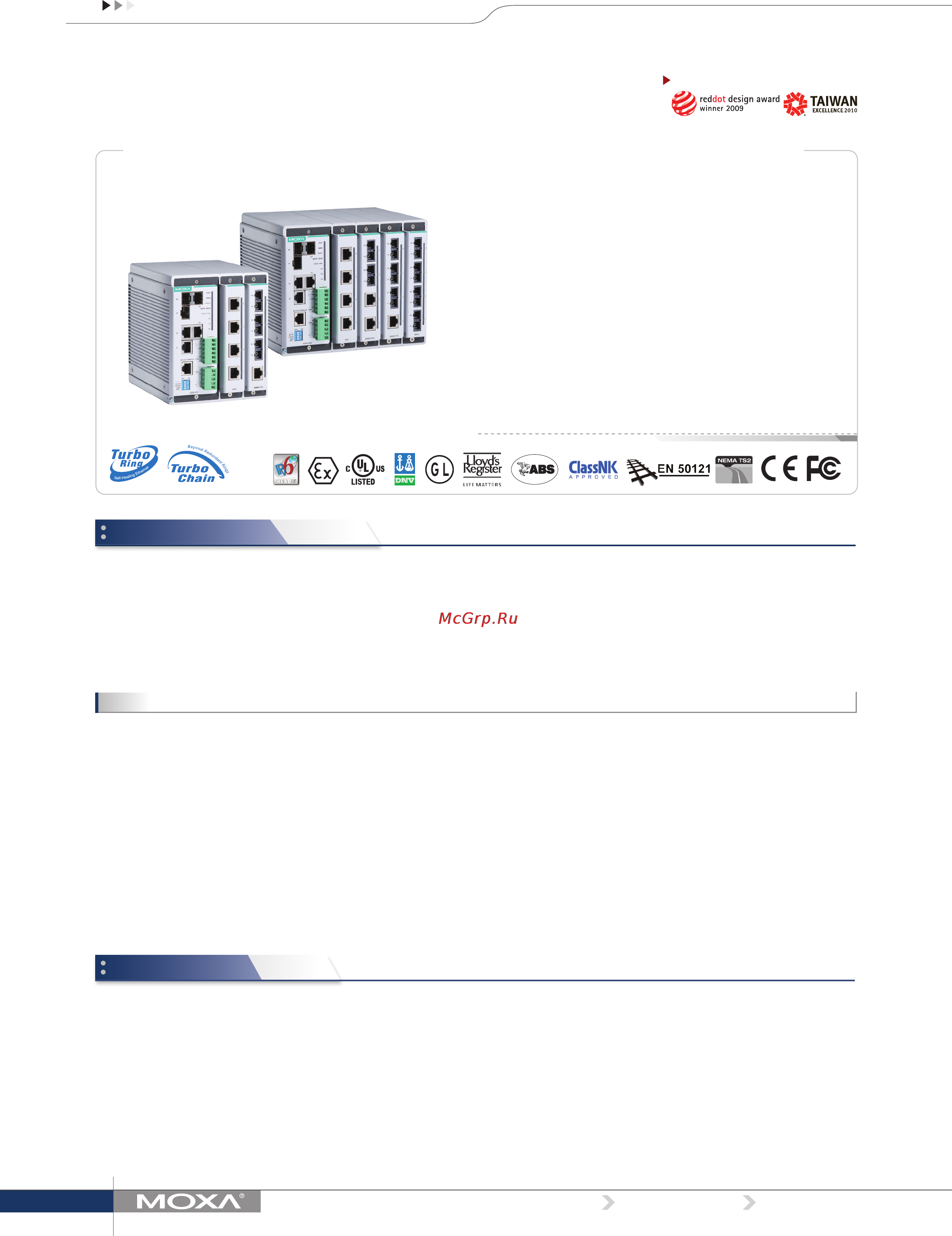

EDS-608/611/616/619 Series
The versatile modular design of the compact EDS-600 series Ethernet
switch allows users to combine fiber and copper modules to create
switch solutions suitable for any automation network. The EDS-600’s
modular design lets you install up to 3 Gigabit Ethernet ports and 16
Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain
(recovery time < 20 ms) technology, RSTP/STP, and MSTP helps
increase the reliability and availability of your industrial Ethernet
8, 8+3G, 16, 16+3G-port compact modular managed Ethernet switches
• Command Line Interface (CLI) for quickly configuring major
managed functions
• Hot swap media modules for continuous operation
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• SNMP Inform for ensuring reliable event management
• LLDP for automated topology discovery
• DHCP Option 82 for IP address assignment with different policies
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for
precise time synchronization of networks
• Support EtherNet/IP and Modbus/TCP protocols for device
management and monitoring
• Compatible with PROFINET protocol for transparent data
transmission
network. Models with an extended operating temperature range of
-40 to 75°C are also available. The EDS-600 series supports several
reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/
IP, Modbus/TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP
snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and
more, making the Ethernet switches suitable for any harsh industrial
environment.
Features and Benefits
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port function for blocking unauthorized access based on MAC
address
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• Digital inputs to integrate sensors and alarms with IP networks
Introduction
Specifications
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP,
RMON, HTTP, HTTPS, Telnet, SSH, Syslog, LLDP, EtherNet/IP,
Modbus/TCP, IEEE 1588 PTPv2, IPv6, NTP Server/Client
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
