2
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
157.2 (6.2)
124.9 (4.9)
50.0 (2.0)
151.0 (5.9) 157.2 (6.2)
72.0 (2.8)
120.0 (4.7)
167.2 (6.6)
Side View
Front View
Rear View
Side View
EDS-608/611 Series
DIN-Rail Mounting Kit
Top View
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbit
Interface
Fast Ethernet: 2 or 4 slots for any combination of 4-port interface
modules, 10/100BaseT(X) or 100BaseFX
Gigabit Ethernet: 3 10/100/1000BaseT(X) with 100/1000BaseSFP
combo slots (EDS-611 and EDS-619 only)
Console Port: RS-232 (RJ45 connector)
DIP Switches: Turbo Ring, Master, Coupler, Reserve
System LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/
TAIL, G1/G2/G3 (EDS-611 and EDS-619 only)
Alarm Contact: 1 relay output with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 1 input with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Power Requirements
Input Voltage: 12/24/48 VDC, redundant dual inputs
Input Current:
EDS-608:0.16A@24V
EDS-611:0.31A@24V
EDS-616:0.25A@24V
EDS-619:0.31A@24V
Overload Current Protection: Present
Connection: 1 removable 5-contact and 1 removable 6-contact
terminal block
Reverse Polarity Protection: Present
Physical Characteristics
Housing: IP30 protection
Dimensions:
EDS-608/611Series:124.9x151x157.2mm(4.92x5.95x6.19in)
EDS-616/619Series:185x151x157.2mm(7.28x5.95x6.19in)
Weight:
EDS-608:2080g
EDS-611:2260g
EDS-616:2780g
EDS-619:2950g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
StandardModels:0to60°C(32to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508, UL 60950-1, EN 60950-1
Hazardous Location:
UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc
EMI:
FCC Part 15 Subpart B Class A, EN 55022 Class A,
EN 61000-6-4 (Industrial)
EMS: EN 61000-6-2 (Industrial)
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-29
Marine: DNV, GL, LR, ABS, NK
Traffic Control: NEMA TS2
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time:
EDS-608:506,219hrs
EDS-611:483,344hrs
EDS-616:546,937hrs
EDS-619:475,816hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty

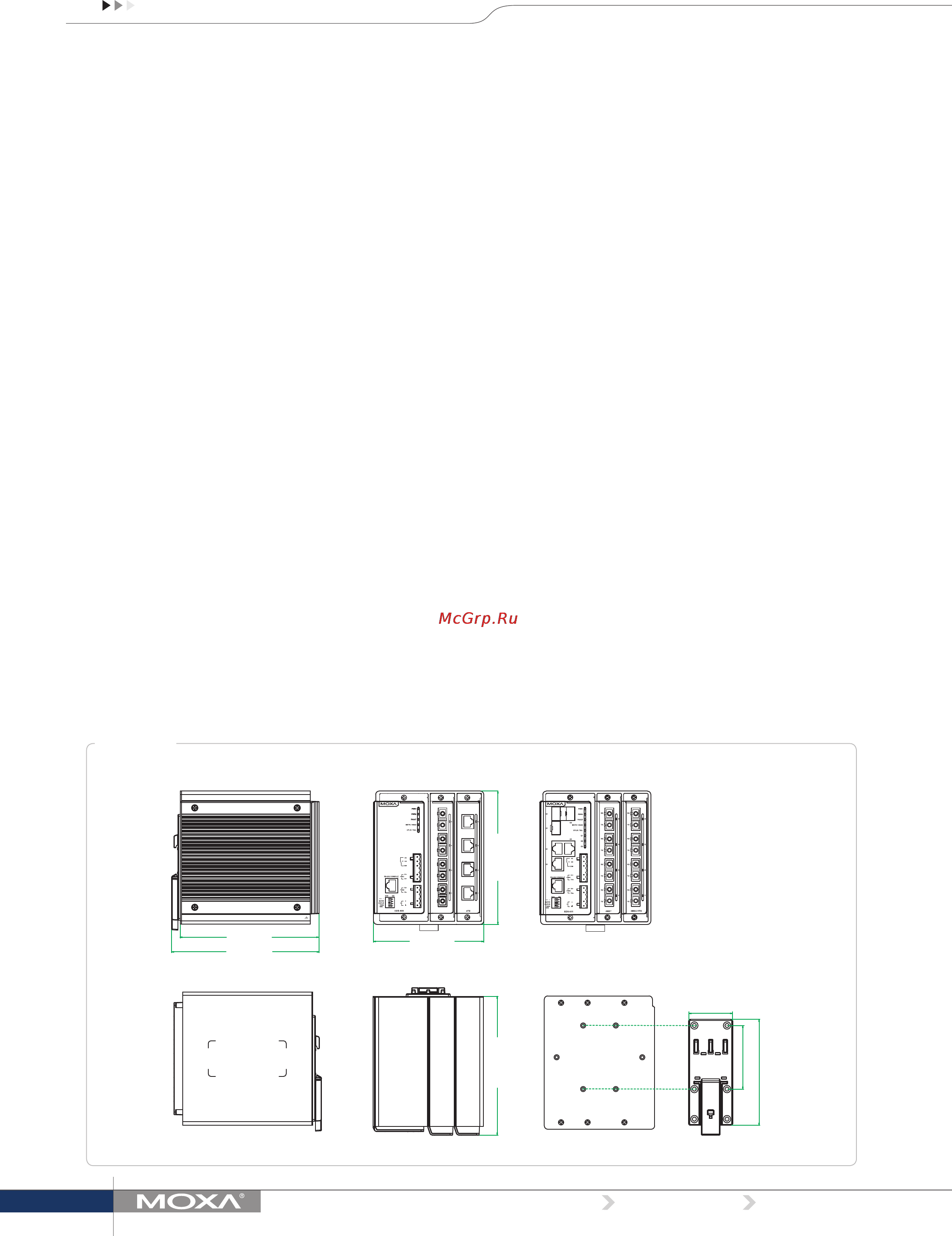

Dimensions
Unit:mm(inch)
