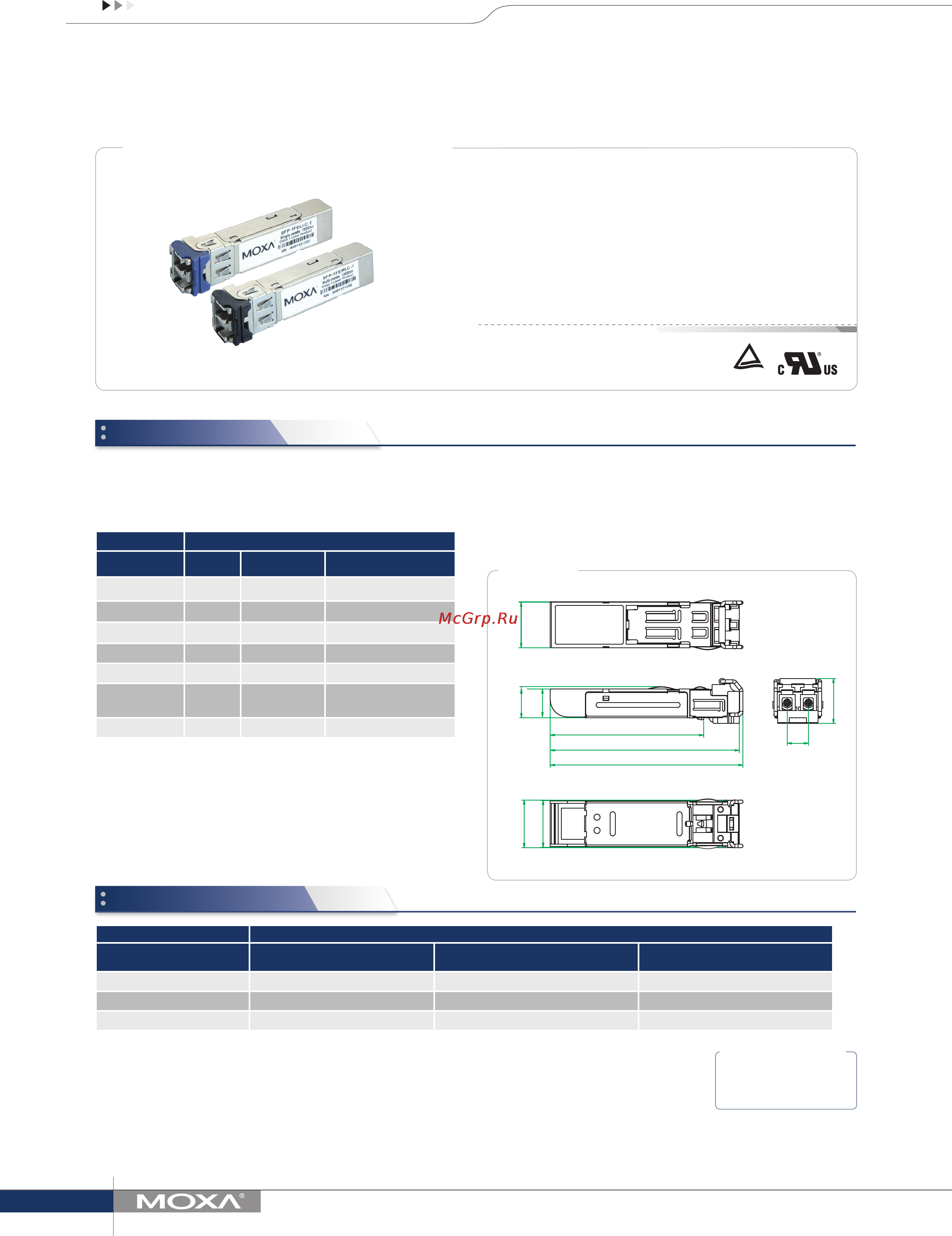

SFP-1FE Series
1-port Fast Ethernet SFP modules
› IEEE 802.3u compliant
› Differential PECL inputs and outputs
› TTL signal detect indicator
› Hot pluggable LC duplex connector
› Class 1 laser product; complies with EN 60825-1
EN : 60825
Interface
Ethernet Ports: 1
Connectors: Duplex LC Connector
Optical Fiber
Fast Ethernet
SFP-M SFP-S SFP-L
Wavelength 1300 nm 1310 nm 1550 nm
Max. TX -8 dBm 0 dBm 0 dBm
Min. TX -18 dBm -5 dBm -5 dBm
RX Sensitivity -34 dBm -34 dBm -34 dBm
Link Budget 26 dB 29 dB 29 dB
Typical Distance 4 km
a
40 km
b
80 km
b
Saturation 0 dBm -3 dBm -3 dBm
a. 50/125 μm or 62.5/125 μm, 800 MHz * km @ 1300 nm
multi-mode fiber optic cable
b. 9/125 μm single-mode fiber optic cable
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Available Models Port Interface
Wide Temperature
(-40 to 85˚C)
100BaseFX, Multi-mode,
LC Connector, 4 km
100BaseFX, Single-mode,
LC Connector, 40 km
100BaseFX, Single-mode,
LC Connector, 80 km
SFP-1FEMLC-T
1 – –
SFP-1FESLC-T
– 1 –
SFP-1FELLC-T
– – 1
Rear View
13.4 (0.5)
45.0 (1.8)
6.3 (0.2)
55.5 (2.2)
56.6 (2.2)
8.4 (0.3)
13.4 (0.5)
14.0 (0.6)
13.7 (0.5)
8.2
(0.3)
Side View
Top View
Dimensions
Ordering Information
Specifications
Unit:mm(inch)
Standards and Certifications
Safety: UL 60950-1, TÜV
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Available Models
The SFP-1FE series modules can be used with the following products:
IM-G7000A-4GSFP, IM-G7000-4GSFP, ICS-G7826A/ G7828A series, ICS-G7826/G7828 series, ICS-G7526A/G7528A
series, ICS-G7526/G7528 series, IKS-G6524A/G6824A series, IKS-G6524/G6824 series, IKS-6726A/6728A series,
IKS-6726/6728 series, IM-6700A-8SFP, IM-6700-8SFP, EDS-611/619 series, EDS-G516E series, EDS-G512E series,
EDS-G509 series, EDS-510E series , EDS-G308-2SFP, EDS-210A series, IKS-6728A-8PoE series, IKS-6728-8PoE
series, EDS-P510A-8PoE series, EDS-P510 series, PM-7200-8SFP, EDR-G903/G902 series
Package Checklist
• SFP-1FE module
• Warranty card
