3
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions

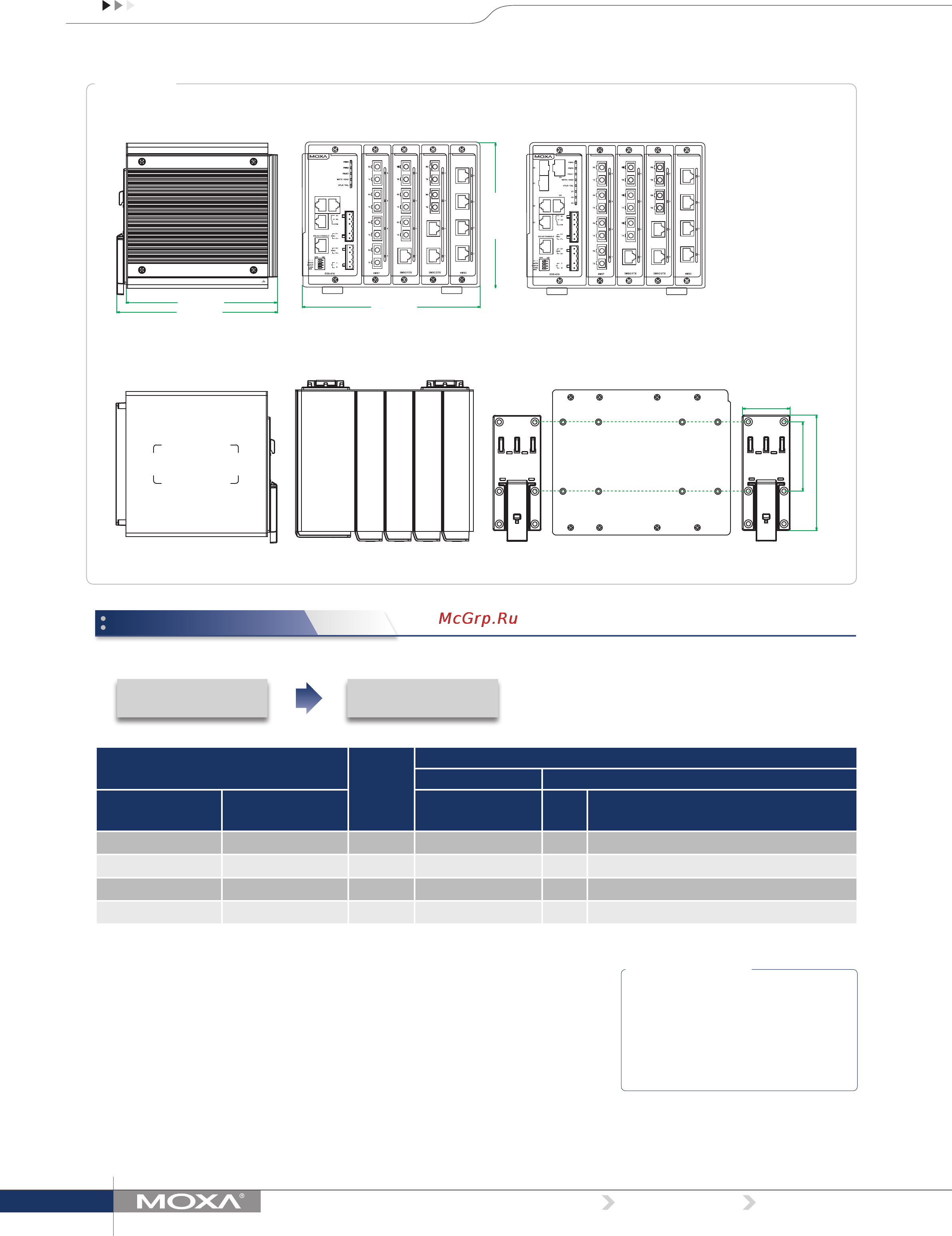

157.2 (6.2)
185.0 (7.3)
50.0 (2.0)
72.0 (2.8)
120.0 (4.7)
151.0 (5.9)
167.2 (6.6)
EDS-608/611/616/619
CM-600 Series
(Fast Ethernet)
Step 1: Select Ethernet switch system
Step 2: Select interface modules
Note:TheEDS-600switchsystemisdeliveredwithoutinterface
modules. See the CM-600 datasheet for Fast Ethernet interface module
product information.
Side View
Front View
Rear View
Side View
EDS-616/619 Series
DIN-Rail Mounting Kit
Available Models
Total No. of
Ports
Port Interface
Gigabit Ethernet Fast Ethernet
Standard Temperature
(0 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100/1000BaseT(X) or
100/1000BaseSFP*
Slots 10/100BaseT(X) and/or 100BaseFX
EDS-608 EDS-608-T
8 – 2 up to 8
EDS-611 EDS-611-T
11 3 2 up to 8
EDS-616 EDS-616-T
16 – 4 up to 16
EDS-619 EDS-619-T
19 3 4 up to 16
*The EDS-611/619 series supports 3 100/1000BaseSFP slots. See the SFP-1G and SFP-1FE datasheets for Gigabit/Fast Ethernet SFP module product information.
Top View
Ordering Information
Dimensions
Unit:mm(inch)
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500,1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C
operating temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
WK-75: Wall mounting kit
AVK-17: Anti-vibration wiring Kit
Package Checklist
• EDS-608 or EDS-611 or EDS-616 or
EDS-619 switch
• RJ45 to DB9 console port cable
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
