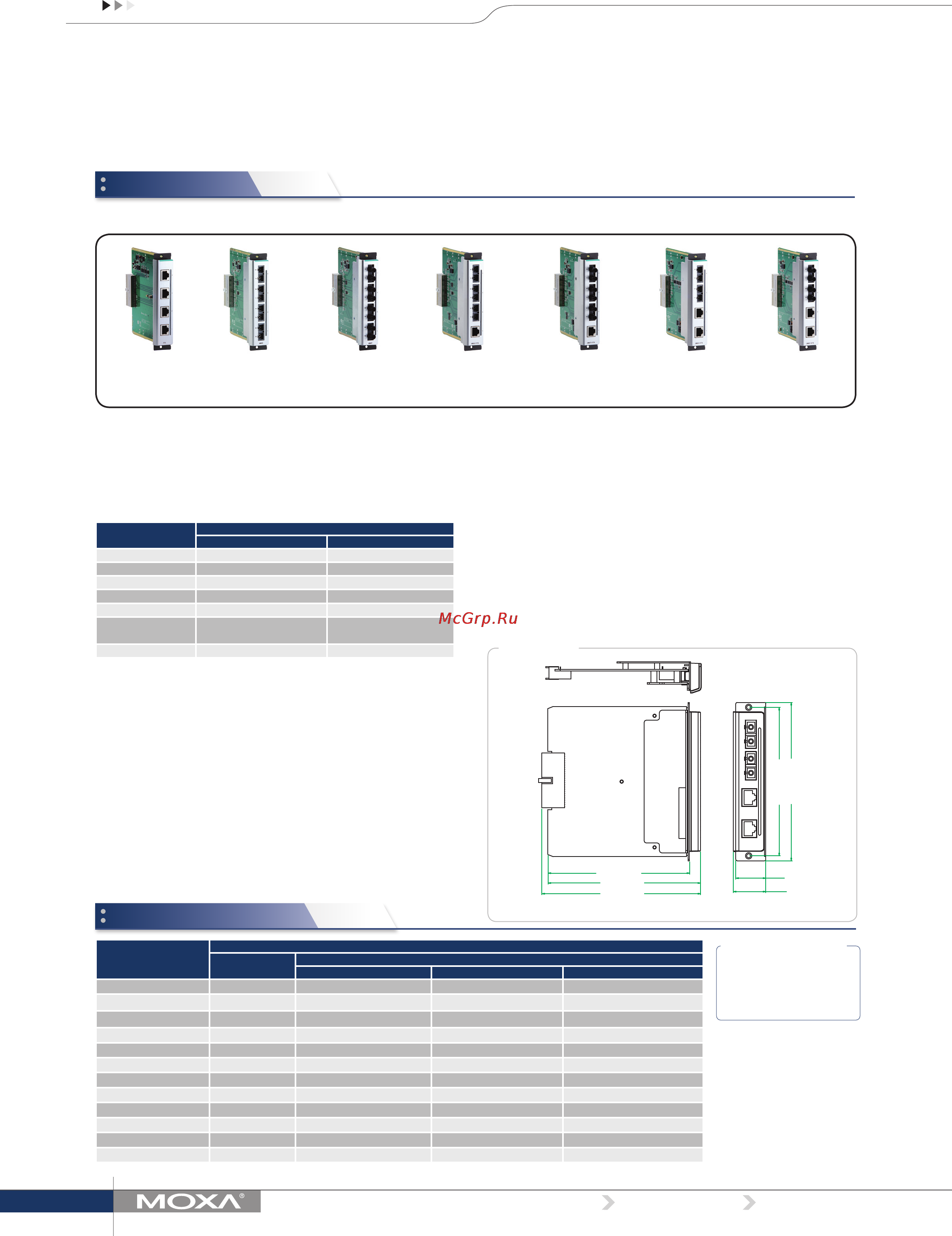

CM-600 Series
Fast Ethernet Interface Modules, CM-600 Series
4-port Fast Ethernet interface modules for EDS-600 series Ethernet switches
Front View
Top View
Side View
Available Models
(-40 to 75°C)
Port Interface
10/100BaseT(X)
100BaseFX
Multi-mode, SC Connector Multi-mode, ST Connector Single-mode, SC Connector
CM-600-4TX
4 – – –
CM-600-4TX-BP*
4 – – –
CM-600-4TX-PTP*
4 – – –
CM-600-4MSC
– 4 – –
CM-600-4MST
– – 4 –
CM-600-4SSC
– – – 4
CM-600-3MSC/1TX
1 3 – –
CM-600-3MST/1TX
1 – 3 –
CM-600-3SSC/1TX
1 – – 3
CM-600-2MSC/2TX
2 2 – –
CM-600-2MST/2TX
2 – 2 –
CM-600-2SSC/2TX
2 – – 2
*The CM-600-4TX-BP supports the bypass relay function on each port; the CM-600-4TX-PTP supports the IEEE 1588 PTPv2 protocol on each port.
CM-600-4MSTCM-600-4MSC
CM-600-4SSC
CM-600-2MSC/2TX
CM-600-2SSC/2TX
CM-600-2MST/2TXCM-600-3MSC/1TX
CM-600-3SSC/1TX
CM-600-3MST/1TX
Dimensions
Specifications
Ordering Information
CM-600-4TX
CM-600-4TX-BP
CM-600-4TX-PTP
Interface
Fiber Ports: 100BaseFX ports (SC/ST connector)
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
LED Indicators: 10/100 for TP port, 100M for fiber port
Optical Fiber
100BaseFX
Multi-mode Single-mode
Wavelength 1300 nm 1310 nm
Max. TX -10 dBm 0 dBm
Min. TX -20 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm
Link Budget 12 dB 29 dB
Typical Distance
5 km
a
4 km
b
40 km
c
Saturation -6 dBm -3 dBm
a. 50/125 μm, 800 MHz*km fiber optic cable
b. 62.5/125 μm, 500 MHz*km fiber optic cable
c. 9/125 μm single-mode fiber optic cable
Power Requirements
Power Consumption:
CM-600-4TX:0.72W
CM-600-4TX-BP:2.81W
CM-600-4TX-PTP:4.08W
CM-600-4MSC,-4MST,-4SSC:2.64W
CM-600-3MSC/1TX,-3MST/1TX,-3SSC/1TX:2.16W
CM-600-2MSC/2TX,-2MST/2TX,-2SSC/2TX:1.68W
Physical Characteristics
Housing: IP30 protection
Dimensions: 29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in)
Weight:
CM-600-4TX:190g
CM-600-4TX-BP:240g
CM-600-4TX-PTP:185g
CM-600-4MSC,-4MST,-4SSC:240g
CM-600-3MSC/1TX,-3MST/1TX,-3SSC/1TX:230g
CM-600-2MSC/2TX,-2MST/2TX,-2SSC/2TX:230g
MTBF (mean time between failures)
Time: 740,661 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Unit:mm(inch)
Package Checklist
• CM-600 interface
module
• Warranty card
