EDS-728 Series User’s Manual Getting Started

2-3

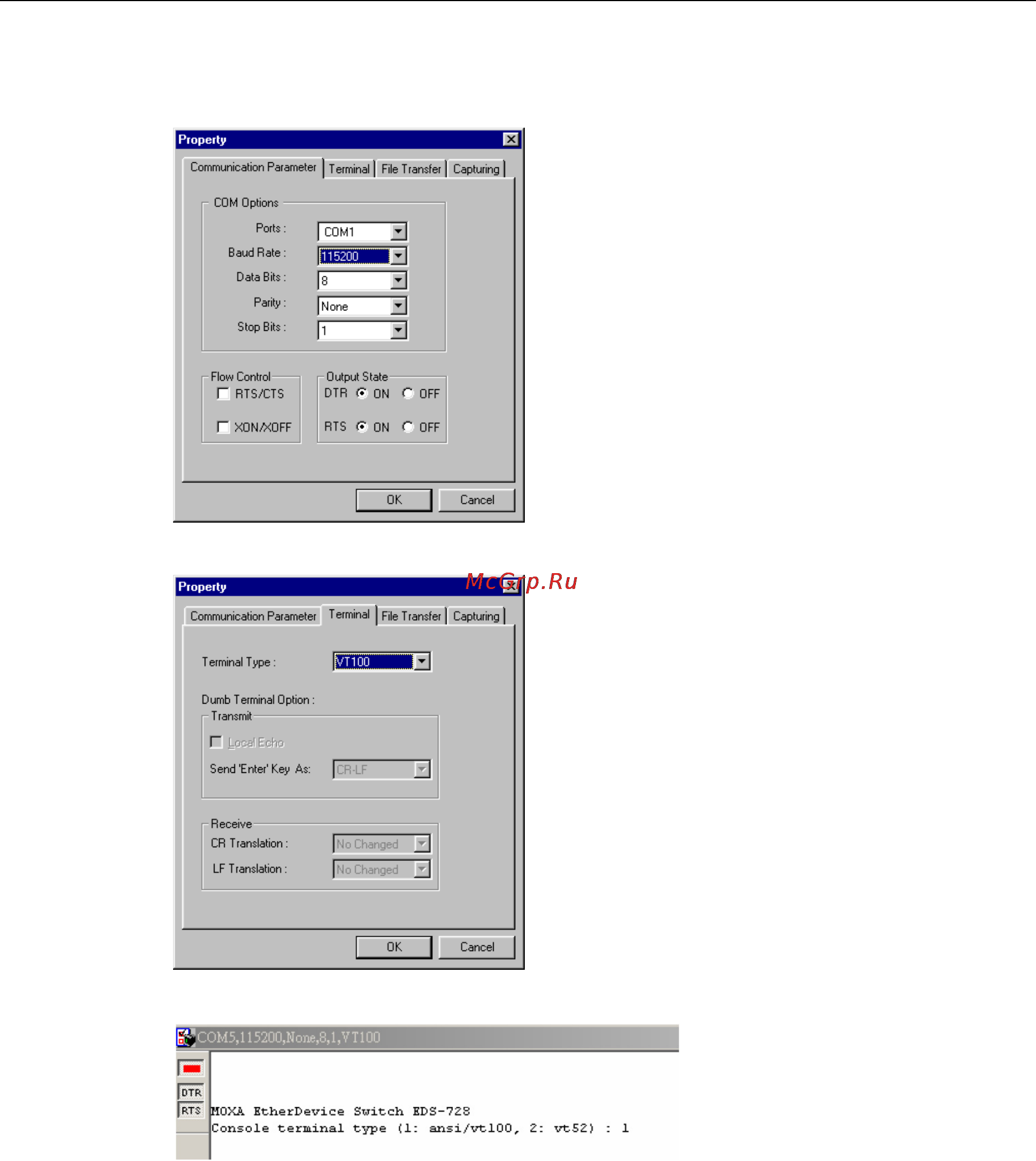

3. The Communication Parameter page of the Property window opens. Select the appropriate

COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity,

and 1 for Stop Bits.

4. Click on the Terminal tab, and select VT100 for Terminal Type. Click on OK to continue.

5. Type 1 to select ansi/VT100 terminal type, and then press Enter.
