www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
A
P
P
R
O
V
E
D
P
R
O
D
U
C
T

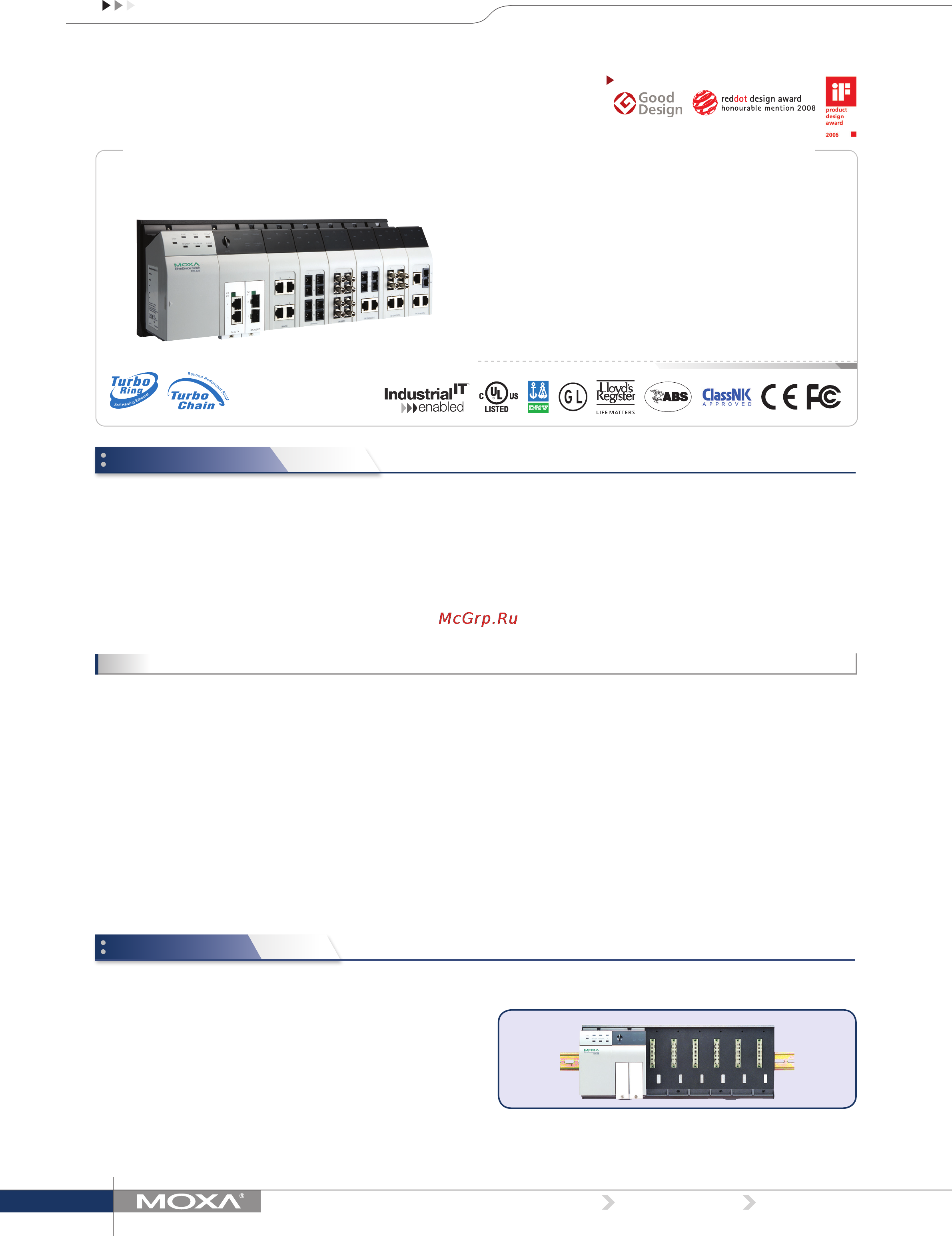

EDS-728/828
The EDS-728/828 modular Gigabit Ethernet switch features a versatile
modular design that allows different combinations of fiber and
copper modules, creating a wide array of connection options ideal
for any automation network. The modular design lets you install up
to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-728/828 is
specially designed for redundant Gigabit network backbones and
uses a modular configuration to provide a high degree of flexibility for
network expansion. Top network performance, security, and reliability
is assured through the EDS-728/828’s advanced management and
• Layer 3 switching functionality to move data and information
across networks (EDS-828)
• Command Line Interface (CLI) for quickly configuring major
managed functions
• Supports advanced VLAN capability with Q-in-Q tagging
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for
precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device
management and monitoring
• Compatible with PROFINET protocol for transparent data
transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Layer 2/Layer 3 Modular Managed Ethernet Switch
System, EDS-72810G/82810G
24+4G-port Layer 2/Layer 3 Gigabit modular managed Ethernet switches
security features. The EDS-728/828 also features industrial-grade
construction, a console port for automatic configuration backup, and
an angled LED troubleshooting panel that can be conveniently viewed
from both horizontal and vertical orientations. In addition to Layer 2
features, the EDS-828 is a high-performance Layer 3 Ethernet switch
designed for network routing. The improved hardware technology
built into the EDS-828 replaces the software logic used by traditional
routers, offering better performance, and making the switch ideal for
large-scale local area networks.
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Port Trunking for optimum bandwidth utilization
• Access Control Lists (ACL) increase the flexibility and security of
network management (EDS-828)
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port function for blocking unauthorized access based on MAC
address
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
• Digital inputs for integrating sensors and alarms with IP networks
• Redundant, dual DC power inputs
• Configurable by Web browser, Telnet/serial console, CLI, Windows
utility, and ABC-01 automatic backup configurator
Features and Benefits
Introduction
Specifications
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Award-winning Product
› 4 Gigabit plus 24 Fast Ethernet ports for copper and fiber
› Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
› TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
› Easy network management by web browser, CLI, Telnet/serial
console, Windows utility, and ABC-01
› Layer 3 routing interconnects multiple LAN segments (EDS-828)
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTPv2,
EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client
