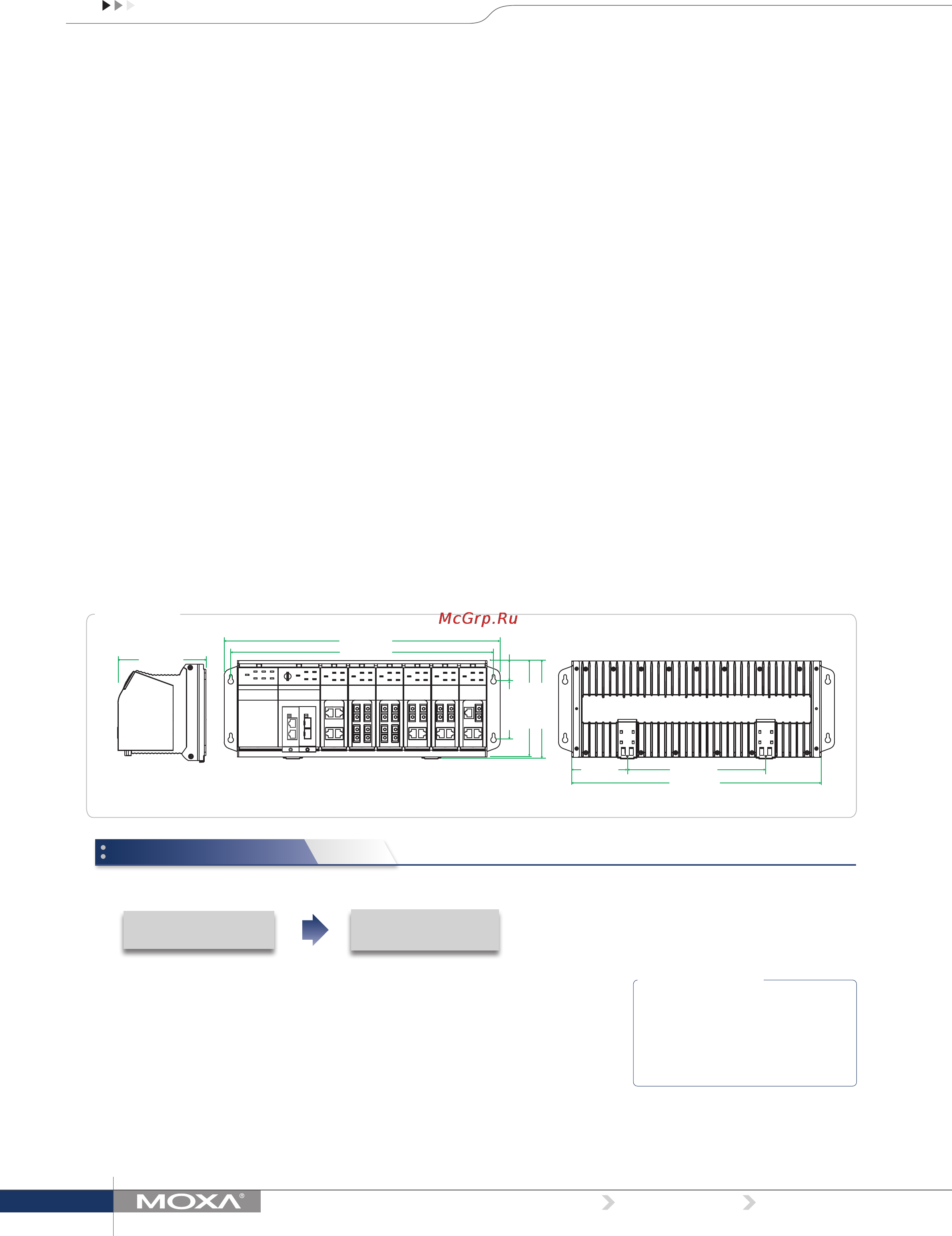

![Moxa EDS-72810G [2/6] Ordering information](/views2/1197196/page2/bg2.png)
2
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
Layer 3 Switching: Static routing, RIP V1/V2, OSPF, DVMRP, PIM-DM
(EDS-828)
Layer 3 Switching Redundancy: VRRP (EDS-828)
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge
MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 16 K
Packet Buffer Size: 32 MB
Interface
Fast Ethernet: 6 slots for any combination of 4-port interface modules,
10/100BaseT(X) or 100BaseFX
Gigabit Ethernet: 2 slots for any combination of 2-port interface
modules, 10/100/1000BaseT(X) or 1000BaseSFP slot
Console Port: RS-232 (RJ45 connector)
System LED Indicators: STAT, PWR1, PWR2, FAULT, MSTR/HEAD,
CPLR/TAIL, T.RING
Mode LED Indicators: LNK/ACT, FDX/HDX, RING PORT, COUPLER
PORT, SPEED
Alarm Contact: 2 relay outputs with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 2 inputs with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Power Requirements
Input Voltage: 24 VDC (12 to 45 VDC), redundant dual inputs
Input Current: 0.96 A @ 24 V
Overload Current Protection: Present
Connection: 2 removable 6-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: IP30 protection
Dimensions: 362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)
Weight: 1950 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-12
Marine: DNV, GL, LR, ABS, NK
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time: 191,203 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Front View Rear ViewSide View
EDS-72810G/82810G
IM series
(Gigabit or Fast Ethernet)
Step 1: Select Ethernet switch system
Step 2: Select interface modules
Note:TheEDS-72810G/82810Gswitchsystemisdeliveredwithout
interface modules. See the IM series and SFP-1G datasheets for Gigabit
and Fast Ethernet interface module product information.
128.0 (5.0)
401.0 (15.8)
30.0 (1.2)
201.2 (7.9)
362.4 (14.3)
80.6 (3.2)
140.0 (5.5)
142.5 (5.6)
85.0 (3.3)
381.7 (15.0)
Dimensions
Ordering Information
Available Models
EDS-72810G/82810G: Layer 2/Layer 3 modular managed Ethernet switch system with 6 slots for 4-port
Fast Ethernet interface modules and 2 slots for 2-port Gigabit interface modules, for up to 24+4G ports
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C operating
temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
WK-32: Wall mounting kit for the EDS-728/828 series
RK-4U:4U-high19”rackmountingkit
Unit:mm(inch)
Package Checklist
• EDS-728/828 switch
• RJ45 to DB9 console port cable
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
