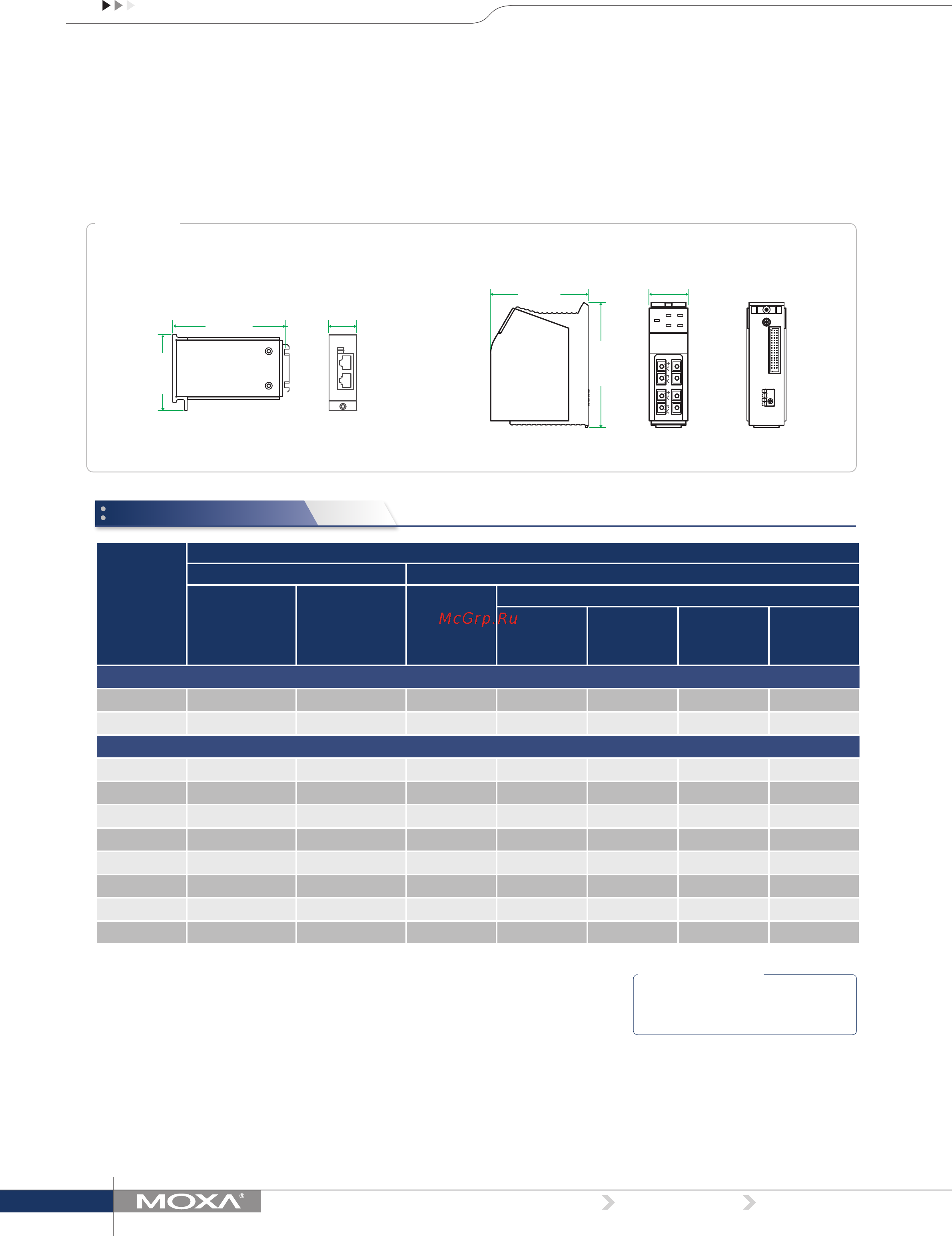

Moxa EDS-72810G [4/6] Ordering information
![Moxa EDS-72810G [4/6] Ordering information](/views2/1197196/page4/bg4.png)
4
www.moxa.com
info@moxa.com
Industrial Ethernet Solutions
Ordering Information
Gigabit Ethernet Interface Modules Fast Ethernet Interface Modules
Side View Rear ViewFront View Front ViewSide View
Available Models
(0 to 60°C)
Port Interface
Gigabit Ethernet Fast Ethernet
10/100/1000BaseT(X) 1000BaseSFP* 10/100BaseT(X)
100BaseFX
Multi-mode,
SC Connector
Multi-mode,
ST Connector
Single-mode,
SC Connector
Single-mode,
SC Connector,
80 km
IM-2G Series
IM-2GTX
2 – – – – – –
IM-2GSFP
– 2 – – – – –
IM Series
IM-4TX
– – 4 – – – –
IM-4MSC
– – – 4 – – –
IM-4MST
– – – – 4 – –
IM-2MSC/2TX
– – 2 2 – – –
IM-2MST/2TX
– – 2 – 2 – –
IM-4SSC
– – – – – 4 –
IM-2SSC/2TX
– – 2 – – 2 –
IM-1LSC/3TX
– – 3 – – – 1
*See the SFP-1G datasheet for Gigabit Ethernet SFP module product information.
Package Checklist
• IM series interface modules
• Warranty card
Dimensions
Unit:mm(inch)
24.0 (0.9)
40.0 (1.6)
101.1 (4.0)
100.0 (3.9)
127.8 (5.0)
65.9 (2.6)
MTBF (mean time between failures)
Time:
IM-4TX:4,403,579hrs
IM-2MSC/2TX,IM-2MST/2TX,IM-2SSC/2TX:1,011,453hrs
IM-1LSC/3TX:3,924,924hrs
IM-4MSC,IM-4MST,IM-4SSC:696,138hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
