Industrial Ethernet Solutions

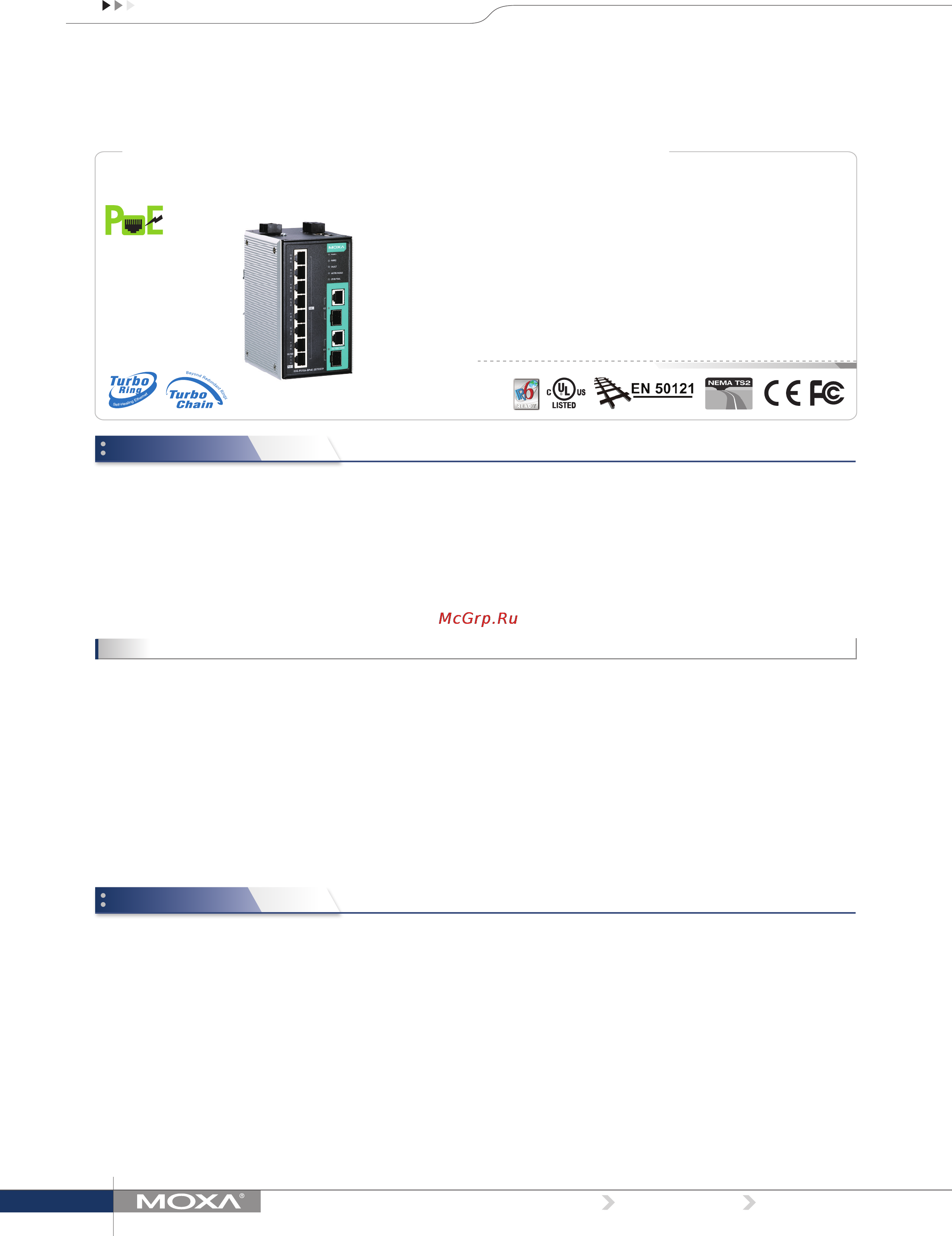

EDS-P510A-8PoE Series
Introduction
The Moxa EDS-P510A-8PoE Series are Gigabit managed PoE+ Ethernet
switches that come standard with 8 10/100BaseT(X), 802.3af (PoE),
and 802.3at (PoE+)-compliant Ethernet ports, and 2 combo Gigabit
Ethernet ports. The EDS-P510A-8PoE Ethernet switches provide up
to 30 watts of power per PoE+ port in standard mode and allow high
power output of up to 36 watts for industrial heavy-duty PoE devices,
such as weather-proof IP surveillance cameras with wipers/heaters,
high-performance wireless access points, and rugged IP phones.
The EDS-P510A-8PoE Ethernet switches are highly versatile, and the
• Advanced PoE management function (PoE output setting, PD
failure check, PoE scheduling, and PoE diagnostic)
• Command Line Interface (CLI) for quickly configuring major
managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for
precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocol for device
management and monitoring
• Compatible with PROFINET protocol for transparent data
transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
Specifications
8+2G-port Gigabit PoE+ managed Ethernet switches with
8 IEEE 802.3af/at PoE+ ports
SFP fiber ports can transmit data up to 120 km from the device to the
control center with high EMI immunity. The Ethernet switches support
a variety of management functions, including STP/RSTP, Turbo Ring,
Turbo Chain, PoE power management, PoE device auto-checking,
PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON,
bandwidth management, and port mirroring. The EDS-P510A-8PoE
series is designed especially for harsh outdoor applications with 3kV
surge protection to ensure uninterrupted reliability of PoE systems.
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance
network security
• Lock port function for blocking unauthorized access based on MAC
address
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
• Automatic warning by exception through e-mail, relay output
Features and Benefits
Power over Ethernet
› Built-in 8 PoE+ ports compliant with IEEE 802.3af/at standards
› Up to 36 W output per PoE+ port
› 3 kV LAN surge protection for extreme outdoor environments
› PoE diagnostic for powered device mode analysis
› 2 Gigabit combo ports for high-bandwidth and long-distance
communication
› Operates with 240 watts full PoE+ loading at -40 to 75°C
Technology
Standards:
IEEE 802.3af/at for Power-over-Ethernet
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP,
RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP,
SNMP Inform, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbit
