Industrial Ethernet Solutions
Available Models
Port Interface
Gigabit Ethernet Fast Ethernet
Standard Temperature
(-10 to 60˚C)
Wide Temperature
(-40 to 75˚C)
Combo Port,
10/100/1000BaseT(X) or 100/1000BaseSFP*
PoE+, 10/100BaseT(X)
EDS-P510A-8PoE-2GTXSFP EDS-P510A-8PoE-2GTXSFP-T 2 8
*The EDS-P510A-8PoE series supports 2 100/1000BaseSFP slots. See the SFP-1G and SFP-1FE datasheets for Gigabit/Fast Ethernet SFP module product information.
Ordering Information

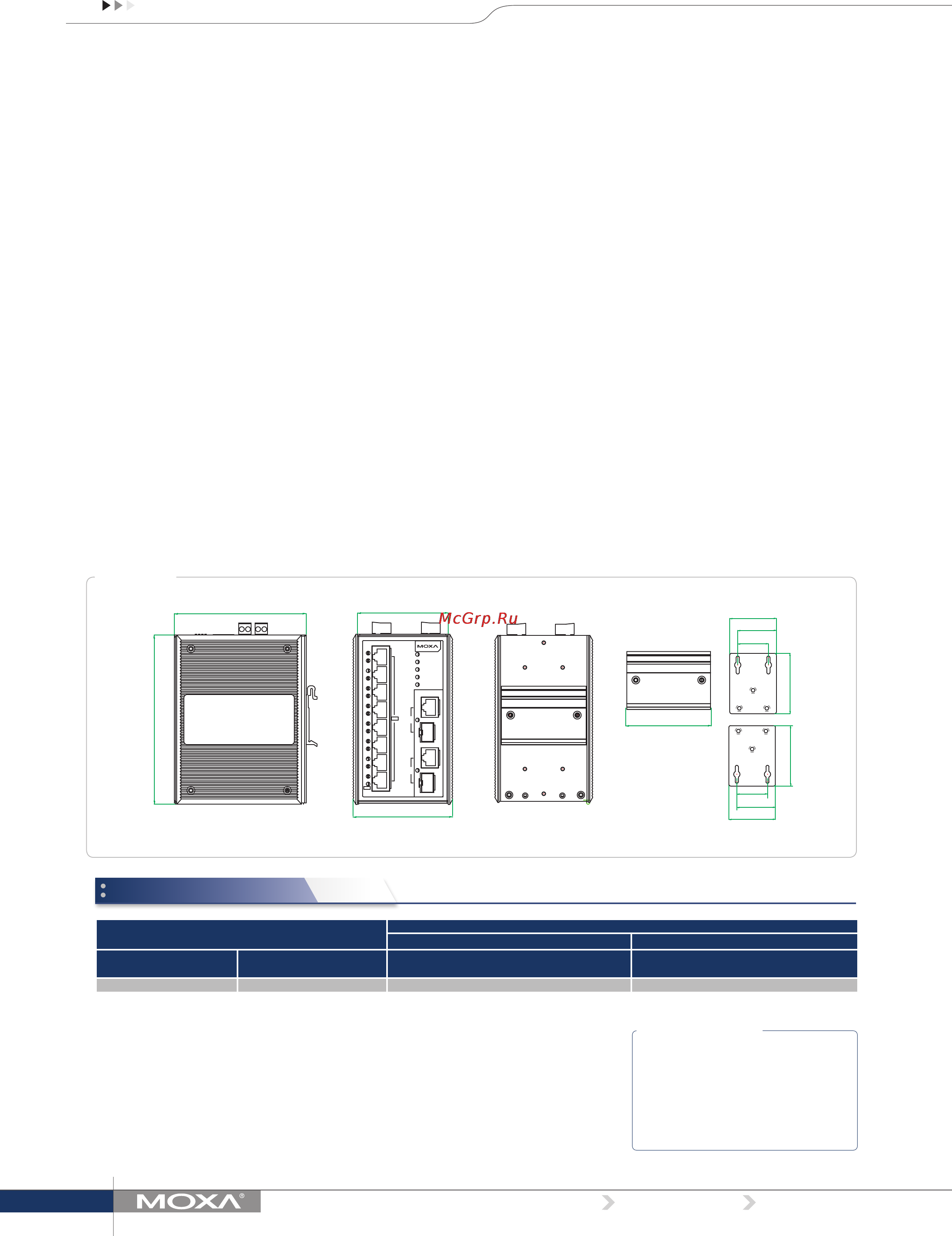

Dimensions
Unit: mm (inch)
Side View Front View Rear View DIN-Rail/Panel Mounting Kit
105 (4.13) 72 (2.83)
70 (2.76)
67 (2.64)67 (2.64)
51.6 (2.03)
51.6 (2.03)
42.8 (1.69)
42.8 (1.69)
34 (1.34)
34 (1.34)
79.2 (3.12)
135 (5.31)
7
8
5
6
3
4
1
10/100
10/100/1000
PoE+
EDS-P510A-8PoE-2GTXSFP
2
PoE+
G1
G2
PWR1
PWR2
FAULT
MSTR/HEAD
CPLR/TAIL
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C operating
temperature
DR-75-48/120-48: 75/120 W DIN-rail 48 VDC power supplies
DRP-240-48: 240 W DIN-rail 48 VDC power supplies
RK-4U: 4U-high 19” rack mounting kit
WK-46: Wall mounting kit
Package Checklist
• EDS-P510A-8PoE switch
• RJ45 to DB9 console port cable
• Protective caps for unused ports
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
Interface
RJ45 Ports: 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation
speed
Fiber Ports: 100/1000BaseSFP slot
Console Port: RS-232 (RJ45 connector)
PoE Pinout: V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A)
DIP Switches: Turbo Ring, Master, Coupler, Reserve
LED Indicators: PWR1, PWR2, FAULT, 10/100/1000, 10/100, MSTR/
HEAD, CPLR/TAIL, PoE+
Alarm Contact: 1 relay output with current carrying capacity of 0.5 A
@ 48 VDC
Digital Inputs: 1 input with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Power Requirements
Input Voltage: 48 (46 to 57 V) VDC, redundant dual inputs (> 50 VDC
for PoE+ output recommended)
Input Current: 0.27 A @ 48 VDC (w/o PDs connected), 0.42 A @ 48
VDC (w/ 8 PDs connected, excluding PDs’ consumption)*
Overload Current Protection: Present
Connection: 2 removable 2-contact terminal blocks
Reverse Polarity Protection: Present
*When selecting power supply, check the PD power consumption
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions: 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)
Weight: 1030 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508
Hazardous Location: UL/cUL Class 1 Division 2
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3
Traffic Control: NEMA-TS2
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time: 710,166 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
