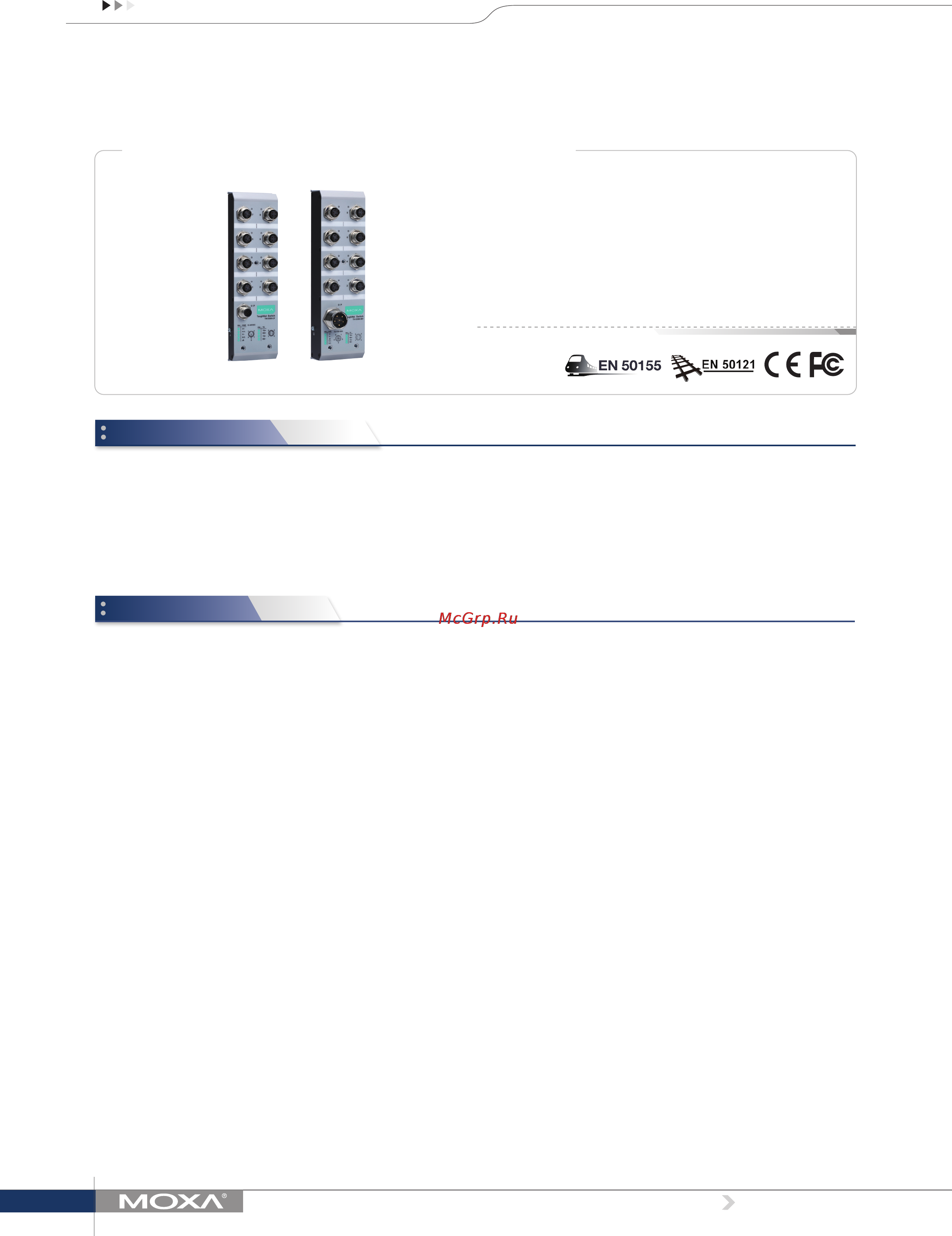

Introduction

Speciﬁcations

TN-5308 Series

EN 50155 8-port unmanaged Ethernet switches

The ToughNet TN-5308 series M12 unmanaged Ethernet switches

are designed for industrial applications in harsh environments. The

TN series switches use M12 connectors to ensure tight, robust

connections, and guarantee reliable operation against environmental

disturbances, such as vibration and shock. The TN-5308 series

Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE

802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X

auto-sensing, and provide an economical solution for your industrial

Ethernet network. Models with an extended operating temperature

range of -40 to 75°C are also available. The TN-5308 series Ethernet

switches comply with those EN 50155 requirements that make

products more suitable for rolling stock applications, including

operating temperature, power input voltage, surge, ESD, and vibration,

making the switches suitable for a variety of industrial applications.

› M12 connectors and IP40 metal housing

› Supports IEEE 802.3/802.3u/802.3x

› Essential compliance with EN 50155*

› -40 to 75°C operating temperature range (T models)

*Moxa deﬁnes “essential compliance” to include those EN 50155 requirements

that make products more suitable for rolling stock railway applications.

Technology

Standards:

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X)

IEEE 802.3x for Flow Control

Processing Type: Store and Forward

Interface

M12 Ports: 10/100BaseT(X) auto negotiation speed, F/H duplex mode

and auto MDI/MDI-X connection

Power Requirements

Input Voltage:

• TN-5308-LV: 12/24/36/48 VDC

• TN-5308-MV: 72/96/110 VDC

Note: Compliant with EN 50155 on 24/48/72/96/110 VDC

Operating Voltage:

• TN-5308-LV: 8.4 to 60 VDC

• TN-5308-MV: 50.4 to 137.5 VDC

Input Current:

• TN-5308-LV: 0.19 A @ 12 VDC,

0.10 A @ 24 VDC, 0.054 A @ 48 VDC

• TN-5308-MV: 0.033 A @ 72 VDC,

0.024 A @ 96 VDC, 0.021 A @ 110 VDC

Connection:

• TN-5308-LV: M12 connector

• TN-5308-MV: M23 connector

Reverse Polarity Protection: Present

Physical Characteristics

Housing: Metal

IP Rating: IP40 protection

Dimensions:

TN-5308-LV: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)

TN-5308-MV: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)

Weight:

TN-5308-LV: 485 g (1.07 lb)

TN-5308-MV: 685 g (1.51 lb)

Installation: Panel mounting, DIN-rail mounting (with optional kit:

DK-TN-5308)

Environmental Limits

Operating Temperature:

Standard Models: -25 to 60°C (-13 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certiﬁcations

Safety: UL/cUL 508, EN 60950-1 (LVD)

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m

IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV

IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV

IEC 61000-4-6 CS: 10 V

IEC 61000-4-8

Rail Trafﬁc: (for panel mounting installations)

EN 50155 (essential compliance*), EN 50121-4, EN 45545-2

*Moxa deﬁnes “essential compliance” to include those EN 50155 requirements

that make products more suitable for rolling stock railway applications.

Shock: EN 50155, IEC 61373

Freefall: IEC 60068-2-32

Vibration: EN 50155, IEC 61373

Note: Please check Moxa’s website for the most up-to-date certication status.
