- 5 -

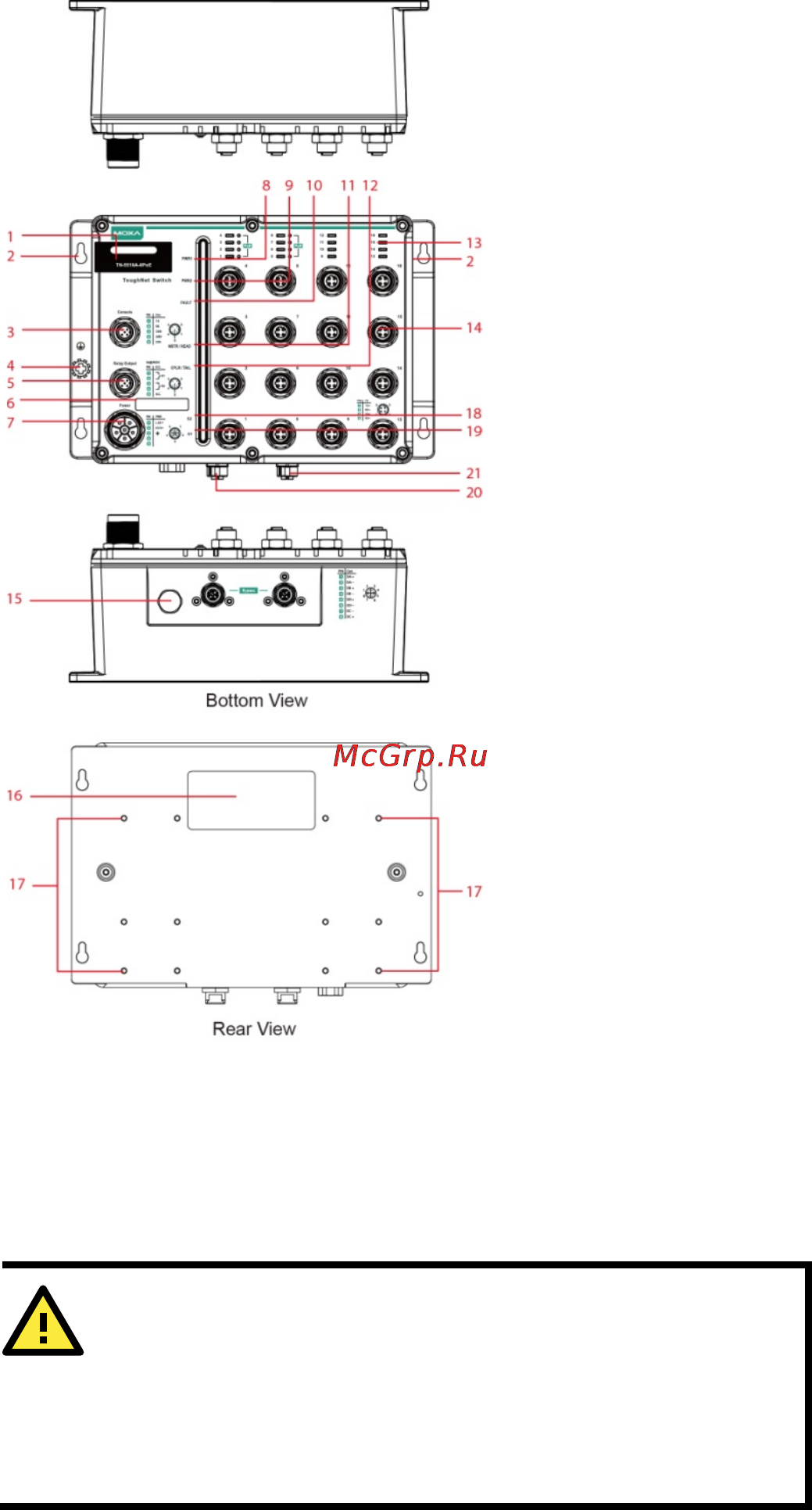

TN-5516A-8PoE/5518A-PoE Panel Layouts
1. Model name
2. Screw holes for
panel mounting kit
3. Console port
4. Grounding screw
5. Relay output port
6. Power input voltage
range indicator
7. Power input port
(male 5-
pin shielded
M23 connector)
8. PWR1 LED: for
power input 1
9. PWR2 LED: for
power input 2
10.
FAULT LED
11.
MSTR/HEAD LED: for
ring master or chain
head
12.
CPLR/TAIL LED: for
ring coupler or chain
tail
13.
TP port’s 10/100
Mbps LED
14.
10/100BaseT(X)
port (M12 D-coded
4-pin female
connector)
15.
Waterproof vent
16.
Product label
17.
12 screw holes for
DIN r
ail mounting kit
18.
E2 LED: Down-side
E2 Gigabit port's
10/100/1000 Mbps
LED
19.
E1 LED: Down-side E1 Gigabit port's 10/100/1000 Mbps LED
20.
Gigabit Ethernet port E1 (corresponding to port 17 in the TN-5518
A
User’s Manual)
21.
Gigabit Ethernet port E2 (corresponding to port 18 in the TN-5518
A
User’s Manual)
ATTENTION
DO NOT open or remove the vent (#15). Once the seal has been
removed, the warranty
becomes invalid.
Exposed connectors (including 3, 5, and 14) when not in use
must be tightly covered with protective caps (an optional
accessory) to ensure IP54-rated protection.
