Panel/Wall Mounting

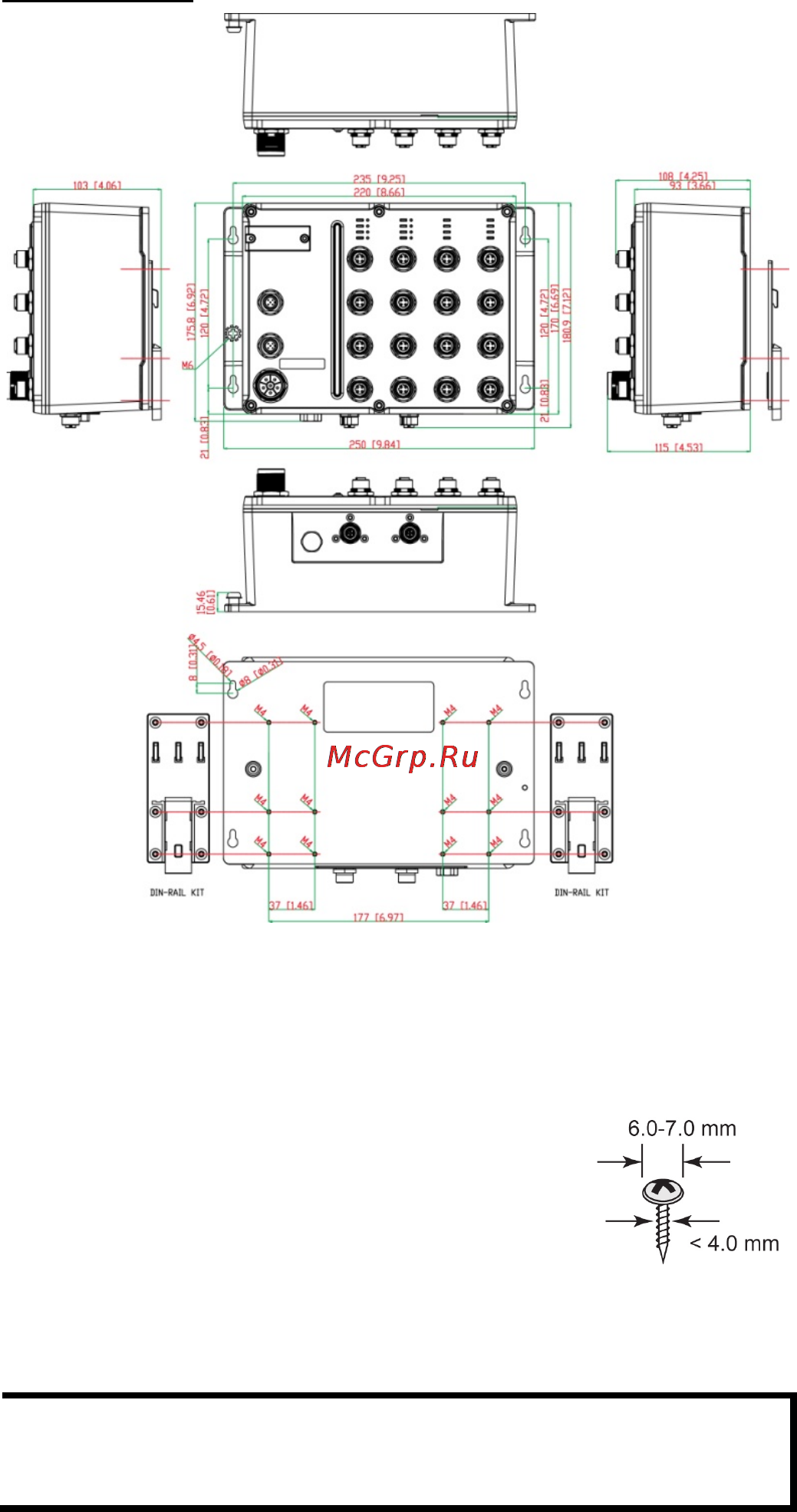

Mounting the TN-5516A/5518A to a wall requires 4 screws. Use the

ToughNet switch as a guide to mark the correct positions of the 4 screws.

se the 4 screws in the panel mounting kit. If you

would like to use your own screws, make sure the

is between 6.0 mm and 7.0 mm in

diameter and the shaft

is less than 4.0 mm in

diameter, as shown at the right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the ToughNet switch between the wall and the

Before tightening the screws into the wall, make sure the screw

head and shaft size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the ToughNet switch.
