Industry-specific Ethernet Switches
Ordering Information
8 (0.31)
Ø8 (Ø0.31)
Ø4.5
(Ø0.18)
235 (9.25)
120 (4.72)
220 (8.66)
170 (6.69)
250 (9.84)
21 (0.83)
120 (4.72)21 (0.83)
37 (1.46) 37 (1.46)
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
M4
177 (6.97)
175.8 (6.92)
108 (4.25)
93 (3.66)
103 (4.06)
15.46
(0.61)
M6
115 (4.53)
50 (1.97)
55 (2.17)
181.4 (7.14)

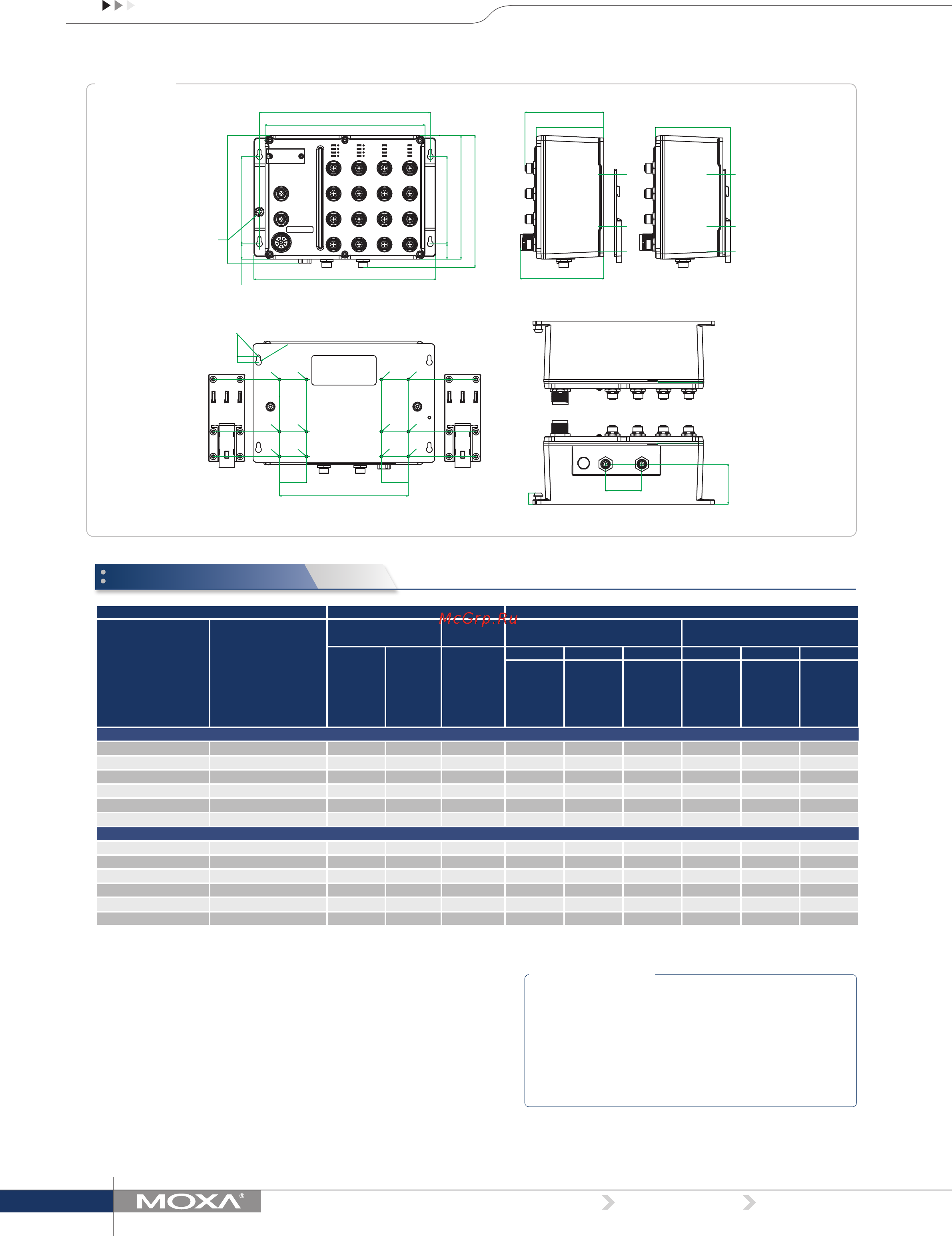

Dimensions
Unit: mm (inch)
Side View (including
DIN-Rail Mounting Kit)Front View
Rear View
DIN-Rail
Mounting Kit
Side View
Top & Bottom Views
TN-5818 Series
Available Models Port Interface Power Supply
Standard Temperature
(-25 to 60°C)
Wide Temperature
(-40 to 75°C)
Front Cabling
Down
Cabling
Power Supply 1 Power Supply 2
10/100
BaseT(X)
M12
connector
10/100
BaseT(X)
M12
connector,
bypass
relay
function
10/100/1000
BaseT(X) M12
connector,
bypass relay
function
LV MV HV LV MV HV
12/24/36/48
VDC (8.4 to
60 V),
non-isolated
72/96/110
VDC (50.4 to
154 V),
isolated
88 to 300
VDC and 85
to 264 VAC,
isolated
12/24/36/48
VDC (8.4 to
60 V),
non-isolated
72/96/110
VDC (50.4 to
154 V),
isolated
88 to 300
VDC and 85
to 264 VAC,
isolated
TN-5816 Series
TN-5816BP-LV-LV TN-5816BP-LV-LV-T 12 4 – 1 – – 1 – –
TN-5816BP-LV-MV TN-5816BP-LV-MV-T 12 4 – 1 – – – 1 –
TN-5816BP-LV-HV TN-5816BP-LV-HV-T 12 4 – 1 – – – – 1
TN-5816BP-MV-MV TN-5816BP-MV-MV-T 12 4 – – 1 – – 1 –
TN-5816BP-MV-HV TN-5816BP-MV-HV-T 12 4 – – 1 – – – 1
TN-5816BP-HV-HV TN-5816BP-HV-HV-T 12 4 – – – 1 – – 1
TN-5818 Series
TN-5818-2GTXBP-LV-LV TN-5818-2GTXBP-LV-LV-T 12 4 2 1 – – 1 – –
TN-5818-2GTXBP-LV-MV TN-5818-2GTXBP-LV-MV-T 12 4 2 1 – – – 1 –
TN-5818-2GTXBP-LV-HV TN-5818-2GTXBP-LV-HV-T 12 4 2 1 – – – 1
TN-5818-2GTXBP-MV-MV TN-5818-2GTXBP-MV-MV-T 12 4 2 – 1 – – 1 –
TN-5818-2GTXBP-MV-HV TN-5818-2GTXBP-MV-HV-T 12 4 2 – 1 – – – 1
TN-5818-2GTXBP-HV-HV TN-5818-2GTXBP-HV-HV-T 12 4 2 – – 1 – – 1
*GTXBP: Giga Ethernet Copper port with bypass relay
Note: Conformal coating is available on request.
Optional Accessories (must be purchased separately)
Power Cords, M12 Connectors, Protective Caps: See page 2-29
MXview: Moxa industrial network management software with 50, 100, 250,
500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP
devices
ABC-01-M12: Configuration backup and restore tool for TN series managed
Ethernet switches, 0 to 60°C operating temperature
Package Checklist
• TN-5816 or TN-5818 series switch
• M12-to-DB9 console port cable
• 2 protective caps for console and relay output ports
• Panel mounting kit
• Documentation and software CD
• Hardware installation guide
• Warranty card
