Changing Woofer Orientation

When installing the subwoofer in a cabinet it is recom-

mended that the subwoofer be converted to a front firing

configuration. (see figure 9).

Prepare a flat surface with a blanket to protect the finish.

Unplug signal and power connections. Remove the grill

cloth.

2 Carefully lay the subwoofer on its side. Using a coin,

unscrew the attached feet. (see figure 10).

Change the location of the four feet.

4 Using a coin, reinstall the feet (see figure 10).

Please note, 90° RCA adaptors may be required to

make signal connections. Two 90° RCA adaptors are

included with the subwoofer.

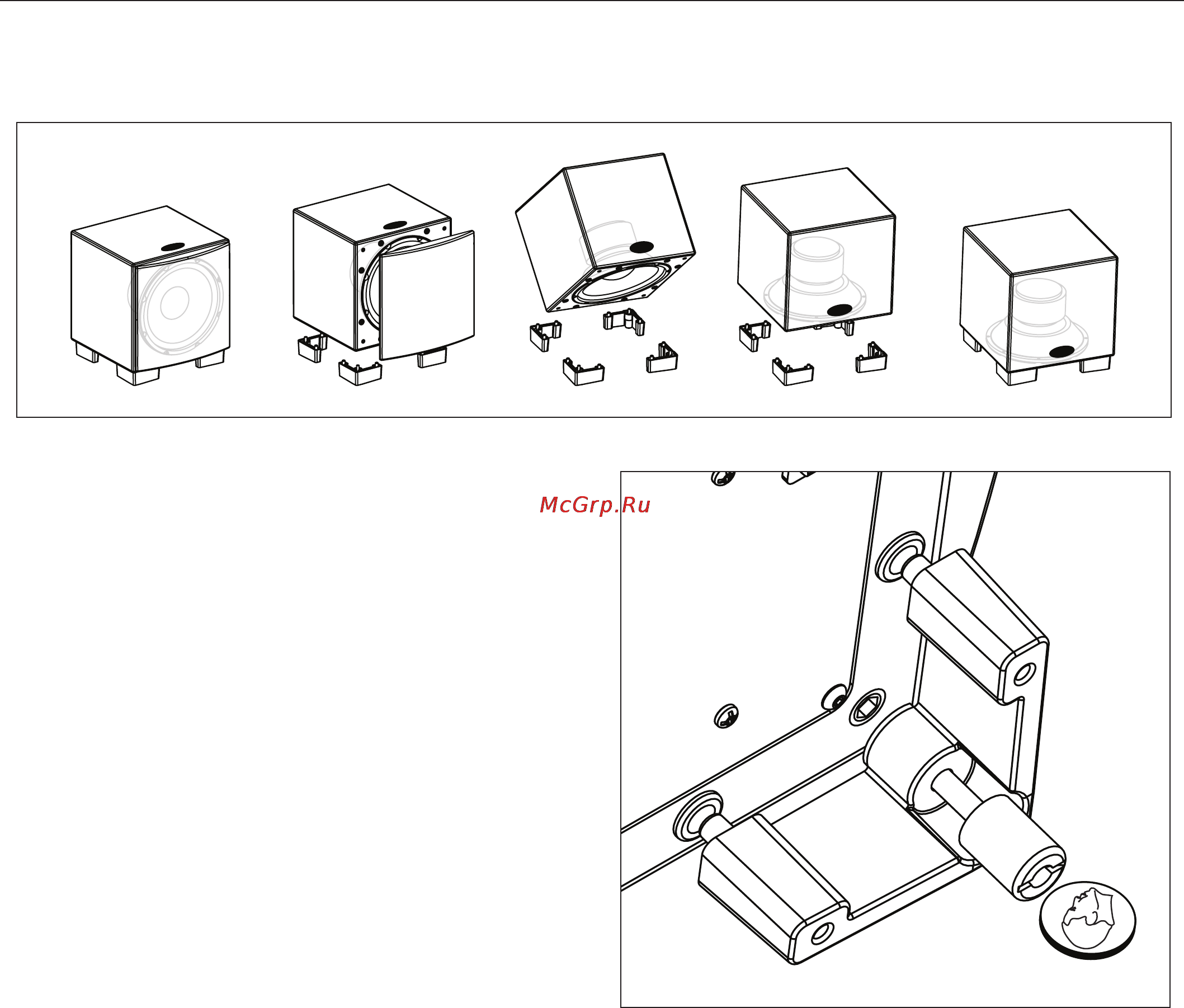

Figure 10. To change woofer orientation, use a coin to unscrew the

attached feet, change location, and reinstall.

Figure 9. The Dynamo 1000W and Dynamo 700W are capable of both front-firing and down-firing woofer orientations.
