M-Audio Super DAC [3/12] Features

FEATURES

• High-performance stereo D/A converter in a standard half-rack

package.

• D/A converter: 24-bit, 96kHz, 128x oversampling.

• Dynamic Range: 115 dB (A-weighted).

• Supports 16-, 18-, 20- and 24-bit data widths.

• Supports sample rates from 22kHz to over 100kHz.

• Front panel Format button selects between three rear inputs: TOSLINK

optical, S/PDIF on RCA, or AES/EBU on XLR.

• Audio outputs: balanced on XLR, unbalanced on 1⁄4” (Tip-Sleeve)

connectors. Both outputs are always active.

• Nominal output levels: +4dBu balanced, -10dBV unbalanced.

• Peak output levels: +20dBu balanced, +6dBV unbalanced.

• Sample rate automatically locks to that of incoming digital data.

• Front panel LEDs indicate current digital input selection.

• "D/A Valid" LED indicates valid incoming digital data.

PANEL DESCRIPTION

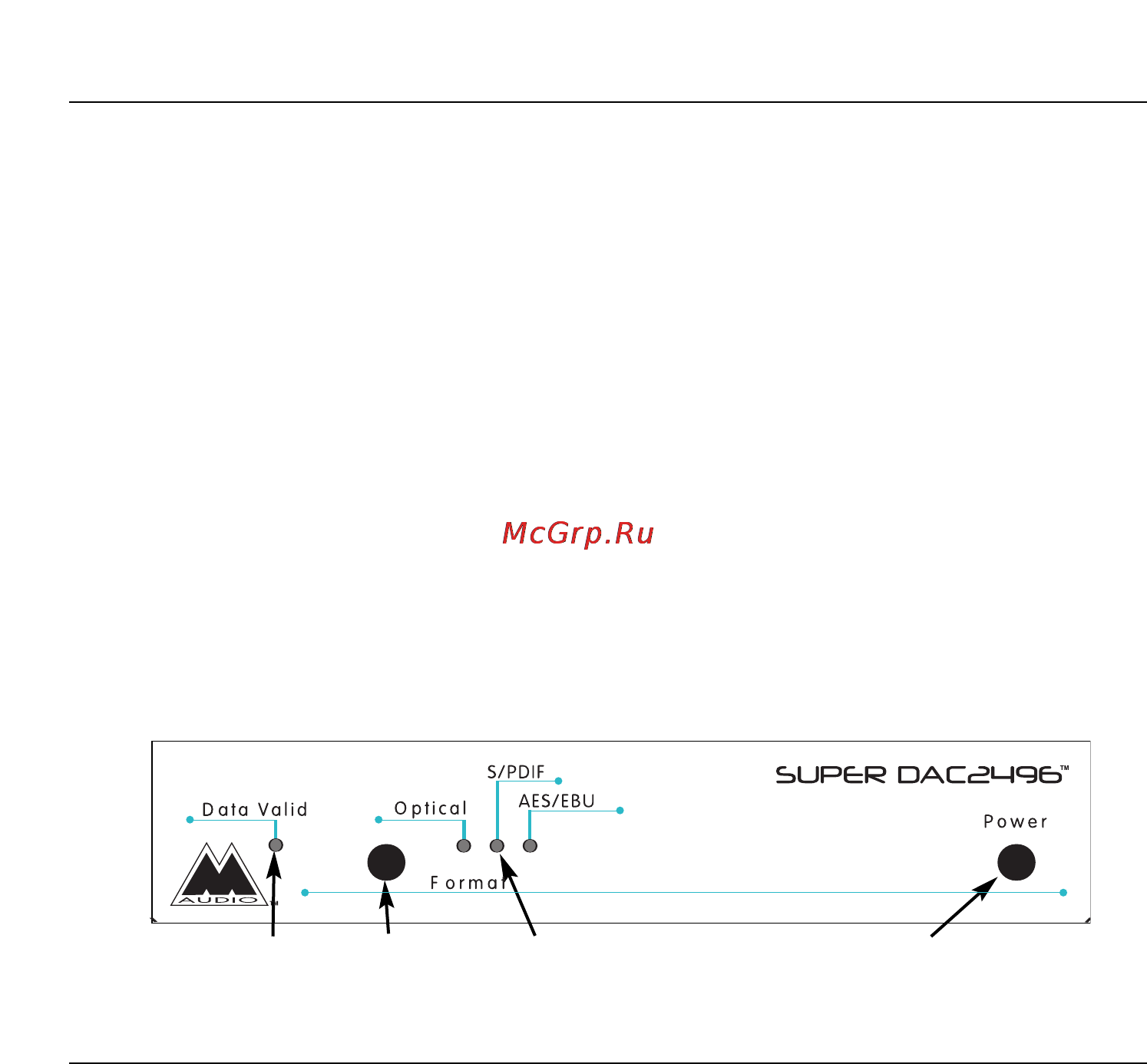

Front Panel

1. Data Valid LED: This LED indicates valid incoming digital data at the

currently selected digital input (TOSLINK optical, S/PDIF or

AES/EBU). This LED lights whenever the Super DAC recognizes and

is locked to that data.

2. Format Button: This pushbutton selects which digital input (TOSLINK

optical, S/PDIF or AES/EBU) is the input source to the D/A. Pressing

this button cycles through the three options.

Format LEDs: These LEDs indicate which digital input has been

selected by the Format button: TOSLINK optical, S/PDIF or AES/EBU.

Power Switch: When this button is pressed in (and the power adapter

is properly plugged in), power is applied to the unit. When the switch

is in the out position, power is switched off.

➋

➌

➍

➊
