M-Audio Super DAC [5/12] Typical setup

digital inputs of your SUPER DAC 2496. Take the analog outputs of the Super

DAC and plug them into the analog inputs of your "target" device. For more

information or suggestions for use, see the next section, "Typical Setup."

NOTE: For best results, use good quality digital cable. Digital AES/EBU

cable should be purchased in a professional audio store and has

110-ohm characteristic impedance. Good quality 75-ohm video cable will

work for coaxial S/PDIF.

After all connections are made, power up your equipment. Start with your

sound source, then the Super DAC, and then your audio target or sound

system.

TYPICAL SETUP

Your SUPER DAC 2496 is capable of receiving digital audio in three different

formats, AES/EBU on an XLR connector, S/PDIF on coaxial (RCA), and

TOSLINK on an optical connector. The source of this digital audio could be a

professional DAT deck, a computer digital I/O card, digital mixer, hard disk

recorder, consumer DATs, Mini Disc, DVD or CD player.

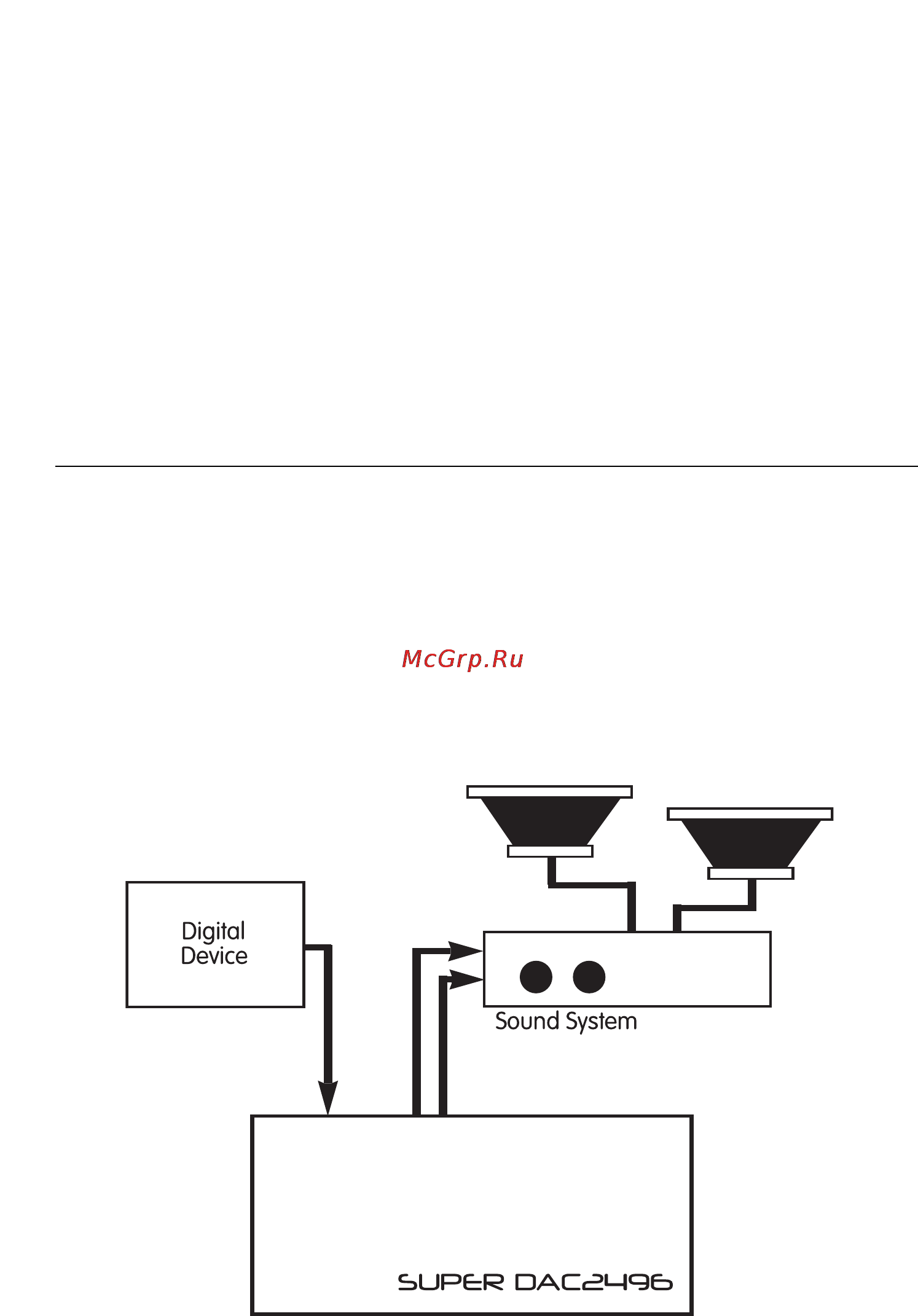

Typical Setup Fig. 1 shows any of these devices monitored through a sound

system.

ypical Setup Fig.
