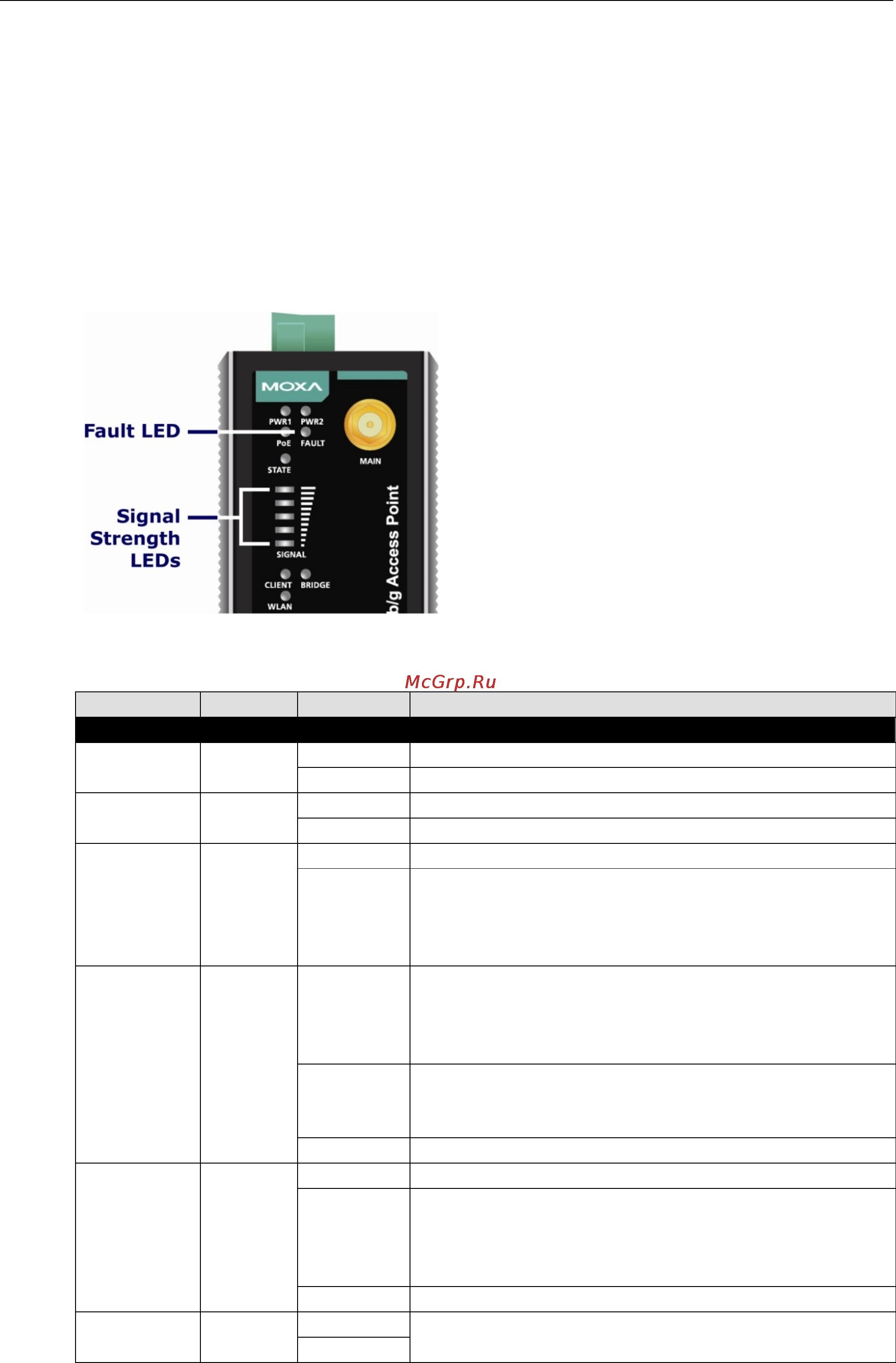

AirWorks AWK-3121 Introduction
1-7
Functional Design
LED Indicators
The LEDs on the front panel of the AWK-3121 provide a quick and easy means of determining the current
operational status and wireless settings.
The FAULT LED indicates system failures and user-configured events. If the AWK-3121 cannot retrieve the IP
address from a DHCP server, the FAULT LED will blink at one second intervals. The SIGNAL LEDs indicate
signal strength, and only operate in Client mode.
The following table summarizes how to read the device’s wireless settings from the LED displays. More
information is available in Chapter 3 in the “Basic Wireless Settings” section.
LED Color State Description
Front Panel LED Indicators (System)
PWR1 Green
On Power is being supplied from power input 1.
Off Power is not being supplied from power input 1.
PWR2 Green
On Power is being supplied from power input 2.
Off Power is not being supplied from power input 2.
PoE
(discontinued
starting with
HW Rev
2.0.0)
Amber
On Power is being supplied via PoE.
Off
Power is not being supplied via PoE.
FAULT Red
Blinking
slowly at
1-sec
intervals
Cannot get an IP address from the
DHCP server
Blinking fast
at 0.5-sec
intervals
IP address conflict
Off Error condition does not exist.
STATE
Green/
Red
Green Software Ready
Green
Blinking fast
at 1-sec
intervals
The AWK has been located by AWK
Search Utility
Red Booting error condition
SIGNAL
(5 LEDs)
Green
On
Signal level(for Client/Slave mode only)
Off
