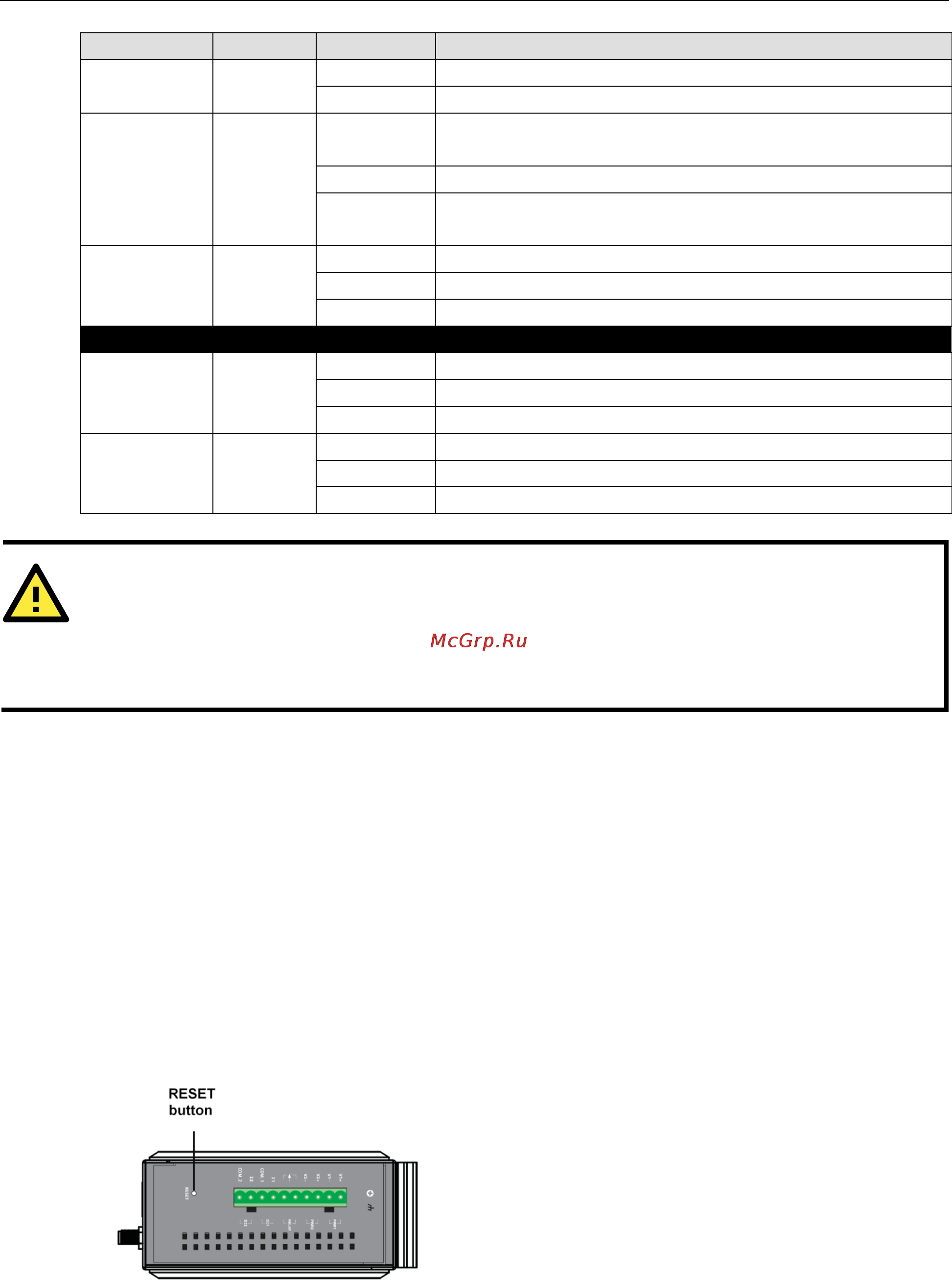

AirWorks AWK-3121 Introduction
1-8
LED Color State Description
BRIDGE Green
On WLAN function is in Bridge(WDS) Mode.
Off WLAN is not in Bridge(WDS) Mode.
CLIENT Green
On
WLAN function is in Client/Slave mode and AWK has establish
ed
a link with an AP.
Blink WLAN data communication is run in Client/Slave mode
Off
WLAN is not in Client Mode or AWK has not established a link with
an AP.
WLAN Amber
On WLAN functions in AP/Bridge/Master mode.
Blink WLAN’s data communication is run in AP/Bridge/Master mode
Off WLAN is not in use or not working properly
TP Port LED Indicators (Port Interface)
100M Green
On TP port’s 100 Mbps link is active.
Blink Data is being transmitted at 100 Mbps
Off TP port’s 100 Mbps link is inactive.
10M Amber
On TP port’s 10 Mbps link is active.
Blink Data is being transmitted at 10 Mbps
Off TP port’s 100 Mbps link is inactive.
ATTENTION
T
he FAULT, SIGNAL, CLIENT, BRIDGE, and WLAN LEDs lighting up simultaneously and blinking at
one
-second intervals indicates that the system has failed to boot. This may be due to improper
operation or
issues
such as an unexpected shutdown during firmware update. Instructions on how to recover the
firmware
can be found in Chapter 6 in the
“Firmware Recovery” section.
Beeper
The beeper emits two short beeps when the system is ready.
Reset Button
The RESET button is located on the top panel of the AWK-3121. You can reboot the AWK-3121 or reset it to
factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip.
• System reboot: Hold the RESET button down for under 5 seconds and then release.
• Reset to factory default: Hold the RESET button down for over 5 seconds until the STATE LED starts
blinking green. Release the button to reset the AWK-3121.
