Industrial Wireless IEEE 802.11 Solutions

Directional panel antenna: 18 dBi at 2.4 GHz

ANT-WSB-PNF-18

High-gain antenna to enhance performance ›

Waterproof N-type connector ›

Lightweight ›

Compact form factor ›

Pole-mounting support ›

Housing provides IP65 protection ›

-40 to 80˚C operating temperature range ›

Speciﬁcations

Antenna Characteristics

Frequency: 2.4 to 2.5 GHz

Antenna Type: Directional panel type

Typical Antenna Gain: 18 dBi

Connector: N-type (female)

Impedance: 50±5 ohms

Polarization: Linear

HPBW/horizontal: 30°

HPBW/vertical: 20°

V.S.W.R.: 1:1.5 max.

Power Handling: 15 W max.

Physical Characteristics

Weight: 310 g

Dimensions: 270 x 205 x 15 mm

IP Rating: IP65

Radome Color: Grayish white

Radome Material: PC and ABS

Environmental Limits

Operating Temperature: -40 to 80°C (-40 to 176°F)

Storage Temperature: -40 to 80°C (-40 to 176°F)

Ambient Relative Humidity: 5 to 95% (30°C,

non-condensing)

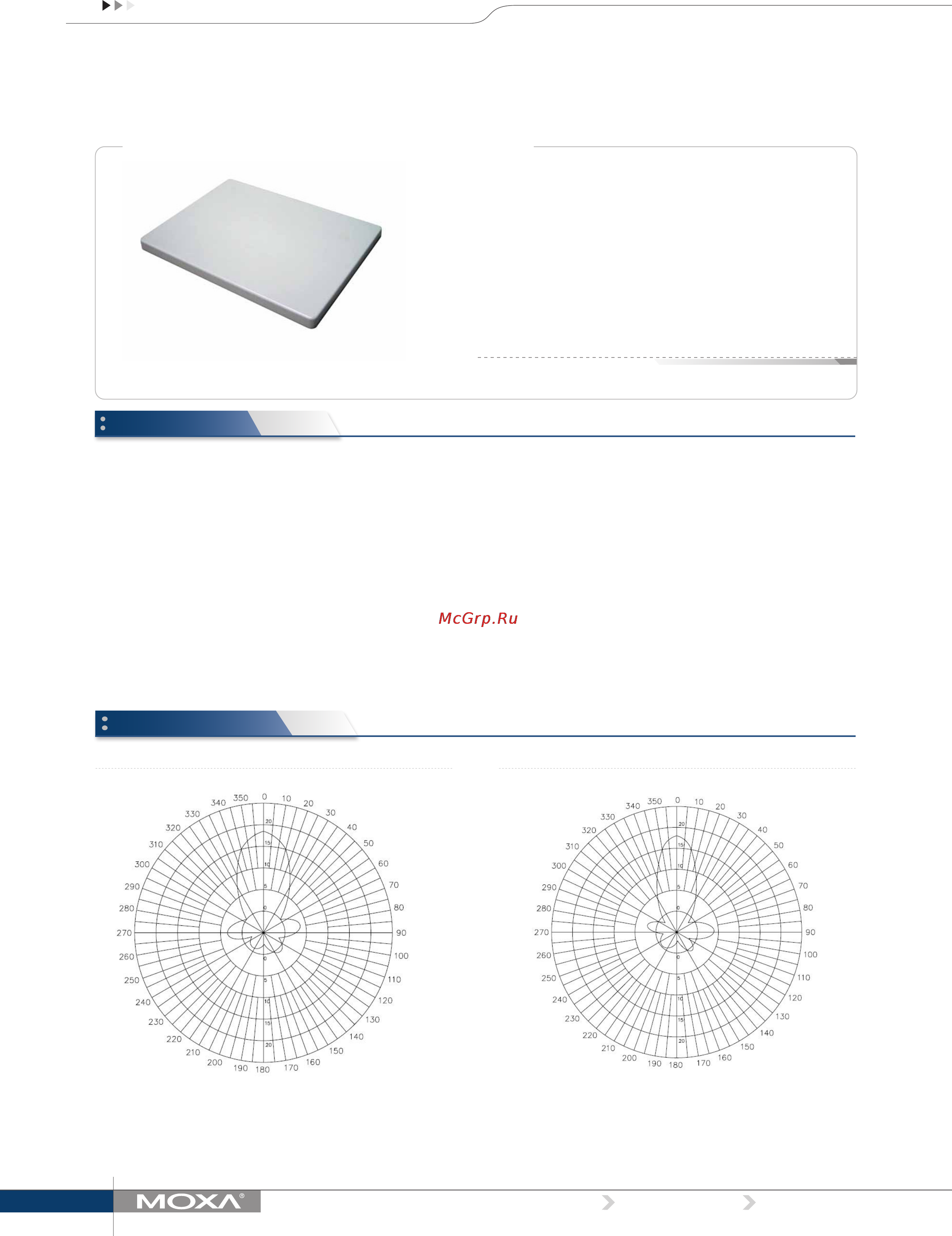

Field Patterns

E-PlaneH-Plane
