- 7 -

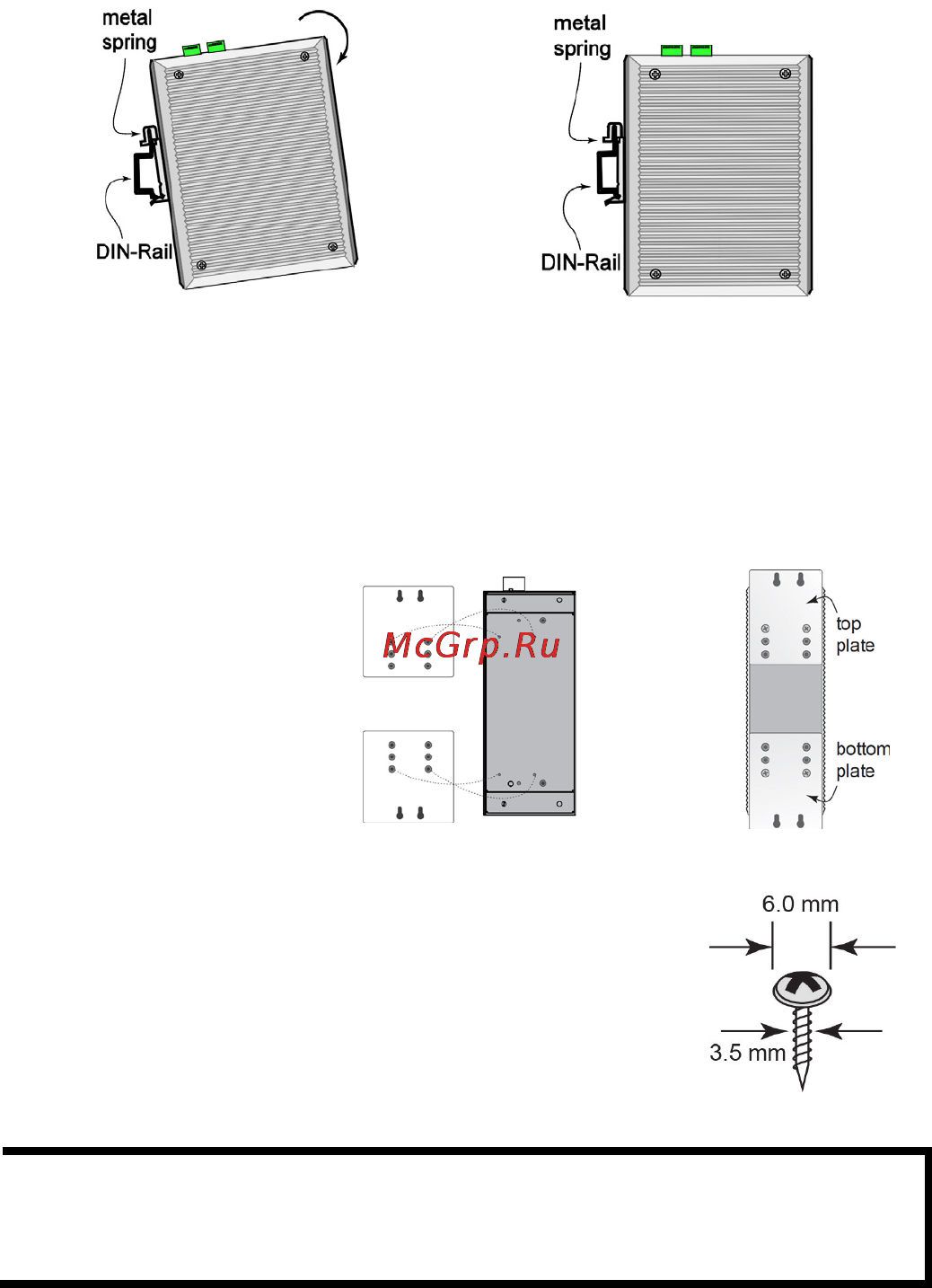

DIN-Rail Mounting
The aluminum DIN-rail attachment plate should already be fixed to the
back panel when you take it out of the box. If you need to reattach the
DIN-rail attachment plate, make sure the stiff metal spring is situated
towards the top, as shown in the figures below.
STEP 1: Insert the top of the
DIN
-Rail into the slot just below
the stiff metal spring.
STEP 2: The DIN-Rail attachment
unit will snap into place as shown
below.
To remove the OBU from the DIN-Rail, simply reverse Steps 1 and 2
above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount the OBU-102
on the wall, as shown in the following figures.
STEP 1: Remove the
aluminum DIN
-Rail
attachment plate from
the
OBU
-102’s rear panel, and
then attach the wall mount
plates as shown
in the
diagram
at the right.
⇒
STEP 2: Mounting the OBU-102 on the wall requires 4
screws. Use the
switch, with wall mount plates
attached, as a guide to mark the correct locations of
the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the shafts should be less
than 3.
5 mm in diameter, as shown in the figure at
the
right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw into one
of the keyhole-shaped apertures of the wall mounting plates.
Do not screw the screws in completely—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
