P/N: 1802011002014

UPort 1100 Series

USB-to-Serial Converter

Quick Installation Guide

Fifth Edition, January 2015

Overview

The UPort 1100 Series is part of Moxa’s UPort Line of USB-to-Serial

adaptors. The UPort product line provides a wide range of

easy-to-use solutions for adding Windows COM ports and Linux tty

ports through a PC’s USB port. The UPort 1100 series includes the

following models:

UPort 1110:

1-port RS-232 USB-to-Serial Converter.

UPort 1130:

1-port RS-422/485 USB-to-Serial Converter.

UPort 1130I:

1-port RS-422/485 USB-to-Serial Converter w/

Isolation Protection.

UPort 1150:

1-port RS-232/422/485 USB-to-Serial Converter.

UPort 1150I:

1-port RS-232/422/485 USB-to-Serial Converter w/

Isolation Protection.

ATTENTION

Before plugging the adaptor into your computer’s USB port,

we recommend installing the driver first. Please refer to

Section 3 for driver installation procedures.

After the driver is installed, the adaptor can be plugged into any

upstream type A USB port, either on a PC host or on an upstream

hub. The adaptor is hot-pluggable, so there is no need to power

down your computer prior to installation. The Found New

Hardware wizard will automatically locate the appropriate drivers,

and various windows will appear as the adaptor is being installed.

After the Found New Hardware wizard finishes installing the

adaptor, the Windows Device Manager may be used to modify the

settings for the new COM port. The new COM port will be listed

under Ports (COM & LPT) and the new adapters will be listed under

Multi-port serial adapters. For more information about port

configuration, please refer to the UPort 1100 Series user manual.

Package Checklist

Before installing the adaptor, please verify that the package

contains the following items:

• UPort 1100 Series USB-to-Serial Converter

• UPort Documentation and Software CD-ROM

• UPort 1100 Series Quick Installation Guide

• 5-year Warranty Statement

The UPort 1130/1130I/1150/1150I will also come with the

following item:

• Mini DB9F-to Terminal-Block Converter

NOTE: Please notify your sales representative if any of the

above items are missing or damaged.

Hardware Introduction

The following instructions and screenshots are from a PC running

Windows XP (32-bit), but the same instructions apply for a

Windows 64-bit platform. If you want to know which Windows OSs

Moxa supports, please go to support center on Moxa’s website to

download the latest driver.

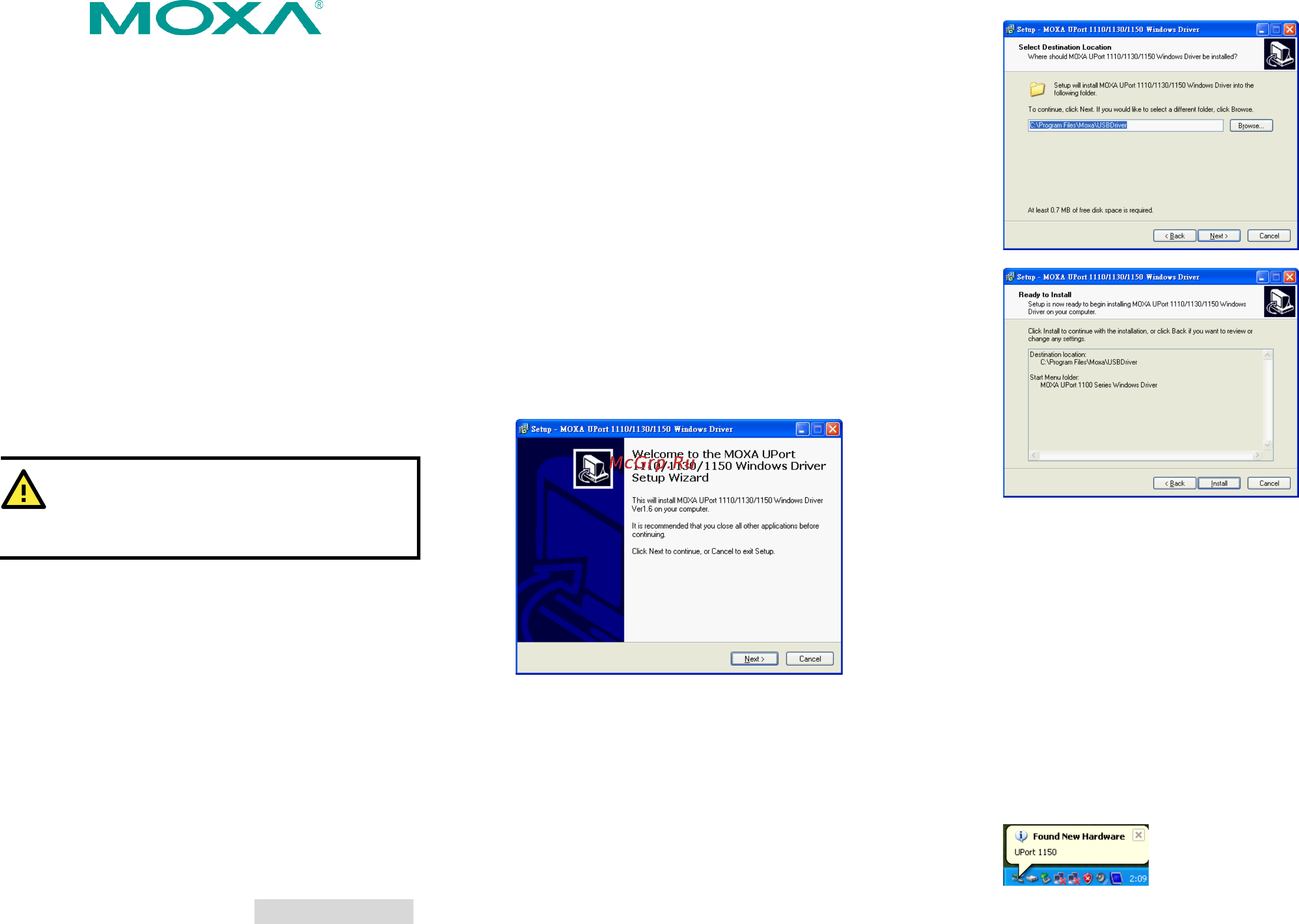

1. Run Setup.exe, located on the Documentation and Software

CD-ROM. Click on Next to begin installing the driver.

2. Click on Next to install the driver in the indicated folder.

3. Click on Install to proceed with installation.

4. Then, click Finish to complete the driver installation.

Installing the Hardware

1. Case 1: The UPort Driver is Certified

If the UPort driver that you installed has been certified by

Microsoft, the UPort and the UPort’s serial ports will be

installed automatically when you plug the UPort into your

computer’s USB port.

Case 2: The UPort Driver is NOT Certified

If the UPort driver that you installed has not been certified by

Microsoft, then plugging the driver into your computer’s USB

port will activate the UPort installation program. The first part

of the installation procedure installs the software for the UPort

itself (the second part of the procedure installs the serial ports).

Plug the adaptor into any upstream USB port (e.g., a USB port

on your computer). Windows are done with hardware

installation at this point and may continue on to port

configuration. Windows will auto-detect the UPort cable and

show Found New Hardware in the System Tray.
