www.moxa.com/support

The Americas:

+1-714-528-6777 (toll-free: 1-888-669-2872)

Europe:

+49-89-3 70 03 99-0

Asia-Pacific:

+886-2-8919-1230

China:

+86-21-5258-9955 (toll-free: 800-820-5036)

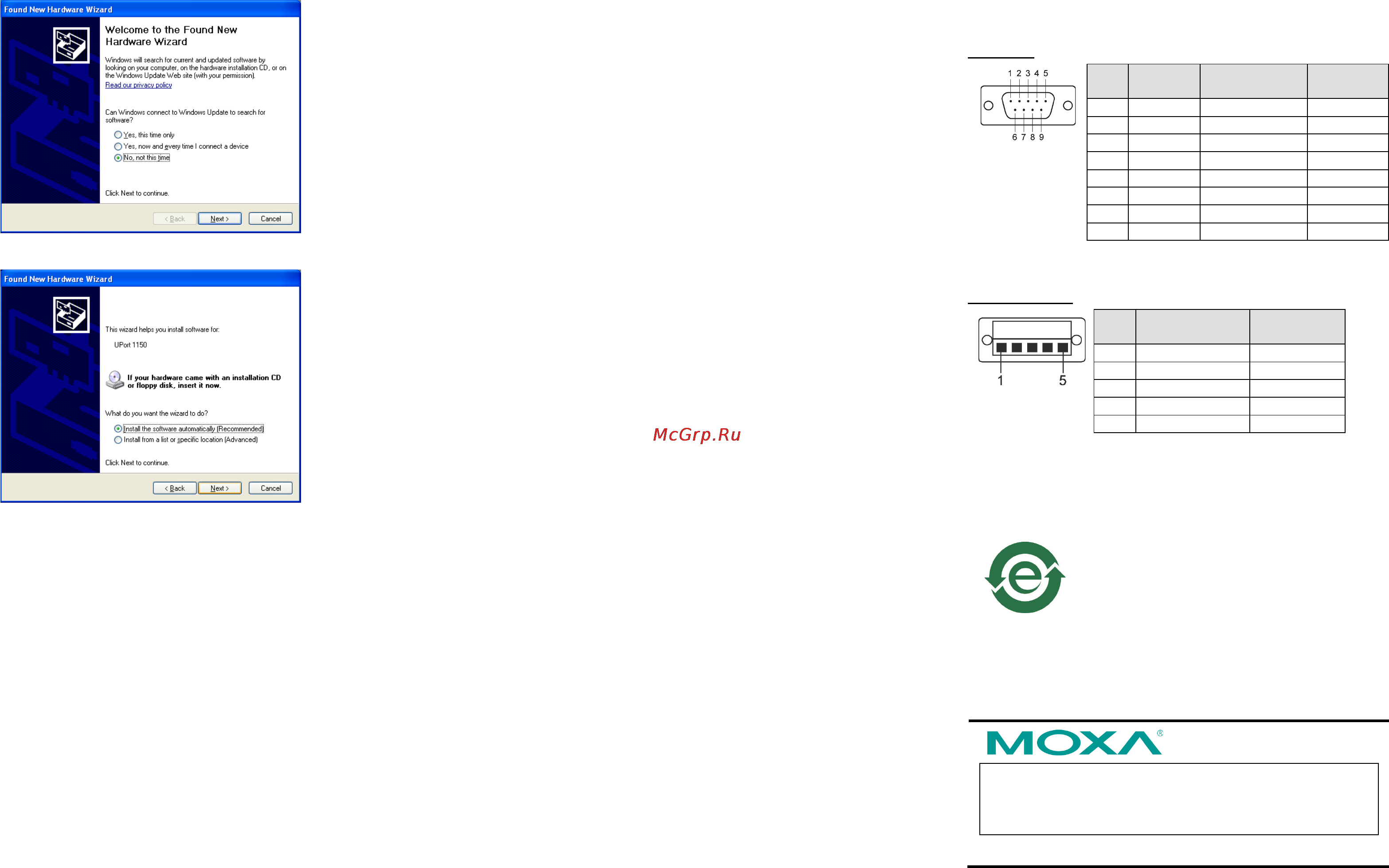

2. The following window will appear. Select No, not this item

click Next.

3. Select Install the software automatically

(Recommended), and then click Next to proceed.

4. The next window cautions you that this software has not

passed Windows logo testing. This is a standard warning, and

Moxa has thoroughly tested the driver for safe Windows

operation. Please click Continue Anyways to proceed. Then,

click Finish to complete the driver installation.

5. Repeat Step2 to Step 4 until COM port is installed.

Installing the Linux Driver for the UPort 1100

Series

Linux Kernel 2.4.x

Execute the following commands from the Linux prompt:

# mount /dev/cdrom/ mnt

# cd /

# mkdir moxa

# cd /moxa

# cp /mnt/<driver directory

>/driv_linux2.4_uport1p_vx.x_build_yymmddhh.tgz/moxa

# tar -xvfz driv_linux2.4_uport1p_vx.x_build_yymmddhh.tgz

# cd /mxu1100_24/driver

# make clean

# make install

# modprobe mxuport1100_24

*Note: yy = year, mm = month, dd = day, hh = hour

Linux Kernel 2.6.x

Execute the following commands from the Linux prompt:

# mount /dev/cdrom/ mnt

# cd /

# mkdir moxa

# cd /moxa

# cp /mnt/<driver directory

>/driv_linux2.6_uport1p_v1.1_build_xx.tgz/moxa

# tar -xvfz driv_linux2.6_uport1p_v1.1_build_xx.tgz

# cd / mxu11x0/driver

# make clean

# make install

# modprobe mxu11x0

Installing the Win CE 5.0/6.0 Driver

Moxa provides two installation procedures that can be used to

install the Windows CE 5.0/6.0 driver: by “CAB file” and with the

“installation package.” In this document, we only cover the CAB

file installation. If you need to use package to install the WinCE

driver, please refer to the user’s manual.

Installation with a CAB File

Step 1: Install Microsoft ActiveSync on the source PC. Before

running ActiveSync on the source PC, use an RS-232 null modem

cable to connect the WinCE device (CEPC) to the PC.

Step 2: Go to the “Command Prompt” on the WinCE device and

execute the repllog command. A new partnership window will

appear. Select “No” and then click on “Next.” You will see

“Connected” in ActiveSync.

Step 3: Click on the “Explore” button in the ActiveSync window,

and then copy the

UP1100_COM_v1.0_Setup.CAB (For WinCE 6.0) or

UP1100_COM_v1.1_Setup.CAB (For WinCE 5.0)

file to the Mobile/Target Device.

Step 4: Double click on the CAB file to start installing the UPort

1100 series WinCE driver.

After installing the driver, plug the UPort 1100 series device into

the USB port of the WinCE Device. The driver will be loaded

automatically. At this point, the UPort 1100 series is ready to use.

Serial Port Pin Assignments

The UPort 1100 series uses male DB9 connectors. Pin assignments

are shown in the following diagram:

Male DB9

Pin RS-232

RS-422/485

(4-wire)

RS-485

(2-wire)

DCD (in)

TxD-(A)

–

RxD (in)

TxD+(B)

–

TxD (out)

RxD+(B)

Data+(B)

DTR (out)

RxD-(A)

Data-(A)

GND

DSR (in)

–

RTS (out)

–

CTS (in)

–

The UPort 1130/1130I/1150/1150I comes with a DB9 to terminal

block converter, with pin assignments as shown below:

Terminal Block

RS-422/485

(4-wire)

RS-485

(2-wire)

TxD+(B)

–

TxD-(A)

–

RxD+(B)

Data+(B)

RxD-(A)

Data-(A)

GND

Note that the converter maps pin 1 on the DB9 connector to pin 2

on the terminal block, and pin 2 on the DB9 connector to pin 1 on

the terminal block.

Certification

This product complies with Chinese RoHS

(Restriction of Hazardous Substances)

regulations for Electronic Information Product
