P/N: 1802020000011
UPort 2000 Series
USB-to-Serial Converter
Quick Installation Guide
Second Edition, January 2015
Overview
UPort is the brand name of Moxa’s USB-to-serial product line,
which provides a wide range of products and solutions to extend
Windows COM ports using the PC’s USB port. Important features of
UPort products include support for Hi-Speed (480 Mbps) USB 2.0,
Moxa CPU, Moxa UART, and the ability to assign COM port numbers.
These features make Moxa’s UPort products easy to use and
maintain.
The UPort 2000 Series of USB-to-Serial Converter includes the
following models:
• UPort 2210 2-port RS-232 USB-to-Serial Converter
• UPort 2410 4-port RS-232 USB-to-Serial Converter
Before connecting the UPort USB-to-Serial Converters to your
computer’s USB port, we recommend installing the UPort driver
first. To do this, follow the installation procedure described in
Section 3.
The installation procedure described in Section 3 was done on a PC
running Windows XP system. UPort converters can be connected to
any upstream type A USB port that is on the PC host or on an
upstream hub. UPort converters are hot pluggable, and therefore
there is no need to power down your computer prior to installation.
After installing the driver, connect the UPort to an upstream host
or hub. The Found New Hardware wizard will locate the
appropriate drivers automatically. Once the drivers are found,
various windows will pop up as the UPort’s serial port is being
installed.
When the Found New Hardware wizard finishes installing the
UPort, use the operating system’s Device Manager to check and/or
modify the port settings. The new COM port will be listed under
Ports (COM & LPT).
2. Package Checklist
Before installing your UPort, verify that the package contains the
following items:
• UPort 2210 or USB 2410 USB-to-serial converter
• 1 USB cable
• Document and Software CD
• UPort 2000 series Quick Installation Guide
Notify your sales representative if any of the above items are
missing or damaged.

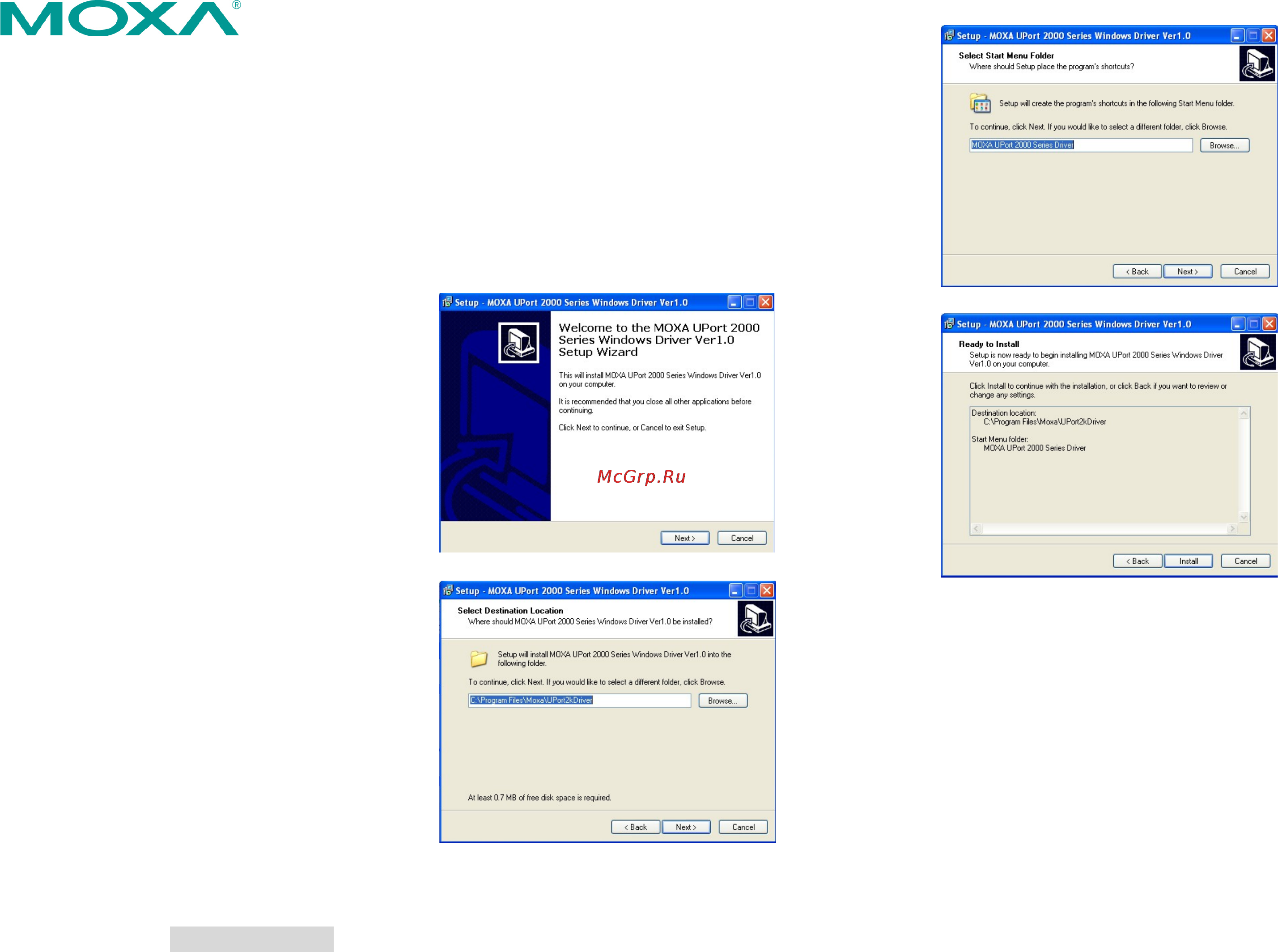

3. Installing the UPort 2000 Series Driver
1. Run the Setup program located on the UPort 2000 Series
Document and Software CD-ROM. Click Next to start installing
the driver.
2. Click Next to install the driver in the indicated folder.
3. Click Install to proceed with the installation.
4. Then click Finish to complete the driver installation.
