Industrial USB

www.moxa.com

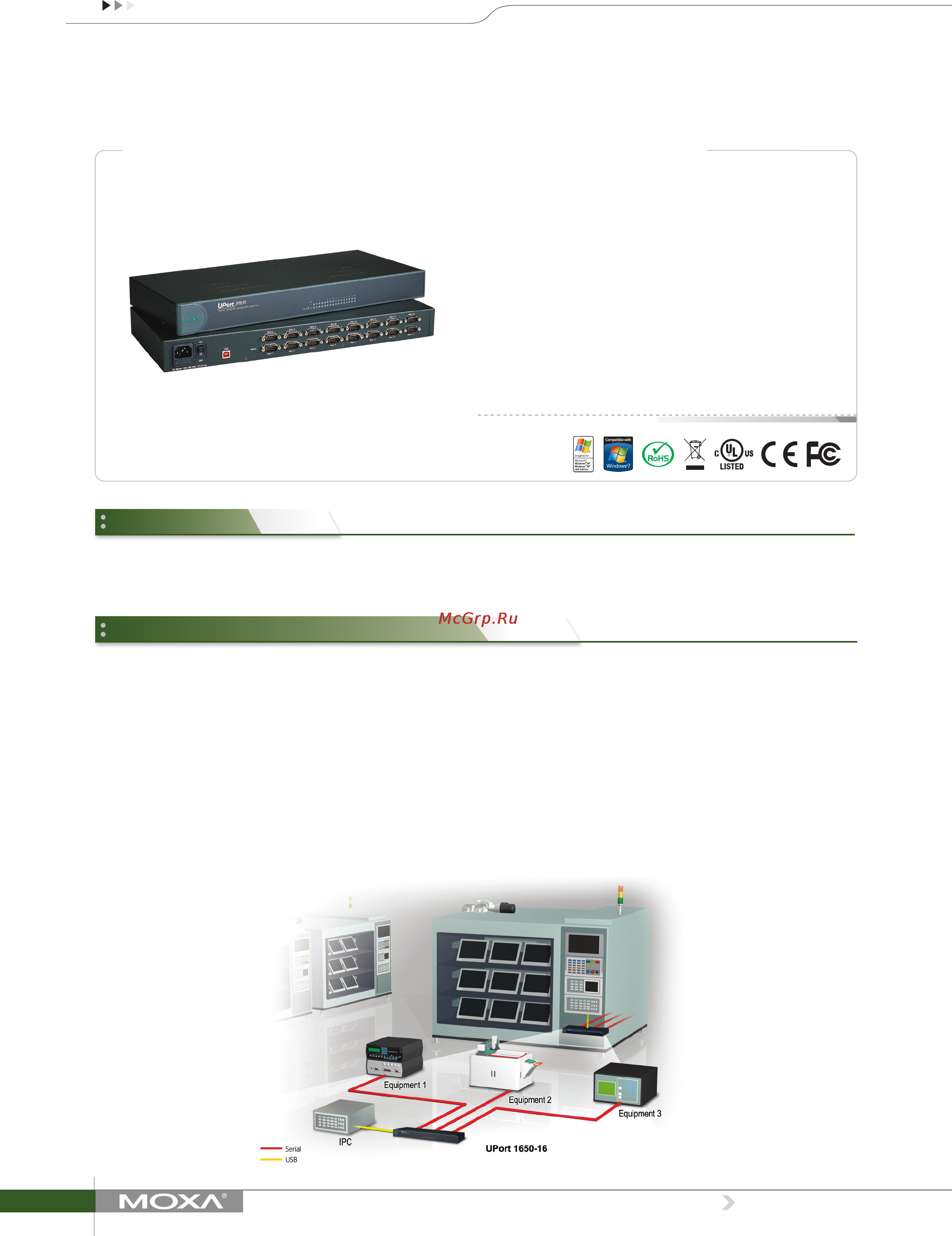

UPort

1600-16 Series

16-port RS-232 and RS-232/422/485 USB-to-serial converters

The UPort® 1600-16 USB-to-serial converters allow you to connect

16 RS-232 or RS-232/422/485 devices to your laptop or workstation

through the USB (Universal Serial Bus) port. The UPort® 1600-16

converters are compatible with new and legacy serial devices, and are

perfect for instrumentation, and manufacturing applications.

Manufacturing TFT-LCD (thin film transistor liquid crystal display)

panels is a complicated and highly technical process. The three major

stages in TFT-LCD panel production are the array, LC cell, and module

assembly processes. In addition, each finished panel must also pass a

series of quality inspection tests, which include defect inspection and

lighting tests. The most challenging part of the TFT-LCD manufacturing

process is achieving zero fault tolerance for high quality and

productivity. One of our customers needed a USB-to-serial solution to

transmit data between a host and quality inspection equipment in the

TFT-LCD manufacturing process. In such a demanding manufacturing

environment, adopting multiple ports and Moxa’s ruggedly designed

UPort® 1650-16 USB-to-serial converter proved to be the best option.

The UPort® 1650-16 has the following features:

• Standard 19-inch rackmount size and metal housing for

industrial-grade requirements

• Up to 16 ports for easy USB-to-serial expansion

• 3-in-1 serial ports for a cost-effective solution

• True USB 2.0 Hi-Speed transmission for greater productivity

• 128-byte FIFO and on-chip hardware and software ﬂow control to

ensure stable data transmission during inspection

• Each serial port has its own LED indicator for easy troubleshooting

Overview

Typical Application—TFT-LCD Manufacturing

› Hi-Speed USB 2.0 for up to 480 Mbps USB transmission

› 921.6 kbps maximum baudrate for super fast data transmission

› 15N high retention USB type B connector

› 128-byte FIFO and on-chip H/W, S/W ﬂow control

› Standard 19-inch rack-mountable

› COM port assignments maintained across different PCs

› Mini DB9 female to terminal block adapter for easy wiring

› Drivers provided for Windows, WinCE, and Linux
