Jet JWP-2510 1791303T [37/39] Parts list top cover assembly

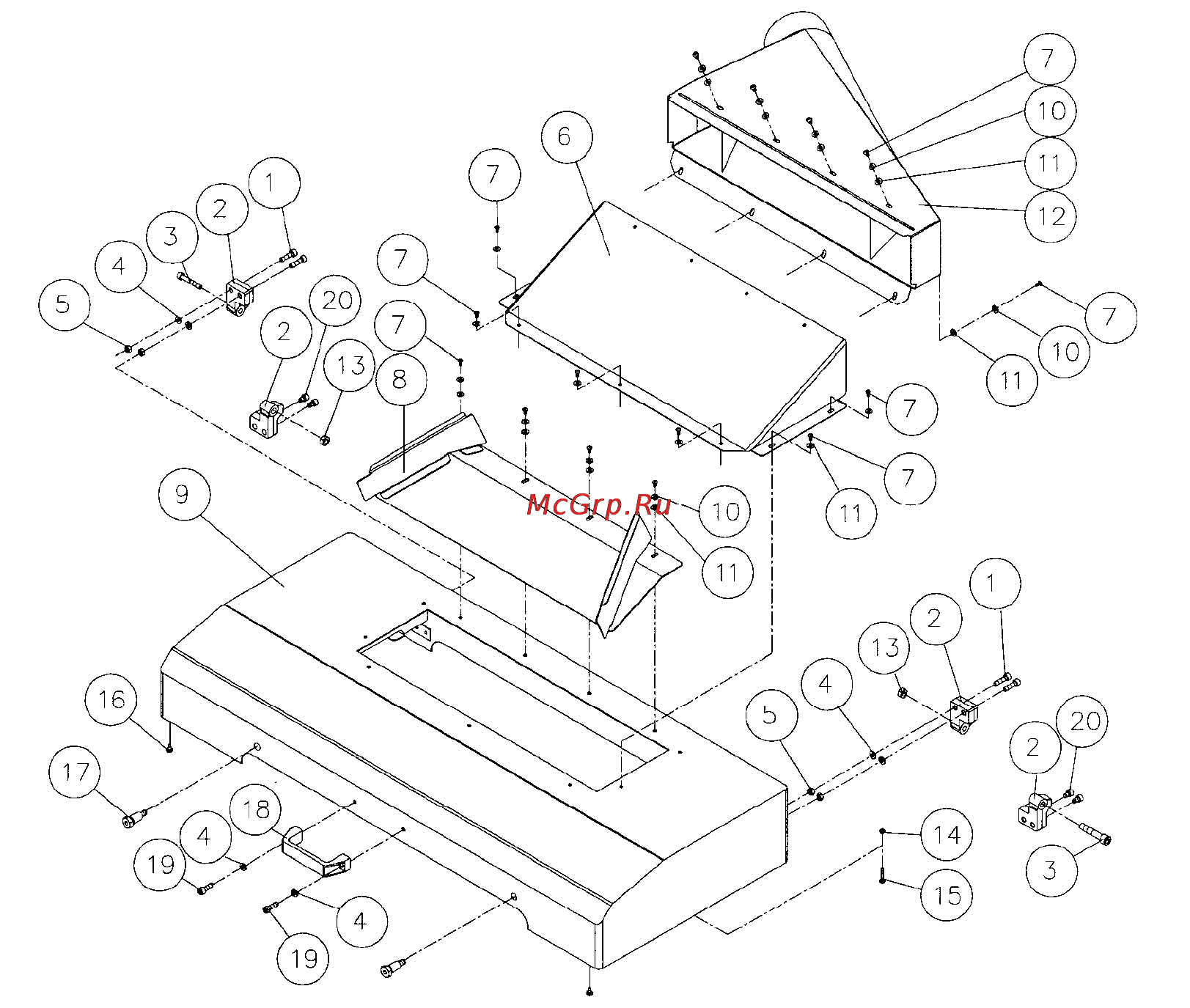

Parts List: Top Cover Assembly

Index No. Part No. Description Size Qty

1 ............... TS-1504061 ............. Socket Head Cap Screw ..................................... M8x30 ......................... 4

2 ............... WP2510-302 ............ Hinge ................................................................... .................................... 4

3. .............. TS-1505111 ............. Socket Head Cap Screw ..................................... M10x70 ....................... 2

4 ............... TS-1551061 ............. Lock Washer ........................................................ M8 ............................... 6

5 ............... TS-1540061 ............. Hex Nut ................................................................ M8 ............................... 4

6 ............... WP2510-306 ............ Upper Cover ........................................................ .................................... 1

7 ............... TS-2246122 ............. Button Head Socket Screw .................................. M6x12 ....................... 19

8 ............... WP2510-308 ............ Deflection Plate .................................................... .................................... 1

9 ............... WP2510-309 ............ Top Cover ............................................................ .................................... 1

10 ............. TS-2361061 ............. Lock Washer ........................................................ M6 ............................. 19

11 ............. TS-1550041 ............. Flat Washer ......................................................... M6 ............................. 19

12 ............. 6012181 ................... Dust Chute ........................................................... .................................... 1

13 ............. TS-1541041 ............. Nylon Insert Lock Nut .......................................... M10 ............................. 2

14 ............. TS-1540031 ............. Hex Nut ................................................................ M5 ............................... 4

15 ............. TS-1481061 ............. Hex Cap Screw .................................................... M5x25 ......................... 2

16 ............. WP2510-316 ............ Pad ...................................................................... .................................... 2

17 ............. 6012190 ................... Shoulder Screw ................................................... .................................... 2

18 ............. 6012189 ................... Handle ................................................................. .................................... 1

19 ............. TS-1504051 ............. Socket Head Cap Screw ..................................... M8x25 ......................... 2

20 ............. TS-1504071 ............. Socket Head Cap Screw ..................................... M8x35 ......................... 4
