Ordering Information

Package Checklist

The UPort™ 200/400 series package should contain the following items. If

any of these items is missing or damaged, please contact Moxa for

replacement.

• 1 UPort 200 or 400 USB hub

• USB Cable: CBL-USBA/B-100

• 100 to 240 VAC power adapter suitable for your region (excluding T

models)

• Wall-mounting kit: WK-35-02 (for UPort 400 models only)

• Quick installation guide (printed)

• Warranty card

Optional Accessories (can be purchased separately)

For the UPort 400 Series:

• DK-UP1200: Flat DIN-rail mount with WK-35-02 (2 wall-mounting

plates) and DK35A (2 DIN-rail plates with 4 screws)

• DK-25-01: Edge DIN-rail mount (25 x 48.3 mm DIN-rail kit with 2

screws)

Hardware Introduction

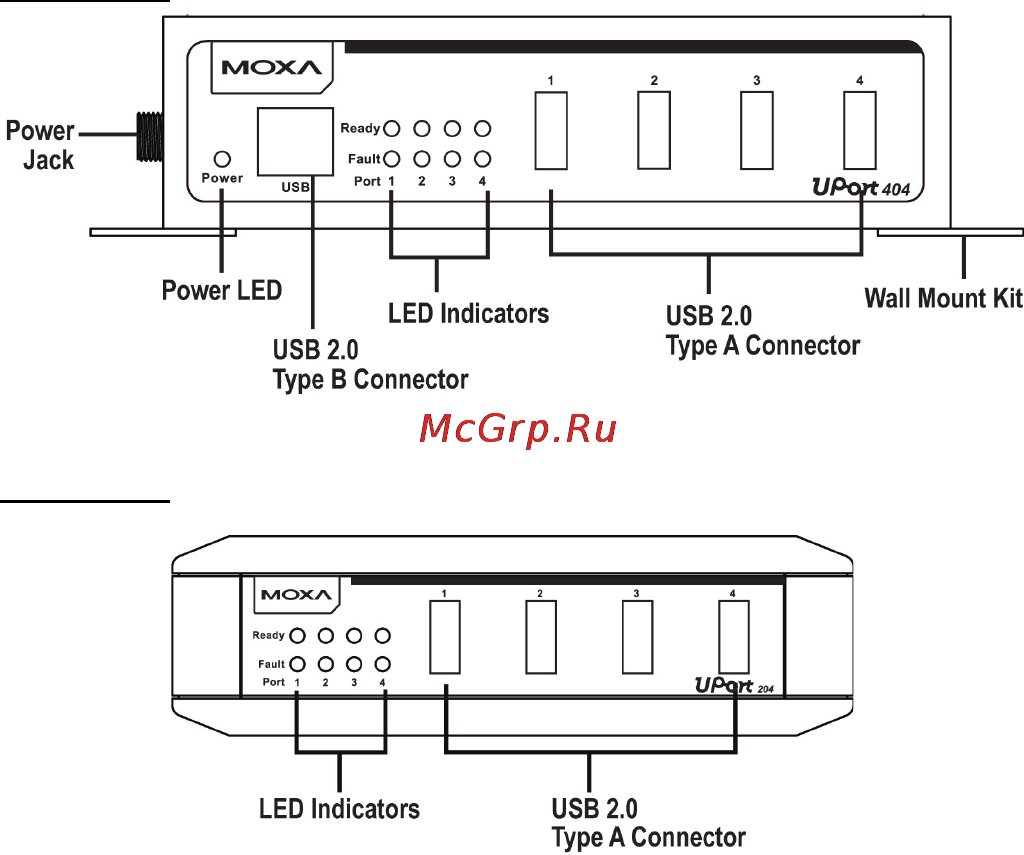

An example of the UPort™ 404 front panel:

Front View

An example of the UPort™ 204 front/back panel:

Front View
