— 4 — — 5 — — 6 —

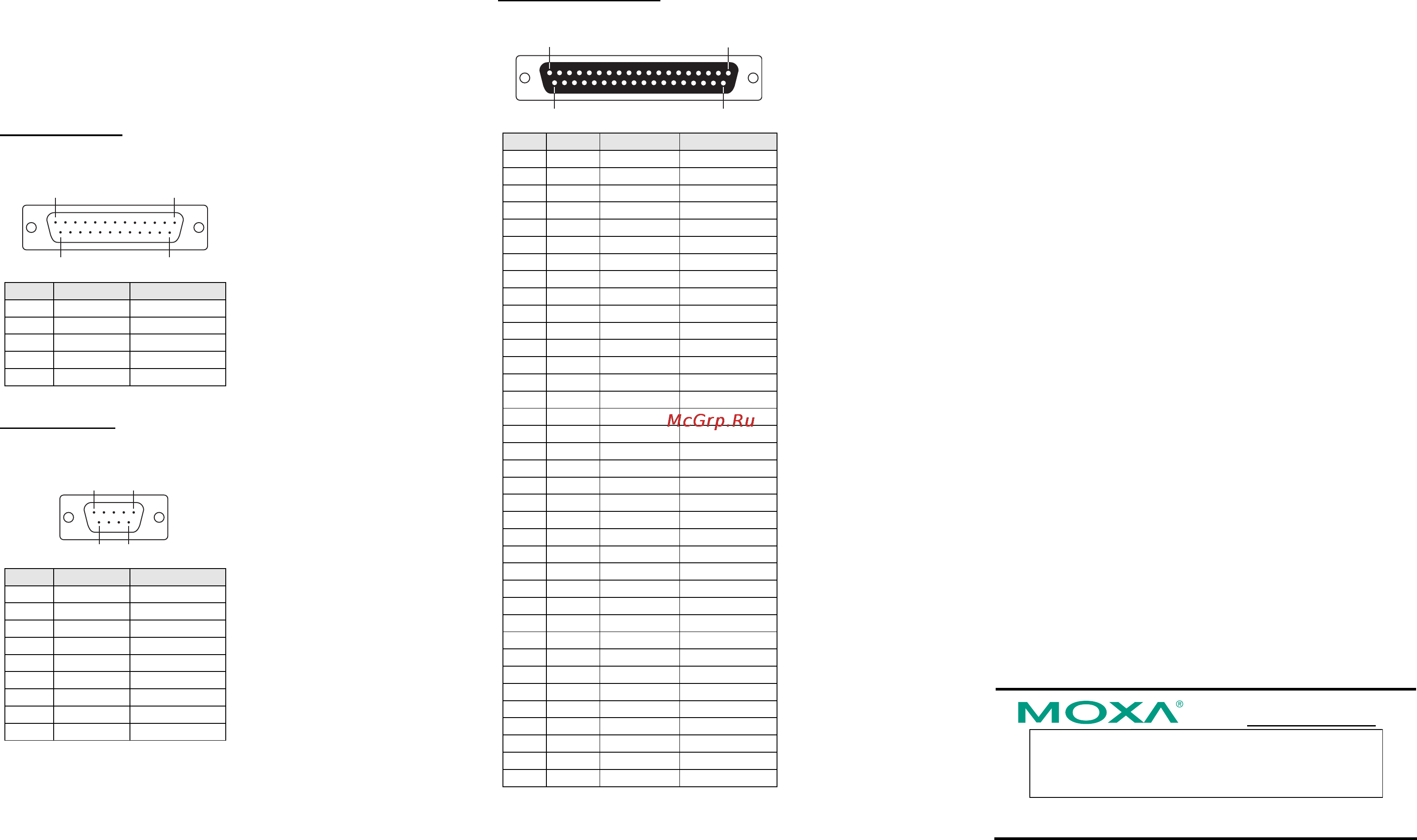

5. Pin Assignments
The CI-134 board has one female DB37 connector on the board. To
connect the board to your serial devices, you may make your own cable,
or use one of the two cables available from Moxa. In the following
figures, we give the pin assignments for the DB37 port on the board, and
the pin assignments for the serial device side of the two connection
options.
CBL-M37M25x4-30
Male DB37 to male DB25 x 4
Male DB25
1
14
13
25
Pin RS-422 2-wire RS-485
2 TxD+(B) Data+(B)
3 RxD+(B) ---
7 GND GND
14 TxD-(A) Data-(A)
16 RxD-(A) ---
CBL-M37M9x4-30
Male DB37 to male DB9 x 4
Male DB9
15
69
Pin RS-422 2-wire RS-485
1 TxD-(A) Data-(A)
2 TxD+(B) Data+(B)
3 RxD+(B) ---
4 RxD-(A) ---
5 GND GND
6 RTS-(A) ---
7 RTS+(B) ---
8 CTS+(B) ---
9 CTS-(A) ---
CI-134 Port (on the board)
Female DB37
119
2037
Pin Port RS-422 2-wire RS-485
1 --- --- ---
2 2 TxD-(A) Data-(A)
3 2 GND/VEE GND/VEE
4 2 CTS+(B) ---
5 2 TxD+(B) Data+(B)
6 3 CTS-(A) ---
7 3 RxD-(A) ---
8 3 RTS-(A) ---
9 3 RTS+(B) ---
10 3 RxD+(B) ---
11 1 TxD-(A) Data-(A)
12 1 GND/VEE GND/VEE
13 1 CTS+(B) ---
14 1 TxD+(B) Data+(B)
15 0 CTS-(A) ---
16 0 RxD-(A) ---
17 0 RTS-(A) ---
18 0 RTS+(B) ---
19 0 RxD+(B) ---
20 2 CTS-(A) ---
21 2 RxD-(A) ---
22 2 RTS-(A) ---
23 2 RTS+(B) ---
24 2 RxD+(B) ---
25 3 TxD-(A) Data-(A)
26 3 GND/VEE GND/VEE
27 3 CTS+(B) ---
28 3 TxD+(B) Data+(B)
29 1 CTS-(A) ---
30 1 RxD-(A) ---
31 1 RTS-(A) ---
32 1 RTS+(B) ---
33 1 RxD+(B) ---
34 0 TxD-(A) Data-(A)
35 0 GND/VEE GND/VEE
36 0 CTS+(B) ---
37 0 TxD+(B) Data+(B)
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
2008 Moxa Inc., all rights reserved.
Reproduction without permission is prohibited.
