Software Installation

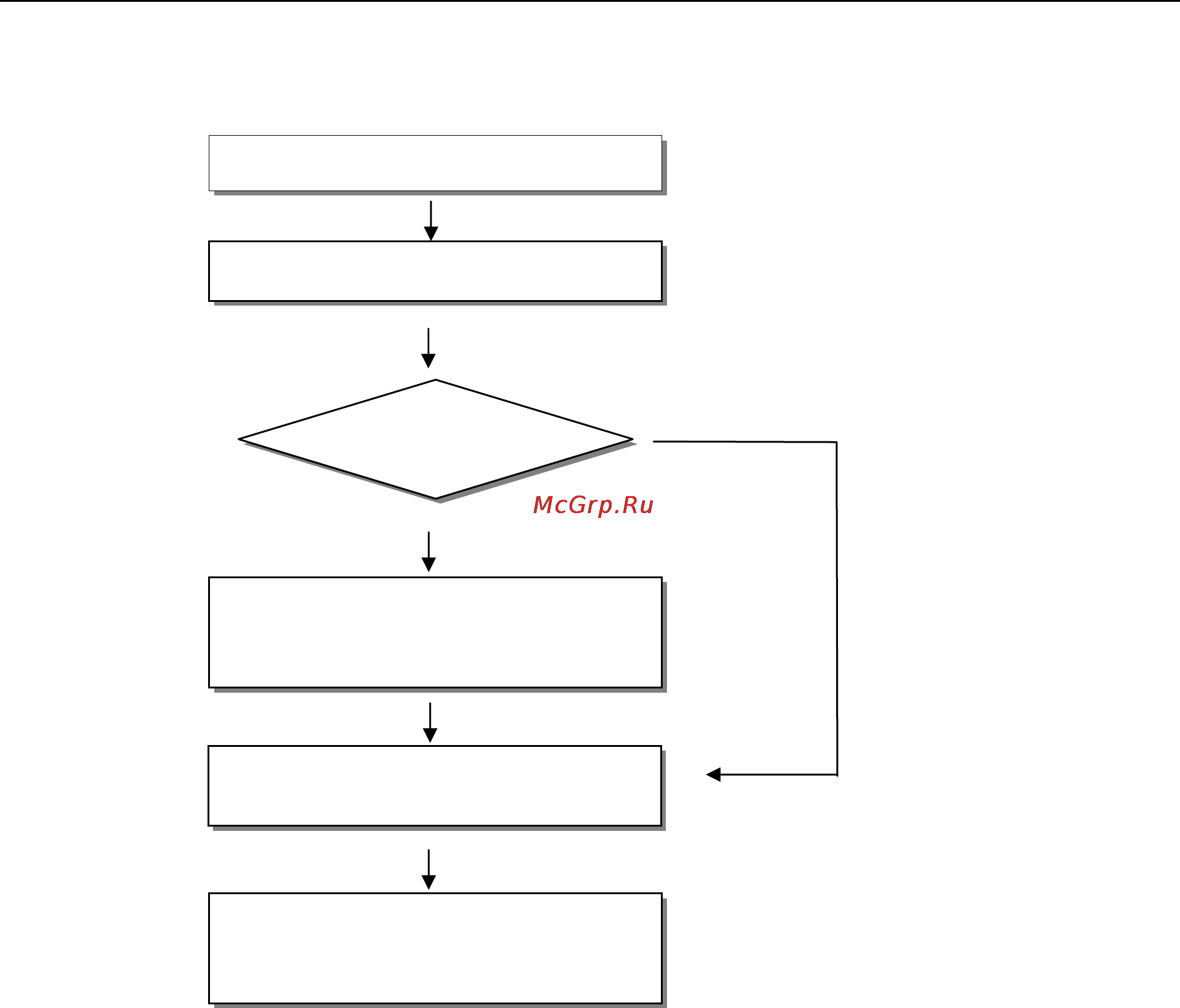

The following flow chart illustrates the driver installation stages of the Industio CP-114 Series
boards. Each stage is detailed later.
See chapter “Hardware
Installation”
Industio CP-114 User's Manual
3-7
Yes
Driver installed before?
No
Install the Industio PCI board in the system
Start Windows 95/98 to detect the board
Install the driver with the diskette
See “First Time Driver Installation
Stage”
Configure the port
See “Port Configuration Stage”
The ports of the Industio CP-114 Series
board are ready to work.
See “Board and Port Ready Stage”
First Time Driver Installation Stage
This stage presents the steps for installing the driver for the very first time with the first Industio
CP-114 Series board. The installation of the Industio CP-114 Series board for Windows 95 and
Windows 98 differs slightly and will be described in two columns. Follow the steps in the left or
right column for Windows 95 or 98, respectively.
1. Upon detecting the first new Industio CP-114 Series board, Windows 95/98 will
automatically show a “New hardware found” message box, and then display the following
dialog box. Click on the [Next>] button.
