Moxa CP-114-DB9M [21/47] Configuring board and port
![Moxa CP-114-DB9M [21/47] Configuring board and port](/views2/1198478/page21/bg15.png)
Software Installation
Industio CP-114 User's Manual
3-13
Configuring Board and Port
If you already have installed the driver and want to re-configure the COM number for the ports
under Windows 95/98, follow this procedure.

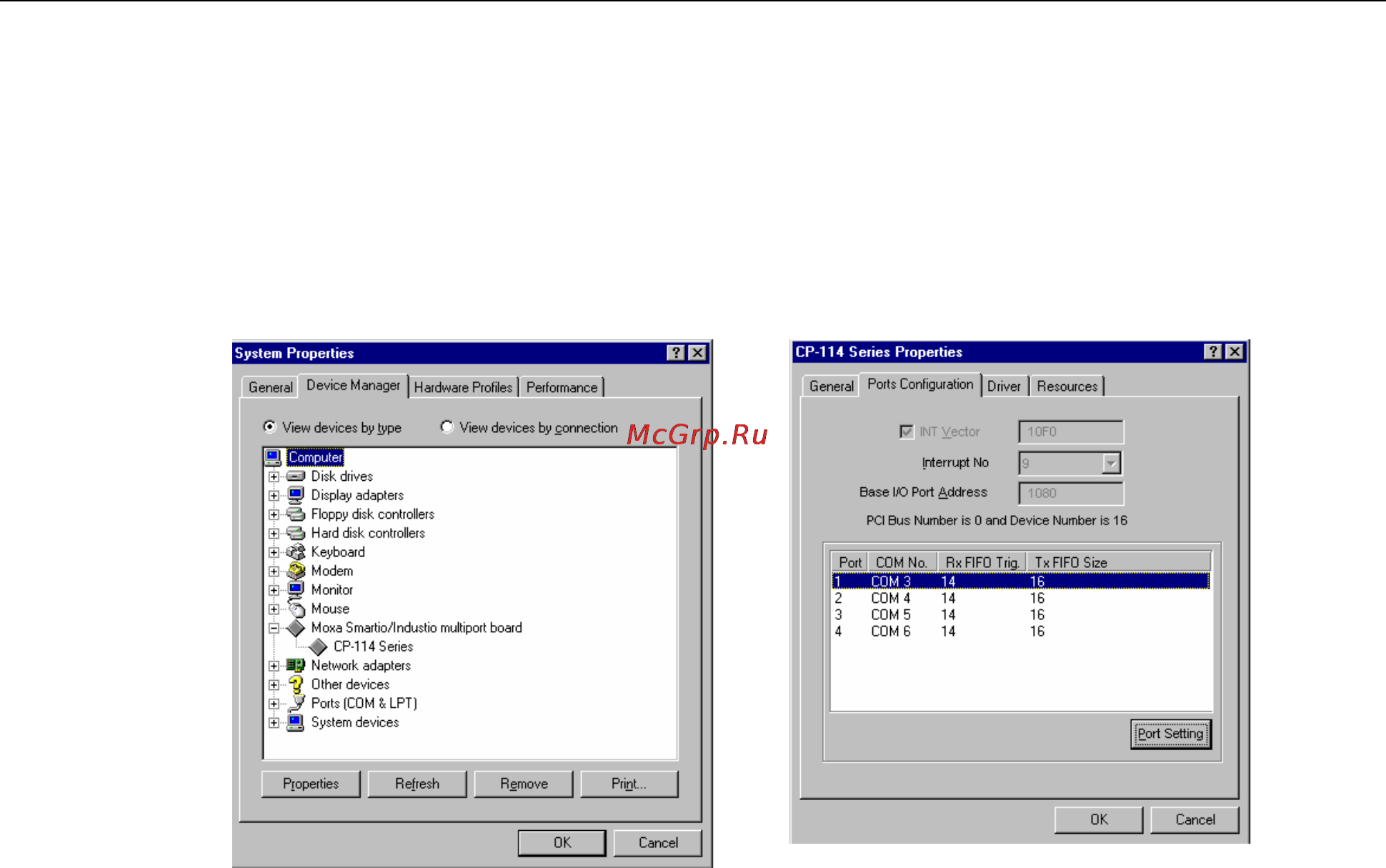

1. Open the [Control Panel], click on the [System] icon, select the [Device Manager] tab, and
then [Moxa Smartio/Industio multiport board]. Select the desired [CP-114 Series] entry,
click on the [Properties] button and select the [Ports Configuration] tab.
Î
2. Assign the desired COM number for the Industio CP-114 Series port mapping or FIFO settings,
detailed in the stage, “Port Configuration Stage”, of the previous section, “Installing Driver”.
3. Restart the system to activate the latest configuration.
