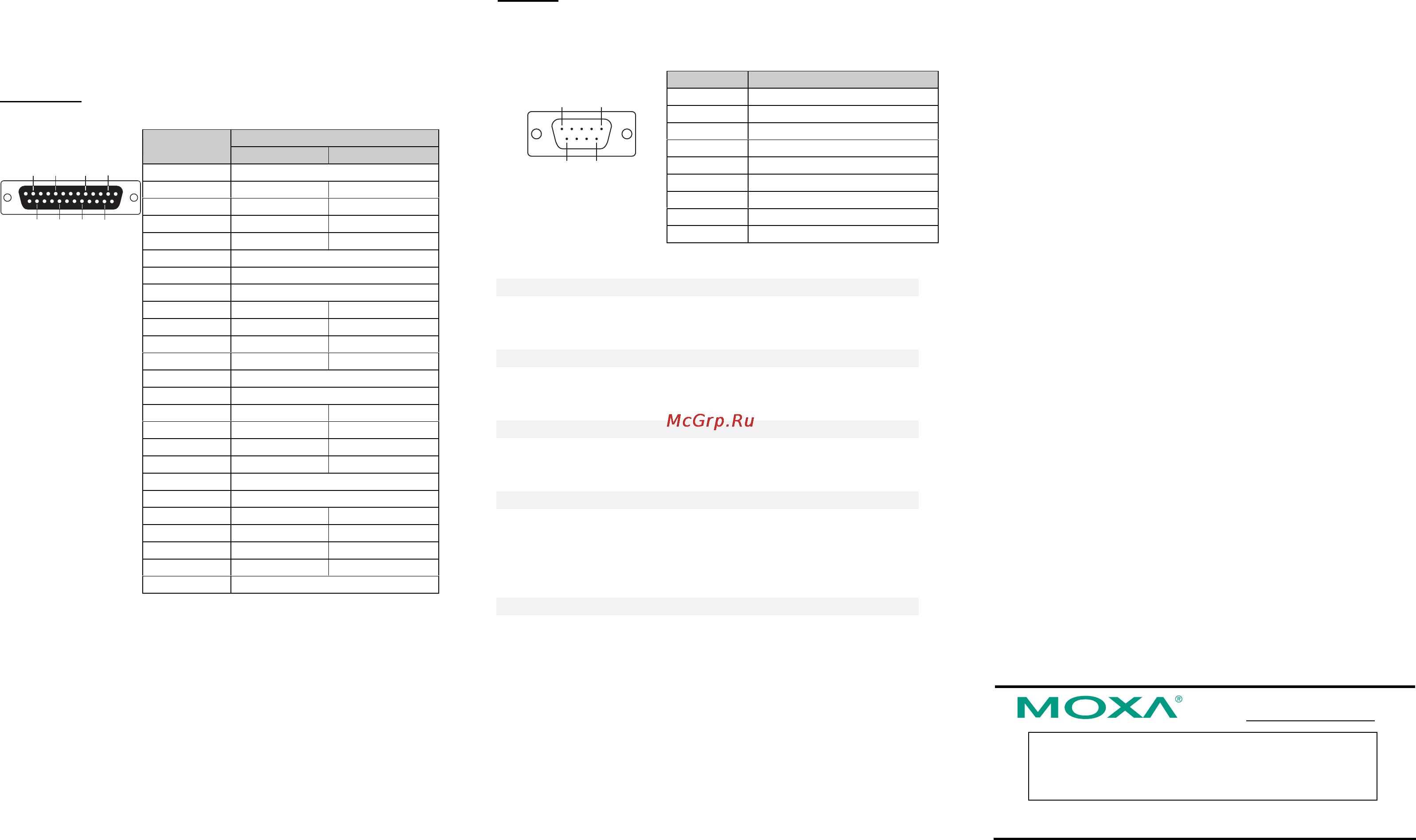

5. Pin Assignments
CP-102EL has one female DB25 connector on the board, and CP-102E
has two male DB9 connectors on the board. In this section, we give the
on-board connectors, pin assignments, and male DB9 pin assignments
for the cable CBL-M25M9x2-50 used with CP-102EL.
Female DB25
y CP-102EL on-board connector
Female DB25
12
24
Port 0
Port 1
259
151821
RS-232 Signals
Pin Number
Port 0 Port 1
1 ---
2 DCD
3 GND
4 CTS
5 RxD
6 ---
7 ---
8 ---
9 DTR
10 DSR
11 RTS
12 TxD
13 ---
14 ---
15 DTR
16 DSR
17 RTS
18 TxD
19 ---
20 ---
21 DCD
22 GND
23 CTS
24 RxD
25 ---
Male DB9
y CP-102E on-board connector (2 connectors, for Port 0 and 1)
y Device-side connector for cable CBL-M25M9x2-50 (for
CP-102EL)
Male DB9
15
69
Pin Number RS-232 Signals
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 ---
6. Specifications
Hardware
Connectors CP-102E: DB9 male x 2
CP-102EL: Female DB25
Comm. Controller 16C550C compatible
Interface
Bus Interface PCI Express x 1
Number of Ports 2
Max No. of Boards 4
Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
Baudrate 50 bps to 921.6 Kbps
Configuration
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
I/O address/IRQ BIOS assigned
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
Environmental Limits
Operating Temperature 0 to 55°C (32 to 132°F)
Operating Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)
ESD Protection Embedded 15 KV ESD Protection
Regulatory Approvals EN55022, EN55024, EN61000-3-2,
EN61000-3-3, EN61000-6-2, IEC-61000-4-2,
IEC 61000-4-3, IEC 61000-4-4,
IEC 61000-4-5, IEC 61000-4-6,
IEC 61000-4-8, IEC 61000-4-11,
FCC Part 15 Class B
Warranty 5 years
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
© 2008 Moxa Inc., all rights reserved.
Reproduction without permission is prohibited.
